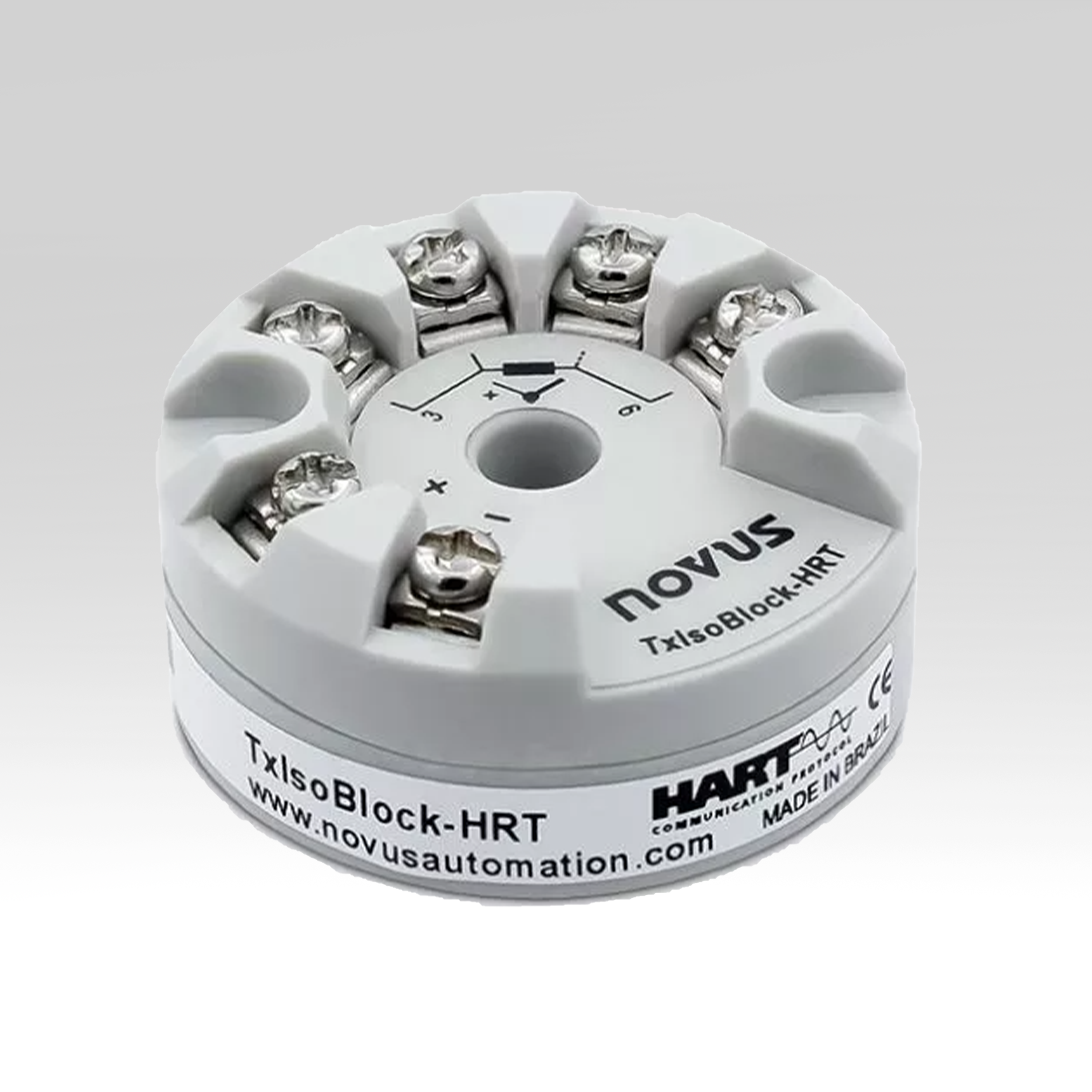

TxIsoBlock-HRT Temperature Transmitter
Features:
✔ HART® Protocol Compatibility: Supports HART® communication over the 4-20 mA current loop
✔ Electrical Isolation: Input and output are electrically isolated (1.5 kVrms)
✔ High Accuracy: ±0.15% of span for thermocouples, ±0.08% for Pt100.
✔ Cold Junction Compensation: Improves thermocouple accuracy.
✔ Remote Configuration: Configurable via SigNow software, TxConfig II software, or SigNow app.
✔ Loop-Powered 4-20 mA Output: Provides linearized output proportional to input.
✔ Fast Response Time: Typical response time of 6 seconds.
The resilience of NOVUS devices and the established quality of HART® certification are combined in the temperature transmitter TxIsoBlock-HRT. The transmitter supports voltage spikes up to 1.5 kVrms and offers electrical isolation between input and output. It is compatible with devices that have earned the HART® certification. The main difference is that it has two 4-20 mA current loop wires for total configuration, which means more functionality for monitoring and device setting.
The TxIsoBlock-HRT Temperature Transmitter from NOVUS combines robust industrial design with advanced HART® protocol communication, making it an ideal solution for precise temperature measurement and smart device integration.
Key Features:
-
HART® Certified: Supports HART V7 and is backward compatible with HART V5, enabling two-way digital communication over the standard 4-20 mA current loop.
-
Electrical Isolation: Provides 1.5 kVrms isolation between input and output, protecting against voltage surges and ensuring signal integrity.
-
Universal Input: Compatible with a wide range of sensors including thermocouples (J, K, T, N, R, S, B, E), RTDs (Pt100, Pt1000), NTC thermistors, and 0-50 mV signals.
-
High Accuracy: Typical accuracy ranges from 0.07% to 0.2% of span depending on sensor type, ensuring reliable measurements.
-
Output: Standard 4-20 mA current loop with high resolution (0.25 µA).
-
Robust Design: Operates in harsh environments with a temperature range of -40 to 85 °C and humidity up to 90% RH.
-
Configuration: Easily configured via HART-certified handheld devices or TxConfig II software using the TxConfig-HRT adapter.
-
Certifications & Compliance: CE, NAMUR NE43, RoHS, REACH, and electromagnetic compatibility standards (CISPR 11, EN 61000 series).
Applications:
-
Industrial automation and process control systems requiring reliable, isolated temperature measurement.
-
Critical processes in chemical, pharmaceutical, and food industries where precision and communication flexibility are essential.
-
Harsh environments needing robust surge protection and stable operation.
Technical Highlights:
-
Power Supply: Loop powered (8.5 – 36 Vdc)
-
Enclosure: Durable PA66 plastic, head-mounted format for easy installation
-
Thermal Drift: Less than 0.05% per 25 °C
The TxIsoBlock-HRT is a smart, isolated temperature transmitter designed for modern industrial applications, combining the proven reliability of NOVUS hardware with the flexibility of HART communication technology.
Technical Data
Technical Specifications
Part Code
8808000300
Input Type
J, K, T, N, R, S, B, E, Pt100, Pt1000, NTC and 0-50 mV
Accuracy Typical
Pt1000 / mV: 0.07 % span, Pt100: 0.08 % span, T/C: 0.07 % span ±1 °C (1.8 °F), NTC: 0.2 °C (0.36 °F)
Maximum
Pt1000 / mV: 0.15 % span , Pt100: 0.15 % span , T/C: 0.15 % span ±1 °C (1.8 °F) , NTC: 0.45 °C (0.81 °F)"
Output Type
4-20 mA
Output Resolution
0.25 µA
Thermal Drift
< 0.05 % / 25 °C (77 °F)
Isolation Input-Output
1.5 kVrms
Electric Protection
Reverse Polarity
HART® Version
HART V7, compatible with HART V5
Configuration Interface
Through TxConfig-HRT adapter or HART® certified HandHeld
Configuration Software
TxConfig II
Approvals / Regulations
CE, NAMUR NE43, RoHS, Reach, HART®
Operating Conditions
-40 to 85 °C (-40 to 185 °F) | 0 to 90% RH
Power Supply
4-20 mA Loop Powered (8.5 - 36 Vdc)
Enclosure
PA66
Format / Mounting
Head Mount
APPLICATIONS
Applications of TxIsoBlock-HRT Temperature Transmitter
The TxIsoBlock-HRT temperature transmitter is ideal for industrial applications that require precise, reliable, and isolated temperature measurement with smart communication capabilities. Key applications include:
-
Process Automation: Integration with control systems in industries such as chemical, pharmaceutical, and food processing where accurate temperature control is critical.
-
Harsh Industrial Environments: Suitable for environments with electrical noise and voltage surges, thanks to its 1.5 kVrms input-output isolation and robust design.
-
Smart Field Devices: Enables two-way communication using the HART® protocol, allowing remote configuration, diagnostics, and monitoring in process plants.
-
Critical Temperature Monitoring: Perfect for applications demanding high accuracy and stable measurements over wide temperature ranges (-40 to 85 °C).
-
Energy and Utilities: Used in power plants and utility monitoring systems where reliable and isolated temperature signals are essential for safety and efficiency.
Supply/ Delivery Scope
- TxIsoBlock-HRT head-mounted temperature transmitter
- User manual and technical documentation
- Configuration interface (TxConfig-HRT) and software sold separately
- Sensors, mounting accessories, and cables are not included and must be ordered separately
