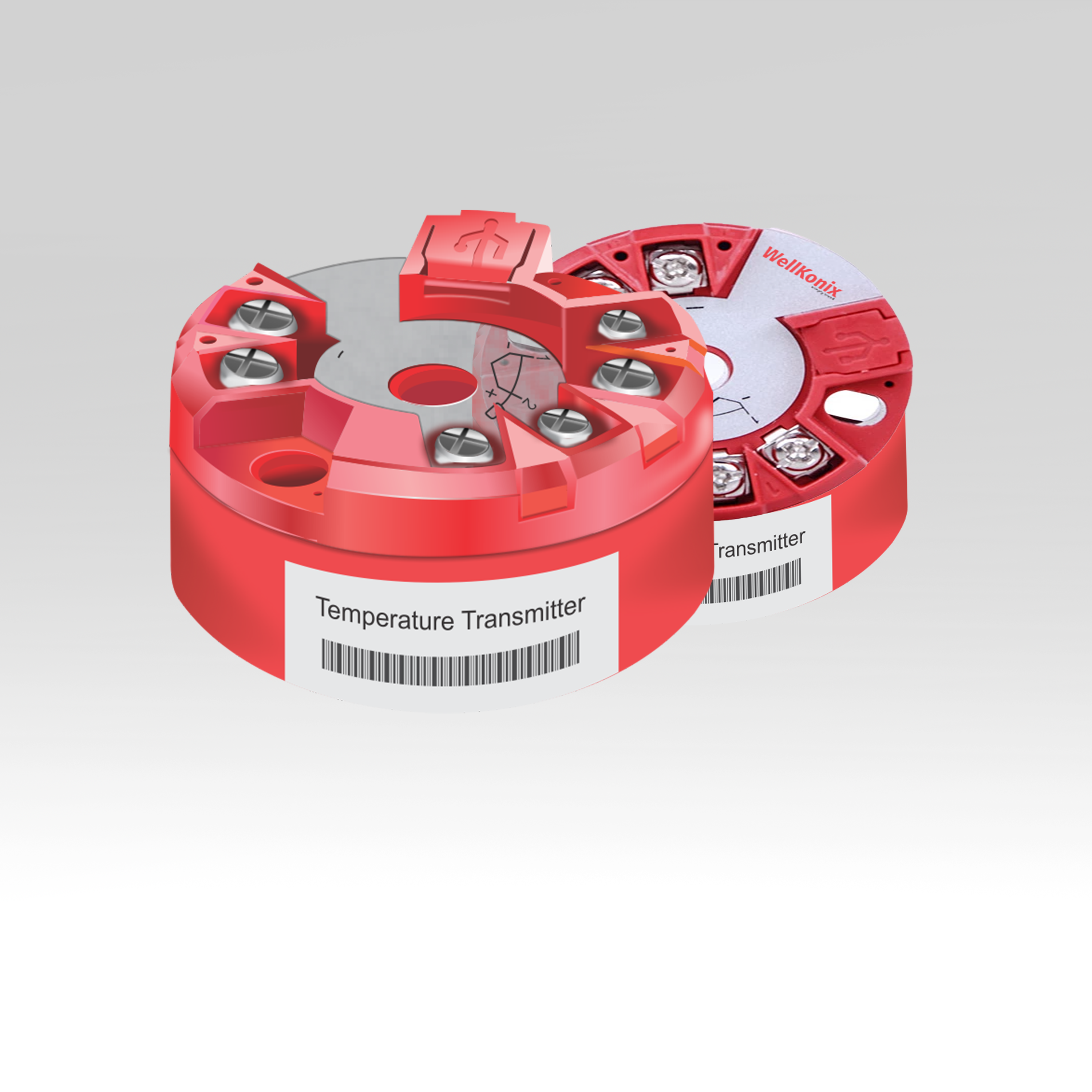

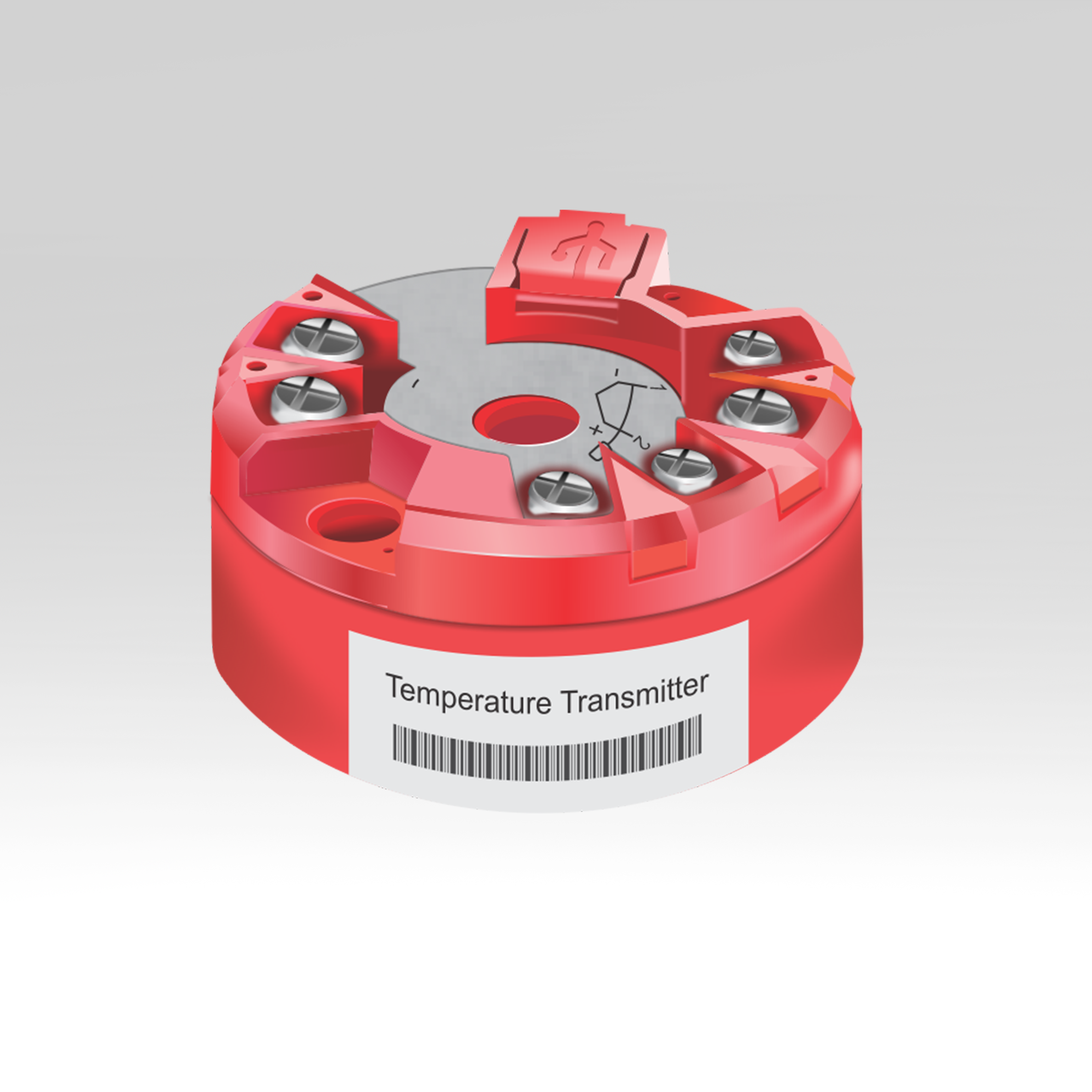

Temperature Transmitter WTT100
Features:
✔ Chemical processing plants, refineries, and petrochemical facilities.
✔ Food and beverage industry, including in brewing, distilling, and baking applications.
✔ Pharmaceutical manufacturing, including in drug production and storage.
✔ HVAC systems, including in buildings, hospitals, and laboratories.
WTT100 Head Mounted Smart Temperature transmitter can be used with multiple sensor type [Resistance Thermometer(RTD),Thermocouple (TC)] inputs, is simple to install with improved measurement accuracy over wire-direct solutions.
Temperature Transmitter WTT100
Many different industries utilize temperature transmitters extensively for applications involving temperature measurement and control. Compared to other temperature monitoring devices, they have a number of benefits, including excellent accuracy and dependability. The following are some of the main characteristics and benefits of temperature transmitters: High precision: Temperature transmitters provide extremely precise temperature readings, frequently with an accuracy of ±0.1°C or higher. Remote sensing: Temperature Transmitter WTT100 can be utilized in dangerous or difficult-to-reach locations since they can detect temperatures remotely. Digital communication: It is simple to integrate temperature transmitters with process control systems because to the availability of digital communication protocols including Profibus, Foundation Fieldbus, and HART. Self-diagnostic features: Certain temperature transmitters are equipped with self-diagnostic features that can identify problems like sensor drift or signal deterioration and notify operators of possible issues before they become serious ones.
The following are some particular uses for temperature transmitters:
Petrochemical facilities, refineries, and chemical processing plants.
Uses in the food and beverage sector, including as baking, distilling, and brewing.
Manufacturing of pharmaceuticals, including the creation and storage of drugs.
HVAC systems, such as those found in hospitals, labs, and buildings.
Measurement and regulation of temperature in boilers and turbines used in power plants.
Technical Data
Technical Specifications
Output signal
4-20mA
Load resistance
RL≤(U-10)/0.021
Output current of upper and
lower limit overflow alarm
IH=21 mA, IL=3.8 mA
Power supply
(12-40)VDC
Response time
Reach to 90% of the final value for 1s
Used environmental temperature
-40~80℃
Storage temperature
-40~100℃
APPLICATIONS
Applications of the WTT100 Temperature Transmitter
The WTT100 Temperature Transmitter is a versatile, programmable device designed for accurate and reliable temperature measurement and signal transmission in a wide range of industrial environments. Its compatibility with multiple sensor types (RTD, thermocouple, and linear resistance), robust 4-20mA output, and fast response make it ideal for the following applications:
-
Industrial Process Control
Monitors and transmits temperature data in manufacturing lines, chemical plants, refineries, and power generation facilities to ensure stable and efficient process operations. -
Remote and Hazardous Area Monitoring
Enables temperature measurement in hard-to-reach or hazardous locations, reducing the need for direct human intervention and enhancing workplace safety. -
HVAC and Building Automation
Integrates with building management systems to provide precise temperature control for heating, ventilation, and air conditioning, optimizing energy consumption and indoor comfort. -
Food & Beverage and Pharmaceutical Industries
Maintains strict temperature control during production, storage, and transportation to meet quality and safety standards in sensitive environments. -
Energy and Utilities
Used in power plants, substations, and renewable energy installations to monitor critical equipment temperatures and prevent overheating or failures. -
Laboratory and Research Facilities
Provides high-precision temperature measurement for experiments, calibration, and quality assurance processes. -
Water and Wastewater Treatment
Ensures optimal temperature conditions in treatment processes, supporting regulatory compliance and process efficiency
Downloads
Product Brochures
➤ Technical Datasheet- Temperature Transmitter WTT100
➤ Technical Manual- Temperature Transmitter WTT100
