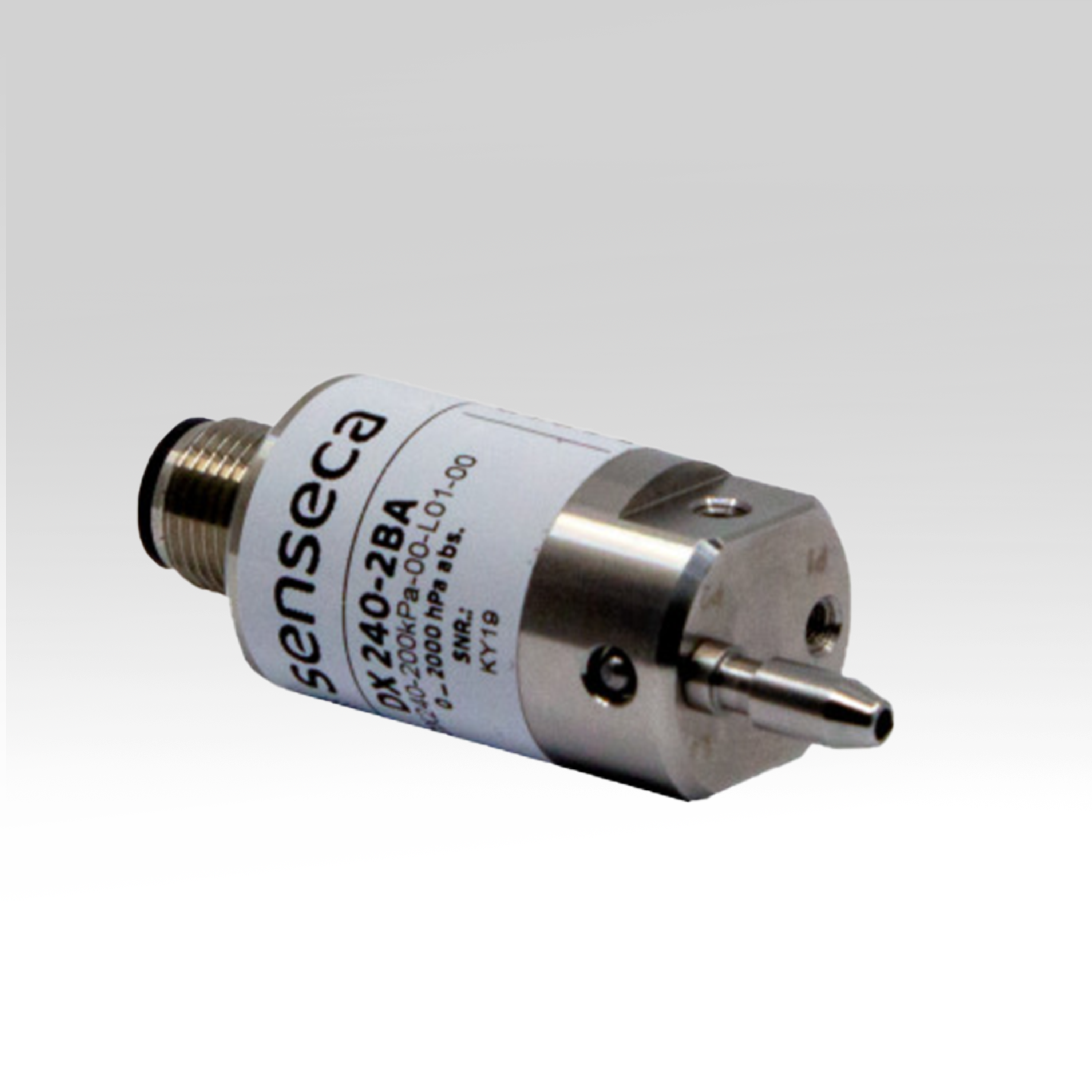

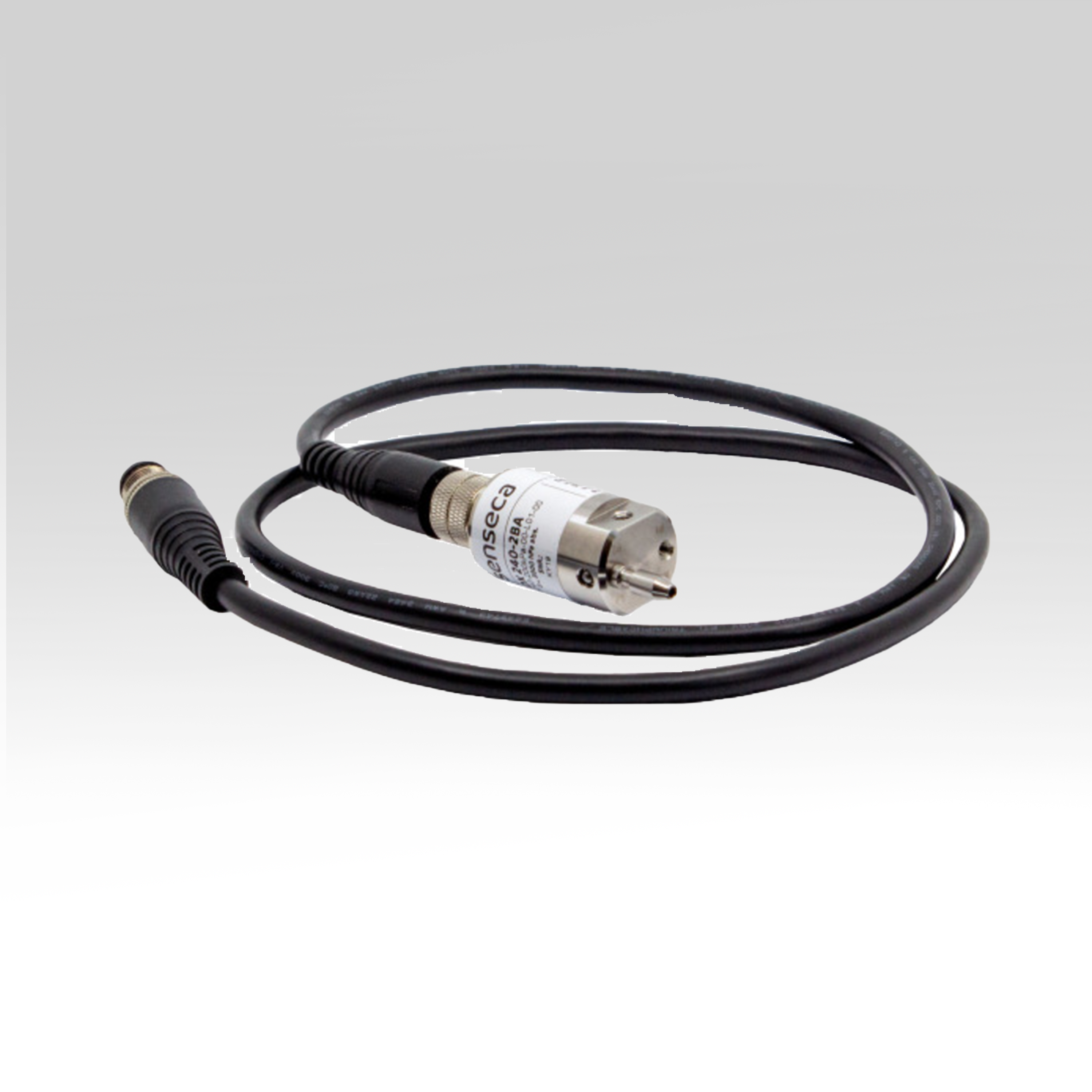

DX240 – Digital Absolute Pressure

DX240 – Digital absolute pressure sensor with hose connection for gases (e.g. for PRO Dxx)

DX 210 and DX 240 are series of miniature digital absolute and differential pressure probes for the PRO D01 / PRO D05 handheld meters.

Different ranges available:

• DX 210-2.5hPa-00-L1-00: ±2.5 hPa differential
• DX 210-20hPa-00-L1-00: ±20 hPa differential
• DX 210-500hPa-00-L1-00: ±500 hPa differential
• DX 210-200kPa-00-L1-00: ±200 kPa differential
• DX 210-700kPa-00-L1-00: ±700 kPa differential
• DX 240-200kPa-00-L1-00: 0…200 kPa absolute

The measurement is temperature compensated for enhanced accuracy. The probes are supplied factory-calibrated, and they are ready to use. The probes can be optionally supplied with a DAkkS/ACCREDIA calibration certificate. The calibration data are stored in the probe, allowing for interchangeability without the need for recalibration. Equipped with 4-pin M12 connector.
The DX240 is a compact and highly precise digital absolute pressure sensor specifically designed for measuring gas pressures in controlled environments. Featuring a hose connection port and digital output, it seamlessly integrates with gas analysis systems such as the PRO Dxx series. Its rugged design and advanced electronics ensure accurate, stable measurements in demanding applications.

Key Features:

• Absolute Pressure Measurement: Measures pressure relative to a perfect vacuum, ensuring highly accurate and stable readings.

• Hose Connection: Designed for easy and secure tubing connection, ideal for gas sampling systems.

• Digital Output Interface: Supports standard digital interfaces (e.g., UART/I²C/RS485) for real-time data transfer and integration.

• Compact & Durable: Small form factor with robust housing for industrial environments.

• High Accuracy & Stability: Factory calibrated for gas pressure monitoring with minimal drift.

• Temperature Compensation: Internal compensation for accurate readings across wide temperature ranges.

• Low Power Consumption: Optimized for portable, battery-operated measurement systems.
