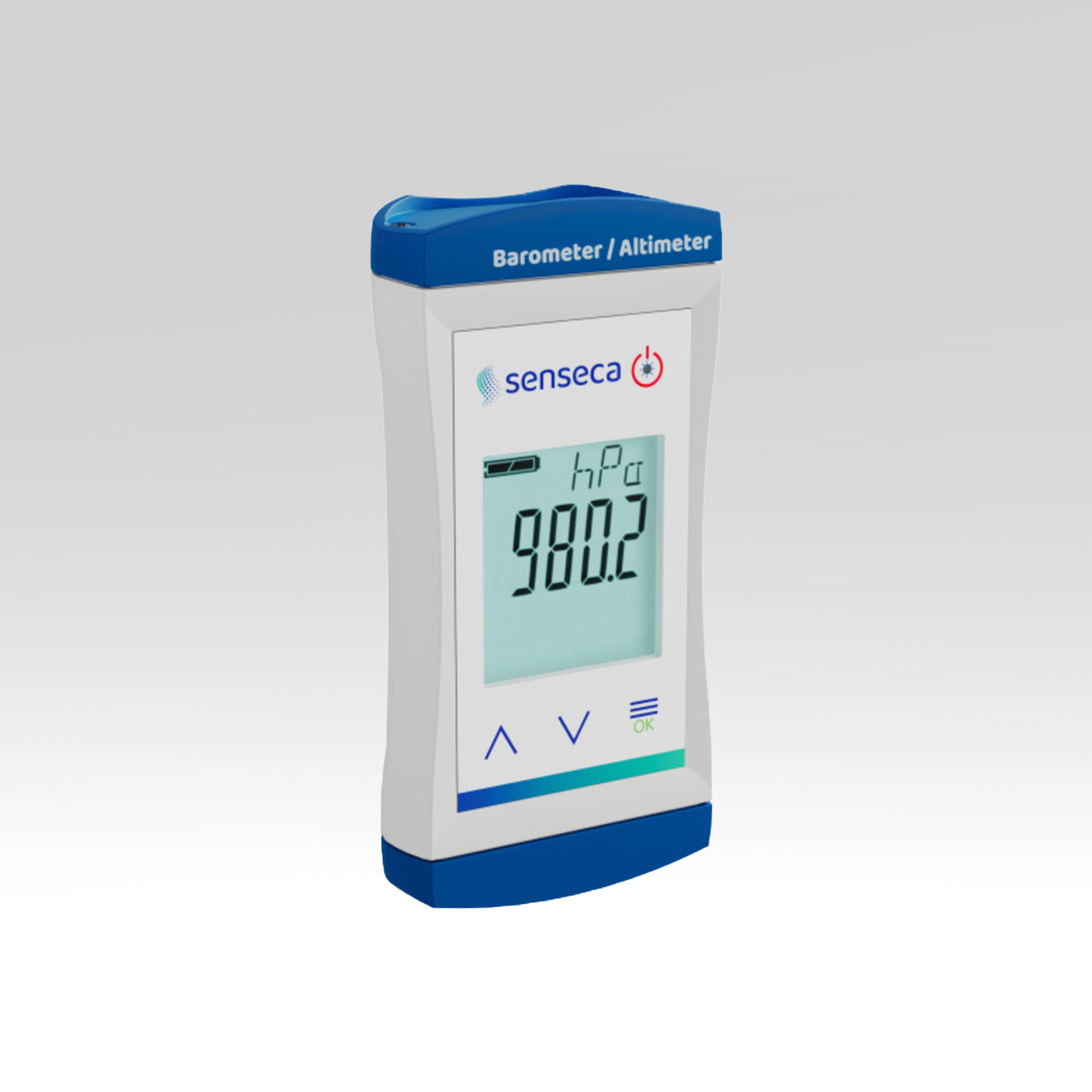

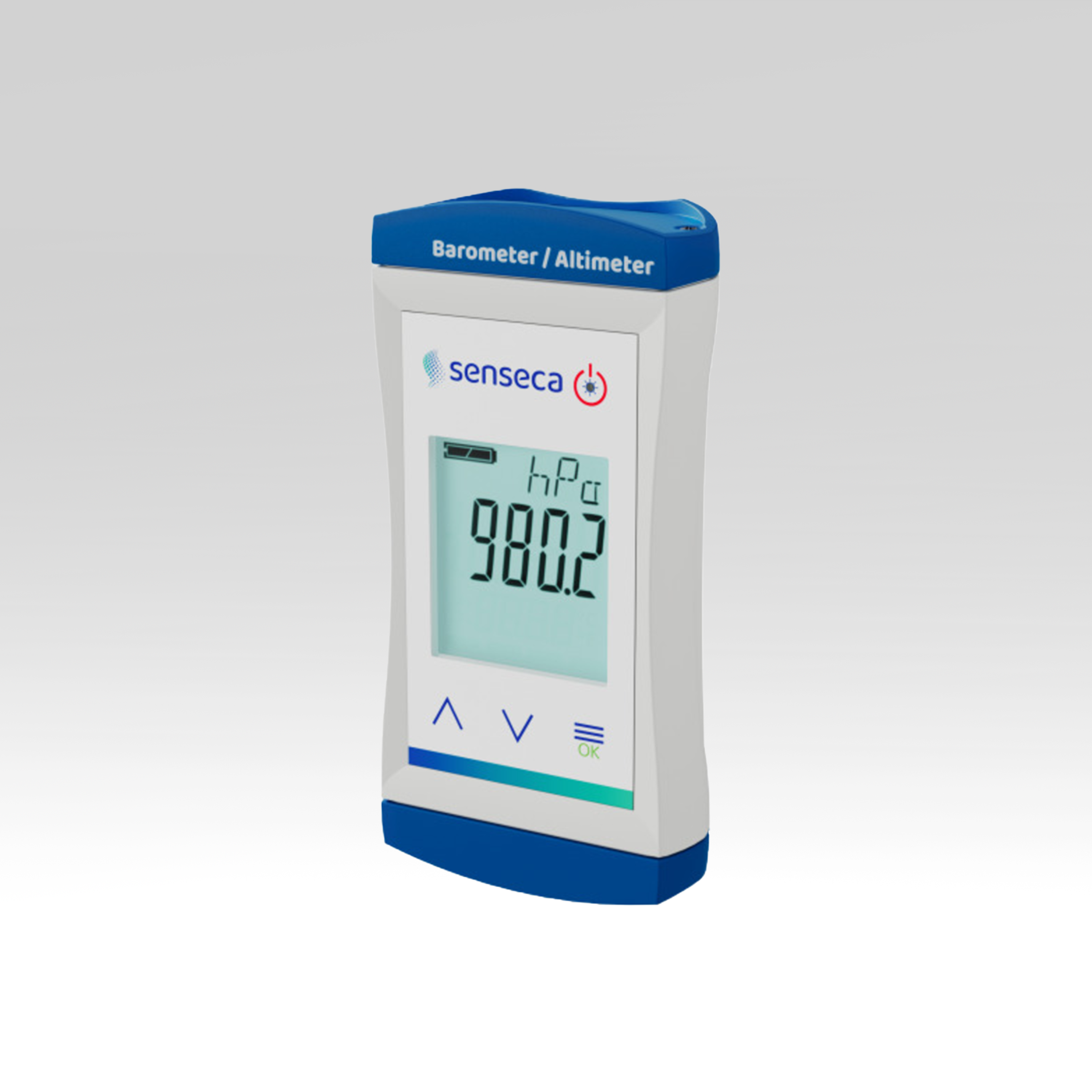

ECO 230 – Barometer, Altimeter
Features:
✔ Modern and functional housing
✔ Waterproof (IP65 / IP67)
✔ High resolution and accuracy for ambient pressure an altitude
✔ Adjustable sea level correction
✔ Altimeter function with convenient height adjustment
✔ Robust, long battery life
✔ Backlight
The primary focus in the development of the new ECO-line was placed on the essential functions of the measurement technology.
The heart of the instrument – the sensor – is a high-class component – which excels in this instrument class.
The high reliability, speed and precision of the ECO-line variants, packed in a compact and water protected housing makes the instruments an ideal partner of industry and craft sector, Made in Germany.
ECO 230 – Precision barometer, Altimeter (formerly G 1110)
The primary focus in the development of the new ECO 230 – Barometer, Altimeter ECO-line was placed on the essential functions of the measurement technology.
The heart of the instrument – the sensor – is a high-class component – which excels in this instrument class.
The high reliability, speed and precision of the ECO-line variants, packed in a compact and water protected housing makes the instruments an ideal partner of industry and craft sector, Made in Germany.
ECO 230 – The reference class in pocket size.
For fast measurements in meteorology, aviation and motor sports, hiking, cycling and many more.
Fast, precise and high resolution:
Resolution 0.1 hPa (mbar) and resolution of the altitude display derived from pressure 0.1 m!
As a reference for countless devices with integrated barometric sensor.
Barometric sensors are used in countless applications: examples are vehicles with combustion engines (air pressure as an important parameter for engine control), altimeters (calculation of altitude using barometric altitude formula), navigation systems, smartphones and of course in weather stations.
But is the absolute pressure displayed correct?
Thanks to optional calibration certificates the barometer can serve as a perfect reference instrument for checking the actual accuracy of corresponding devices
Technical Data
Technical Specifications
Power consumption
ca. 0.4 mA (without backlight, SLO), with backlight: ca. 2.4 mA
Power supply
2 x AA-Alkaline batteries (scope of delivery)
Measuring
Absolute pressure
Measurement rate
Slow: Ca. 1 measurement per second,
Fast: 10 measurements per secondWeight
140 g incl. battery
Measuring range
Barometer:
300.0 ... 1100.0 hPa (mbar) abs.
4.350 ... 15.950 PSI abs.
225.0 ... 825.0 mmHg (Torr) abs.
Altimeter:
-500.0 ... 9000.0 m
-1640 ... 19999 ft
Temperature:
-20.0 ... 50.0 °C
-4.0 ... 122.0 °FOperating conditions
-20 ... +50 °C (recommended 5 ... 30 °C); 0 ... 95 % r.h. (short-term condensation possible)
Storage temperature
-20 ... +70 °C (without batteries)
Dimensions
108 x 54 x 28 mm
APPLICATIONS
ECO 230 Precision Barometer/Altimeter
The ECO 230 is a compact, high-precision barometer and altimeter designed for fast, reliable measurements in a wide range of professional, industrial, and recreational fields. Its robust, waterproof construction and high-resolution sensor make it ideal for both field and laboratory use.
Key Applications
-
Meteorology & Weather Monitoring
-
Accurate measurement of ambient atmospheric pressure for weather forecasting and research
-
Trend display and min/max recording for detailed climate studies
-
-
Aviation & Motor Sports
-
Altitude calculation for pilots and navigation systems
-
Real-time pressure data for engine control and performance optimization in vehicles with combustion engines
-
-
Outdoor Activities & Navigation
-
Altimeter function for hiking, cycling, mountaineering, and outdoor adventure
-
Convenient height adjustment and sea level correction for precise elevation tracking
-
-
Industrial & Laboratory Reference
-
Use as a reference device for calibrating and verifying other barometric sensors in industrial and laboratory settings
-
Optional calibration certificates for traceable accuracy
-
-
Smart Devices & Embedded Systems
-
Benchmarking and validation of barometric sensors in smartphones, navigation devices, and weather stations
-
Downloads
Product Brochures
➤ Technical Datasheet- ECO 230 – Barometer, Altimeter
