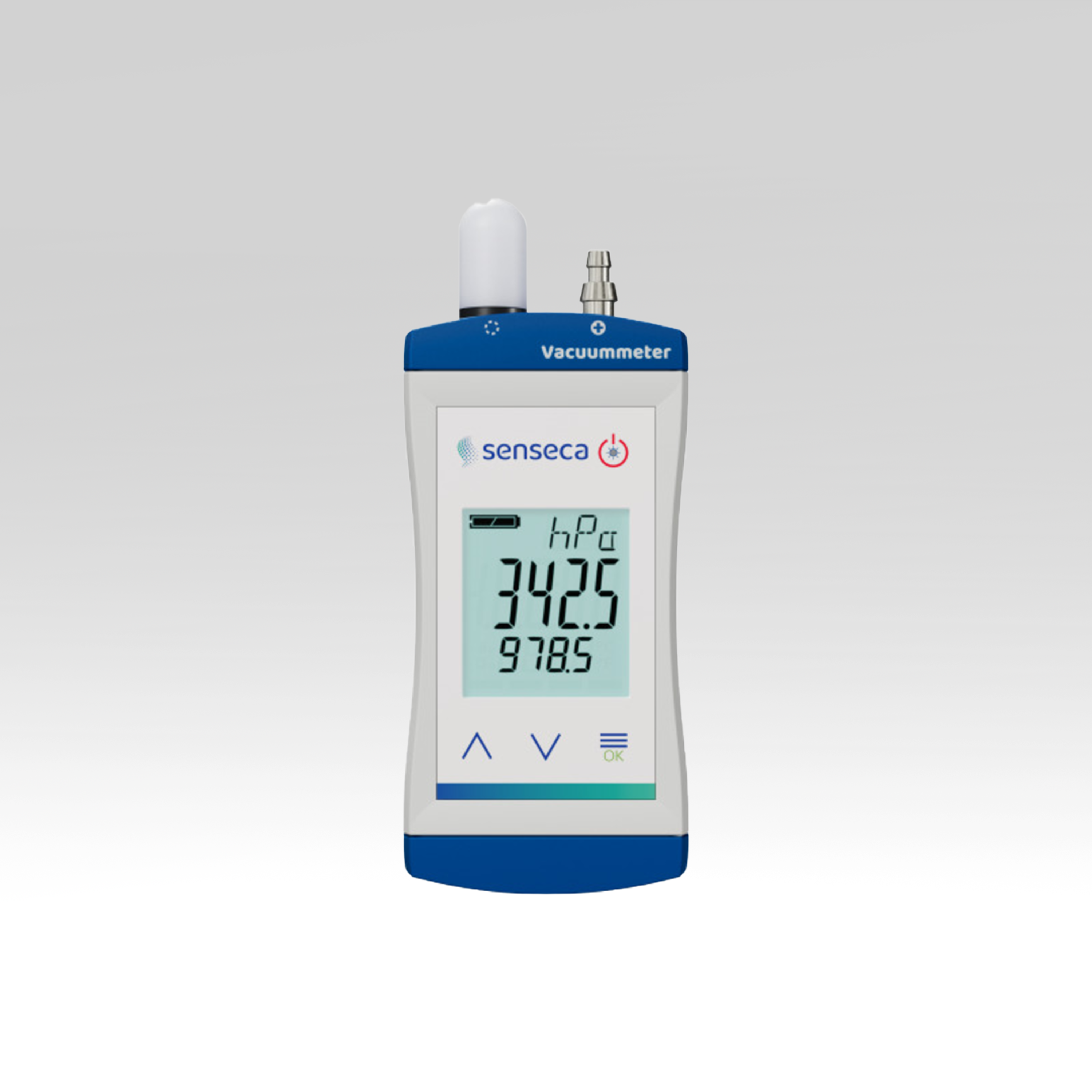

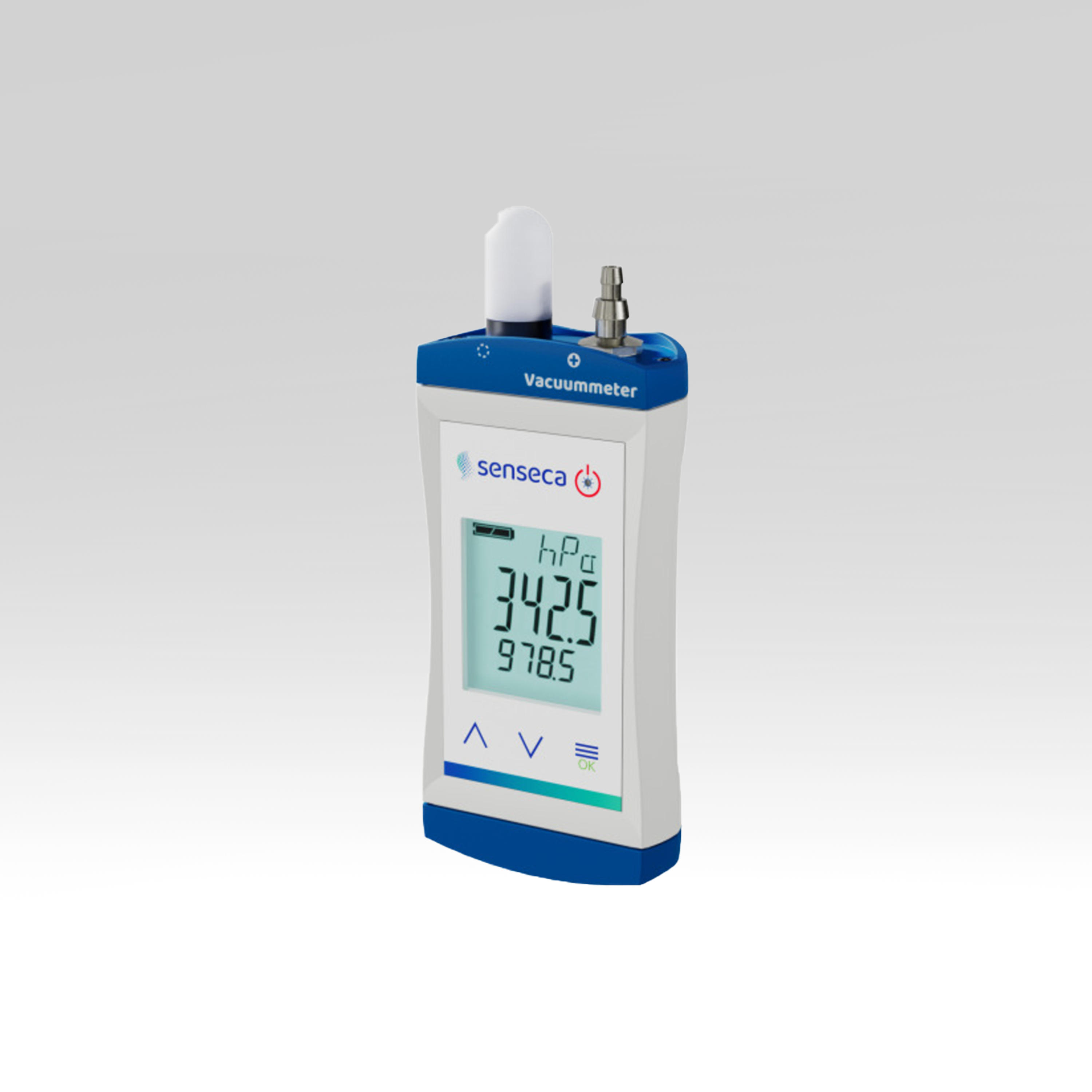

ECO 240-1 Vacuummeter

Features:

✔ Modern and functional housing

✔ Waterproof (IP67)

✔ High resolution and accuracy

✔ Very fast!

✔ 3-line display / overhead display at the push of a button

✔ Robust, long battery life

✔ Backlight

When developing the ECO-Line, the focus was deliberately on the essential functions of measurement technology – a high-quality sensor is at the heart of this – the heart of the measuring device – on which no savings were made despite the low overall price! Precision, speed and reliability, packaged in a compact and waterproof housing, make the device a reliable partner for the trade.

Description

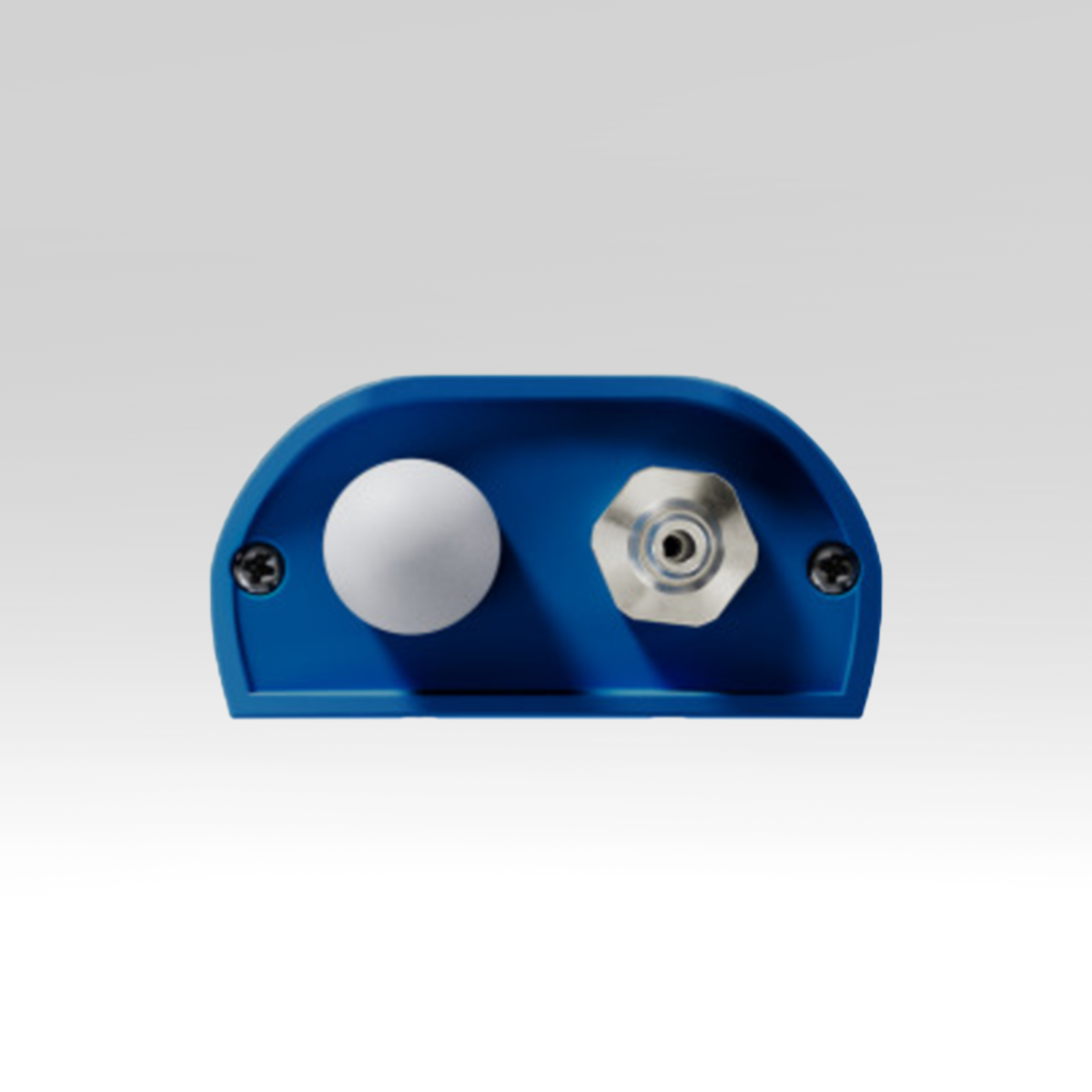

ECO 240-1 Vacuummeter – Vacuum-, Barometer, optimized, with pressure connection and an additional connection as pressure compensation element

When developing the ECO 240-1 Vacuummeter series, the focus was deliberately on the essential functions of measurement technology – a high-quality sensor is at the heart of this – the heart of the measuring device – on which no savings were made despite the low overall price!
Precision, speed and reliability, packaged in a compact and waterproof housing, make the device a reliable partner for the trade.
For fast measurement in a vacuum at ECO240-1 (VAC)
Fast and precise, for example for testing vacuum packaging machines:

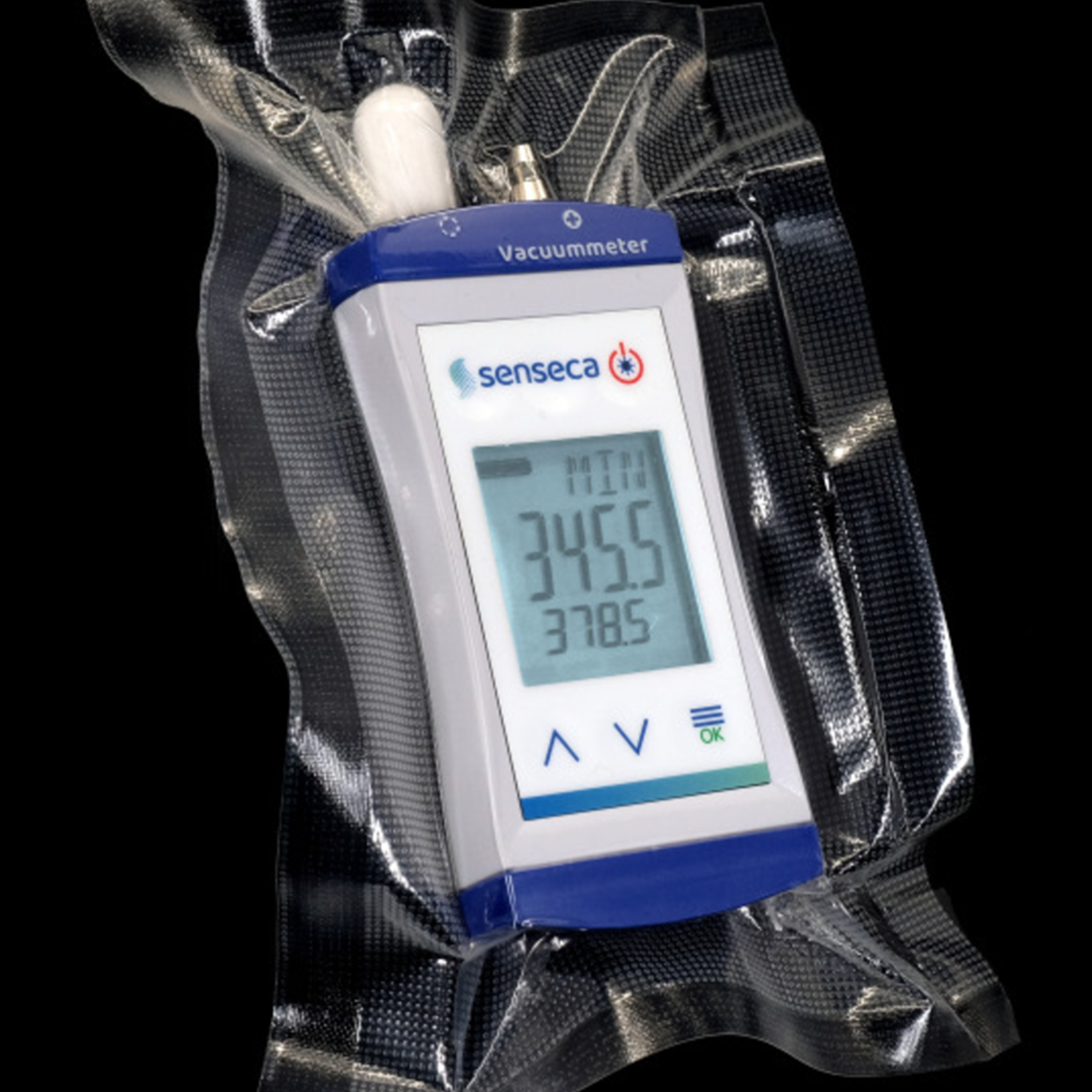

Pack and evacuate the device, read the display, done. The minimum vacuum reached can also be read off after unpacking via the minimum value display.
Also for monitoring vacuum moulding processes.
Barometer / pressure gauge with high resolution for ECO240-2
Covers pneumatic range with 1 mbar resolution up to 14 bar! Can be used as a relative pressure measuring device (run “tare” without pressure to set device to 0) or as an absolute pressure measuring device (starts at ambient pressure e.g. 1013 mbar = 1013 hPa)
Thanks to the optional calibration certificates, the baro-/vacuum-meter can serve as a perfect reference device for checking the actual accuracy of corresponding devices

Technical Data

Technical Specifications

Power consumption

<1 mA (without backlight, SLO), with backlight: ca 3 mA

Power supply

2 x AA-Alkaline batteries (scope of delivery)

Measuring

Absolute pressure

Measurement rate

Slow: 2.5 measurements per second,
Fast: 25 measurements per second

Weight

140 g incl. battery

Measuring range

0.0 ... 1700.0 hPa (mbar)

Operating conditions

-20 ... +50 °C (recommended 5 ... 30 °C); 0 ... 95 % r.h. (short-term condensation possible)

Storage temperature

-20 ... +70 °C (without batteries)

Dimensions

108 x 54 x 28 mm, incl connectors: ca 122 x54x28 mm

APPLICATIONS

Applications of ECO 240 Baro-/Vacuum-Meter

The ECO 240 series is a versatile instrument designed for precise measurement of absolute pressure, vacuum, and barometric pressure in a wide range of professional and industrial settings. Its robust, waterproof design and high-quality sensor make it ideal for both field and laboratory use.

Key Applications

Vacuum Measurement
- Fast and precise testing of vacuum packaging machines
- Monitoring vacuum molding and forming processes
- Measuring minimum vacuum levels (with minimum value display)
- Complete device evacuation for process verification
Barometric Pressure Measurement
- Weather monitoring and environmental data collection
- Reference barometer for calibration and comparison of other devices
- Absolute and relative pressure measurements for scientific and industrial purposes
