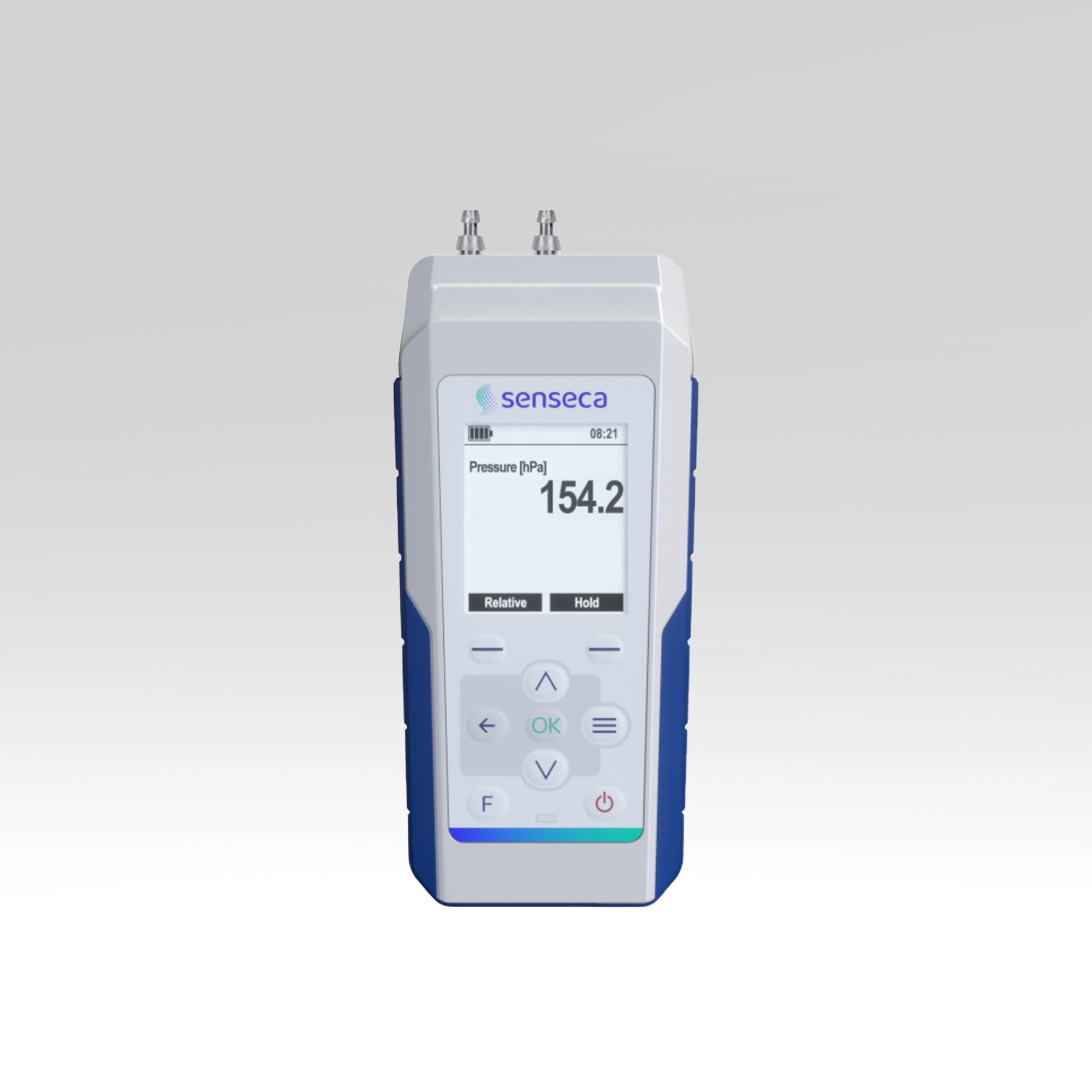

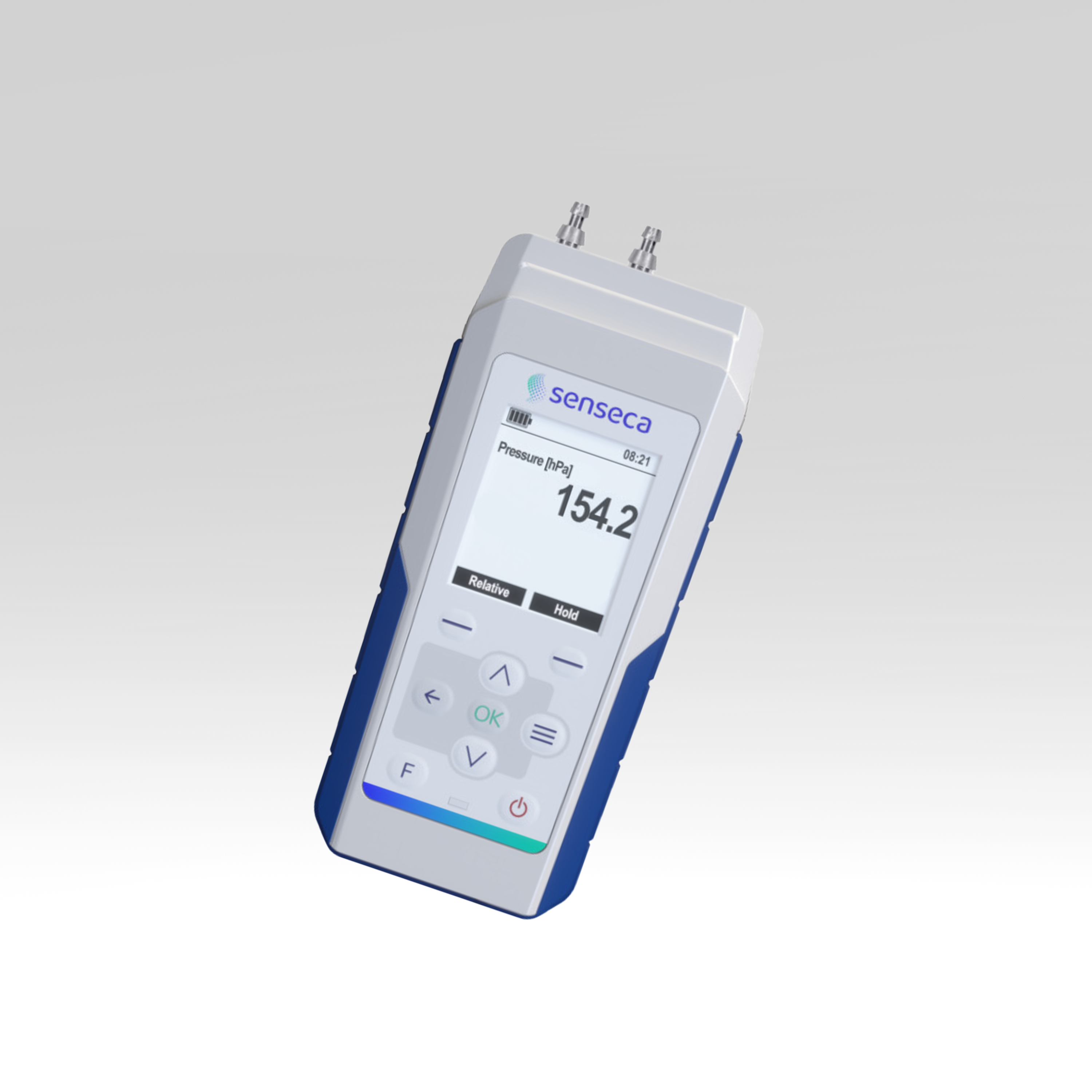

PRO 241 / PRO 245 Absolute Pressure

PRO 24x – Absolute handheld pressure gauge – vacuum gauge, integr. sensor, graphic display

INTRODUCTION
PRO 241 and PRO 245 are absolute pressure high class professional handheld meters/vacuummeters with a rich set of features, high grade robustness and operating comfort for safe and reliable use. PRO 245 also has data logging capability.
FEATURES
Display
The multilingual large dot matrix/clear text LCD has ergonomic wide-angle visibility from daylight to darkness, thanks to the backlight. It displays either large scale values, statistical data or the chart of a variable measurement history. The HOLD feature allows freezing the measurements on display, while the REL feature allows showing the measurement against the measured value. Many units of measurement available: hPa, kPa, bar, mbar, inHg, mmHg
Data Logging (only PRO 245)
Large storage capacity: up to 1 million data, file system based. The logged data are store in CSV files that can be easily viewed connecting the instrument to a PC via USB: the instrument is seen by the PC as a mass storage device, the data can be read oud and evaluated without software necessarily needed. Automatic log with configurable interval.
The instruments integrate a Real Time Clock: date and time of each logged sample are stored.
Application Software
addition to CSV files, the free user-friendly basic ProXware PC application
software allows for examination of a large amount of logged data.
Alarm
Configurable alarm thresholds and optionally hysteresis can be set. LCD indication
and buzzer activation when thresholds are exceeded.
Ergonomics
The construction allows for both one-handed use as well as bench-top use with the foldable back stand. Side rubber protection offers a secure grip during the use in the field.
