ECO 521 Conductivity Meter

Features:

✔ Carefree precise measurement up to 5000 µS/cm

✔ Display also in EC (=mS/cm) CF or TDS(=mg/l)

✔ Modern and functional housing

✔ Excellent price-performance ratio

✔ Long term stable and fast titanium measuring cell

✔ 3-line illuminated display / overhead display at the push of a button

✔ Waterproof (IP67)

✔ Robust, long battery life

The primary focus in the development of the new ECO-line was place on the essential functions of the measurement technology.
Pure measurement with a focus on precision, speed and reliability packaged in a compact housing distinguishing an impressive price/performance ratio, Made in Germany.
The new handheld measuring devices also impress with their ergonomic design, dust and water-protected design in accordance with IP 65/67 and the illuminated display.
The measuring devices with the high-precision sensor can be used up to 5000 µS/cm and are therefore cost-optimized professional devices for use in the areas

Description

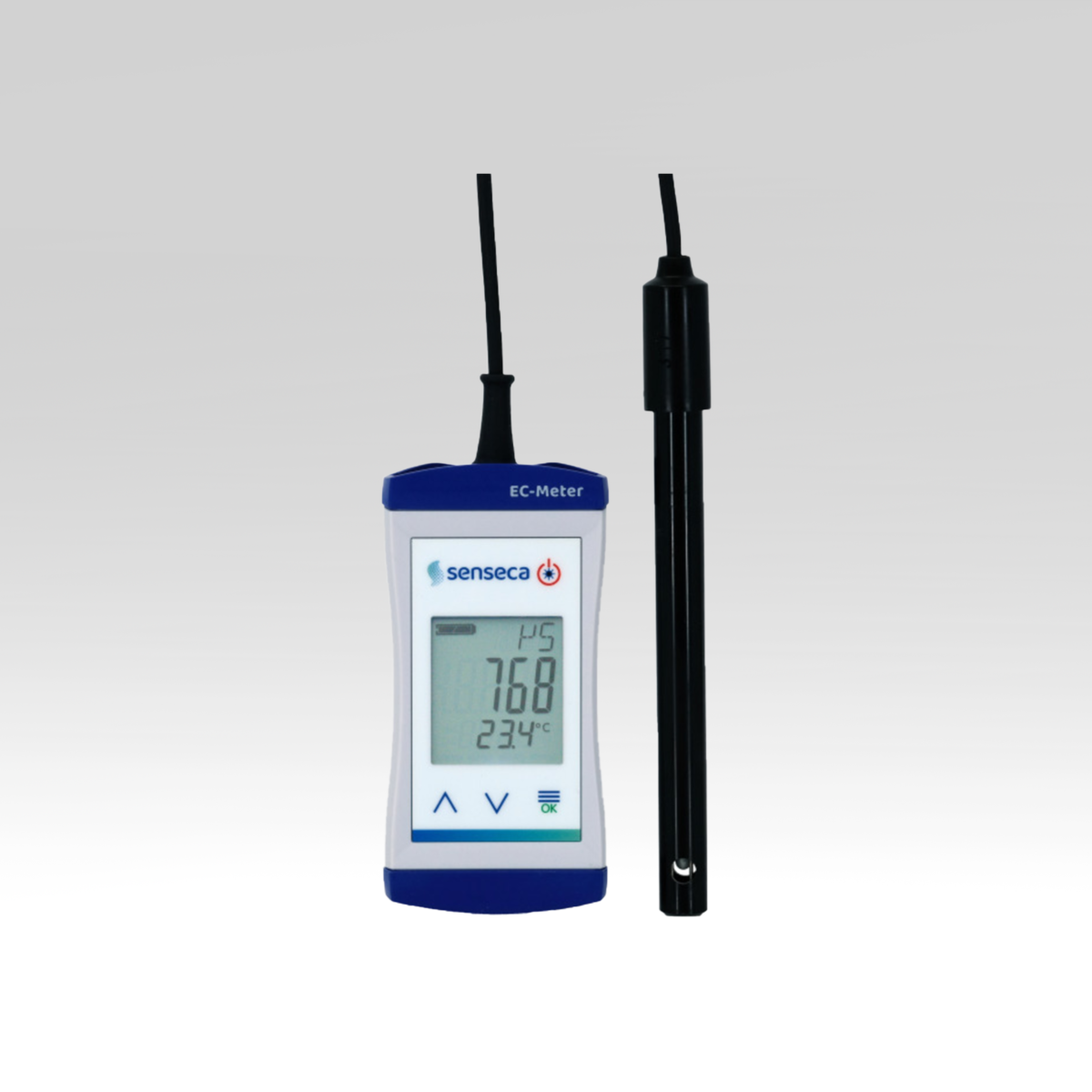

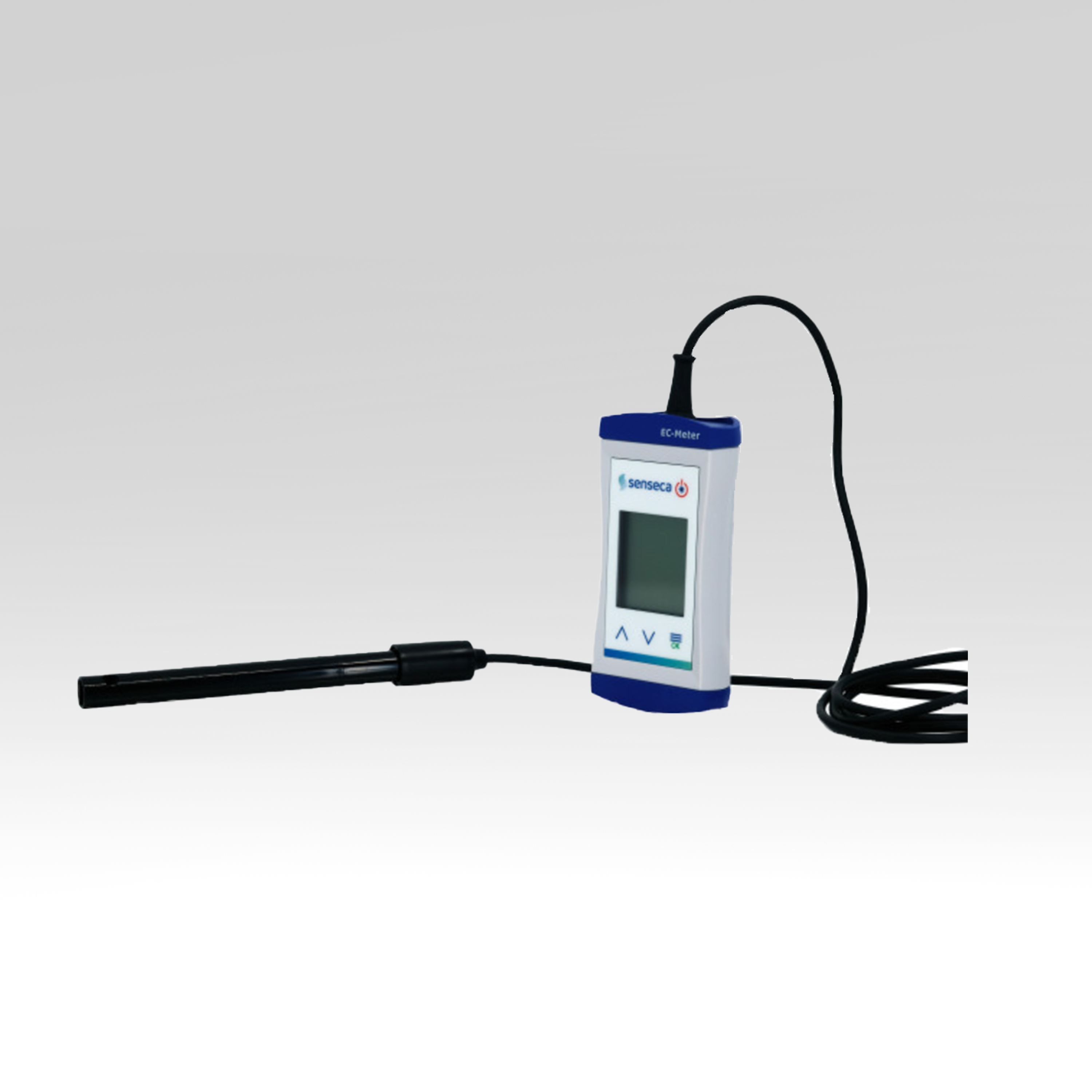

ECO 521 – waterproof compact EC-meter – conductivity-meter ( formerly G 1409)

The primary focus in the development of the newECO 521 Conductivity Meter ECO-line was place on the essential functions of the measurement technology.
Pure measurement with a focus on precision, speed and reliability packaged in a compact housing distinguishing an impressive price/performance ratio, Made in Germany.
The new handheld measuring devices also impress with their ergonomic design, dust and water-protected design in accordance with IP 65/67 and the illuminated display.
The measuring devices with the high-precision sensor can be used up to 5000 µS/cm and are therefore cost-optimized professional devices for use in the areas

Aquaculture, hydroponics, plant breeding
Water treatment (e.g. osmosis plants)
Boiler feed water / heating construction
and many more…

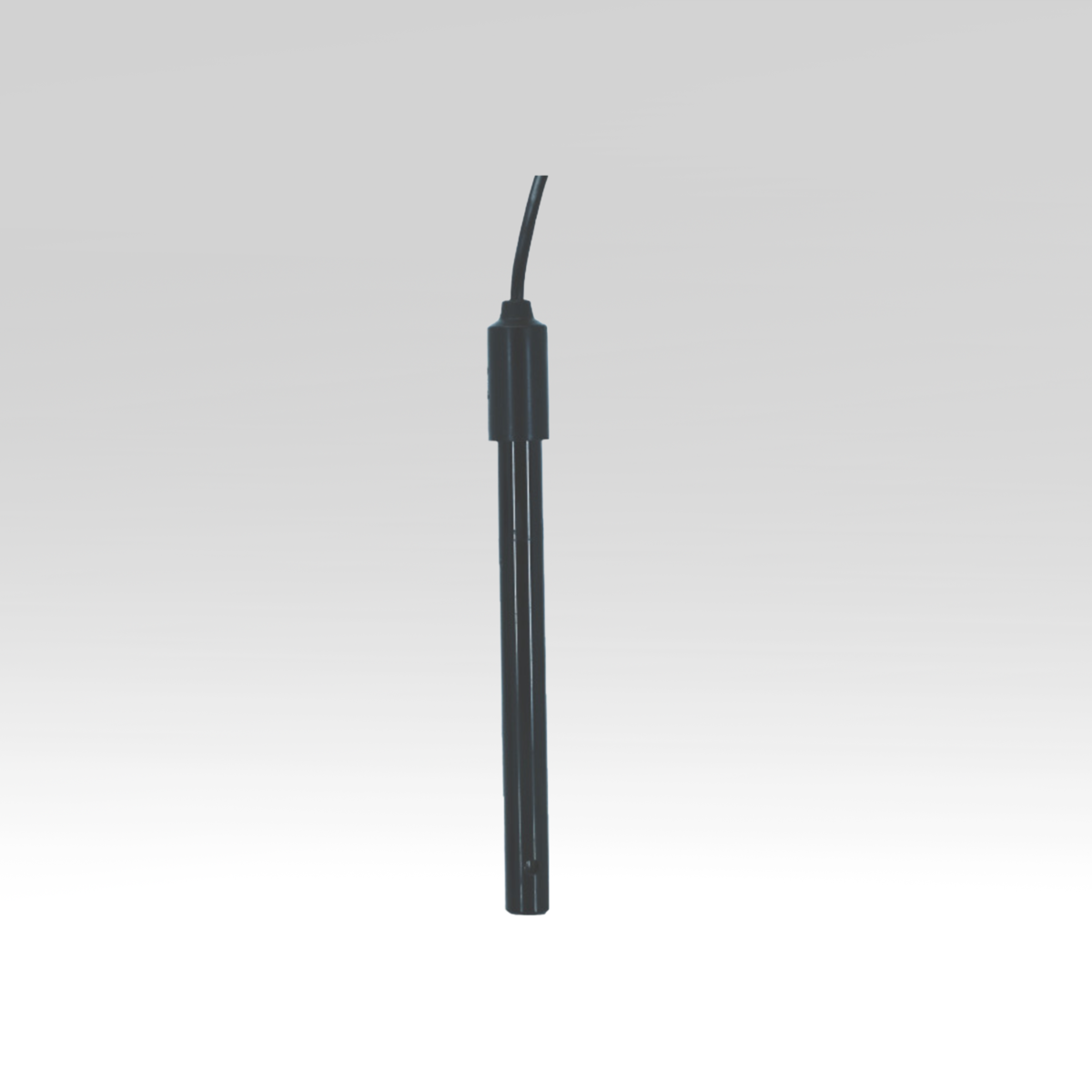

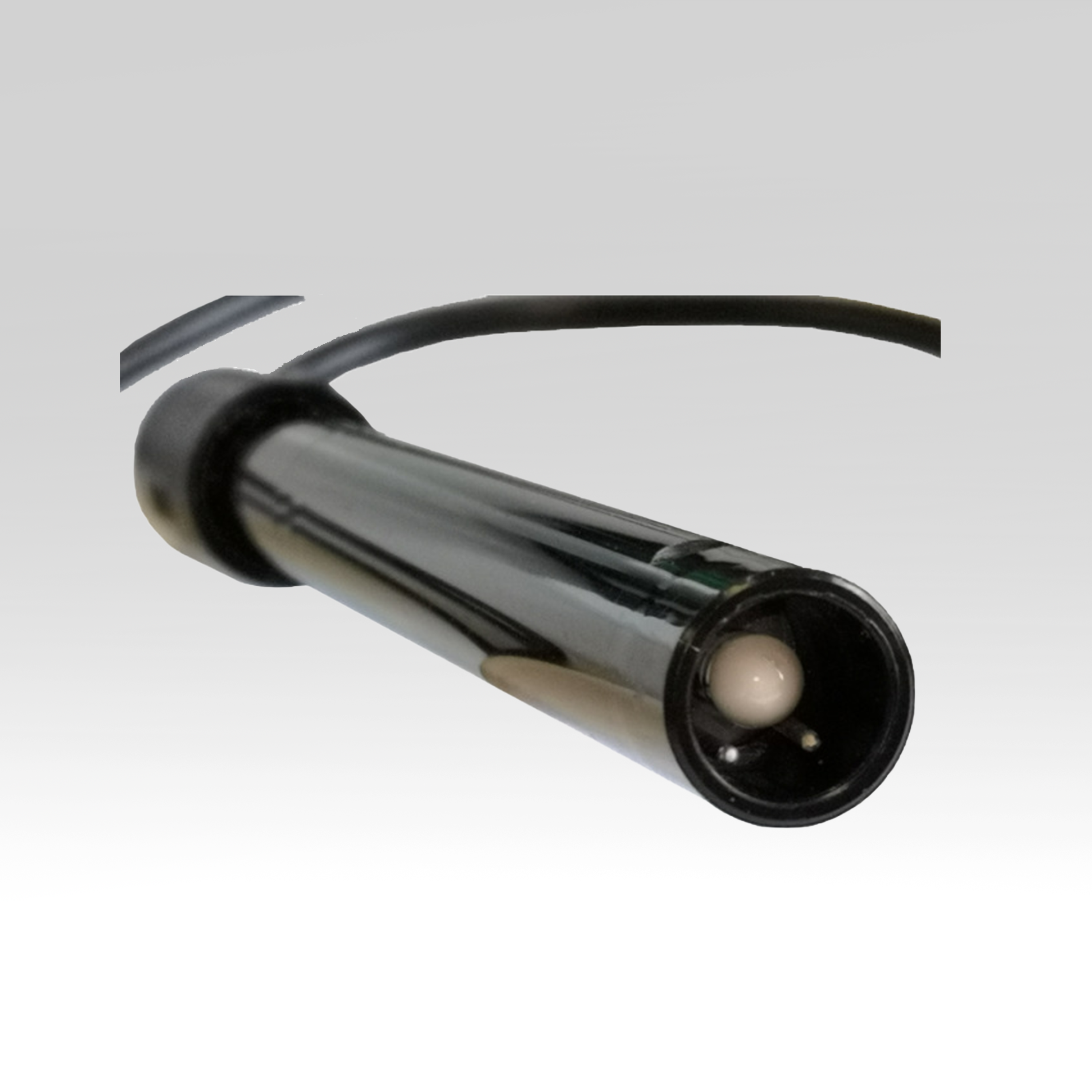

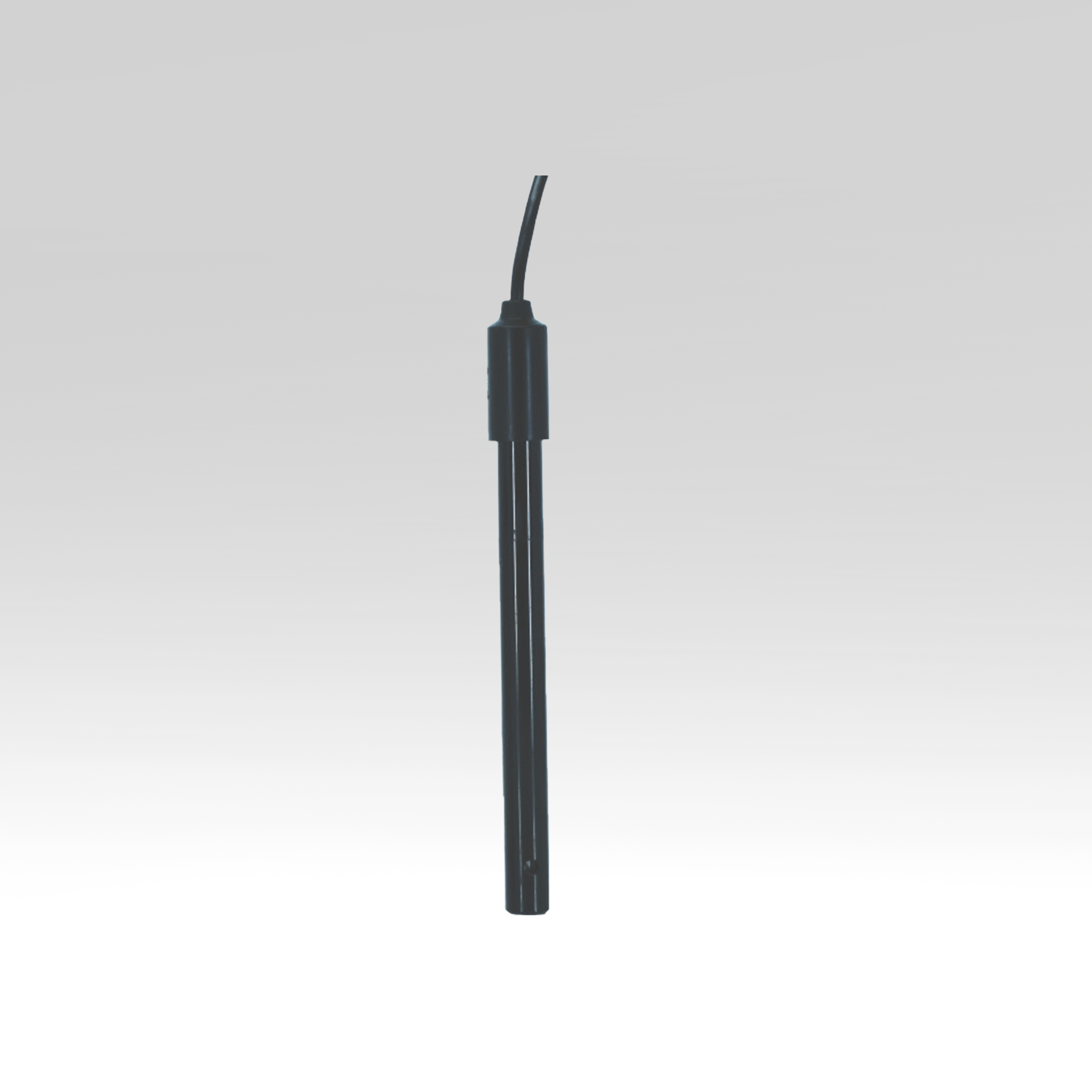

The long-term stable titanium measuring cell can be calibrated with GKL 100 calibration solution, the integrated temperature sensor compensates temperature changes very quickly and accurately.
The ECO 521 – a reliable professional device for daily use as an alternative / upgrade to entry-level measuring sticks!

The ECO 521 is a reliable, easy-to-use handheld conductivity meter designed for accurate measurement of electrical conductivity (EC), total dissolved solids (TDS), and temperature in aqueous solutions. Built with a durable waterproof design, automatic temperature compensation, and replaceable conductivity cell, the ECO 521 is ideal for field testing, environmental monitoring, laboratories, agriculture, hydroponics, and water treatment applications.

Technical Data

Technical Specifications

Protection class

IP65 / IP67

Accuracy

Conductivity up to 2000 µS/cm: typ. ± 1 % of value ± 0.5 % FS
Temperature: ±0.3 °C Temperature compensation: Off: deactivated
nlF: non linear, acc. To EN 27888

Power supply

2 x AA Alkaline batteries (included)

Housing material

Impact resistant ABS, polyester front panel

Weight

approx. 200 g

Power consumption

<1 mA

Operating conditions

Device: -20..+50 °C, 0..95 % r.h. (non-condensing) Sensor: -5..+80 °C

Storage temperature

-10 ... +60 °C (without batteries)

Dimensions

108 x 54 x 28 mm (instrument without sensor) (H x W x D)

APPLICATIONS

Aquaculture
- Monitoring water quality to ensure optimal conditions for aquatic life.
Hydroponics
- Managing nutrient concentrations in water for soilless plant cultivation.
Plant Breeding & Indoor Growing
- Ensuring proper salinity and nutrient levels to promote healthy plant growth.
Water Treatment
- Suitable for systems like reverse osmosis (RO) plants to monitor feed or output water conductivity.
Boiler Feed Water & Heating Construction
- Checking water purity and conductivity to prevent scaling and corrosion in heating systems.
