GF 1T -Pt1000 Temperature

Features:

✔ Compact, pen-type handle with high operating temperature up to 250 °C

✔ 3 probe types: immersion probe Ø 3mm, insertion probe Ø 3mm, needle type insertion probe Ø 1.5 mm

✔ Very fast!

✔ Pt1000 platinum probe for 2-wire instruments (e.g. ECO 120, pH-meters with T-input)

✔ Water-protected according to IP65 and IP67

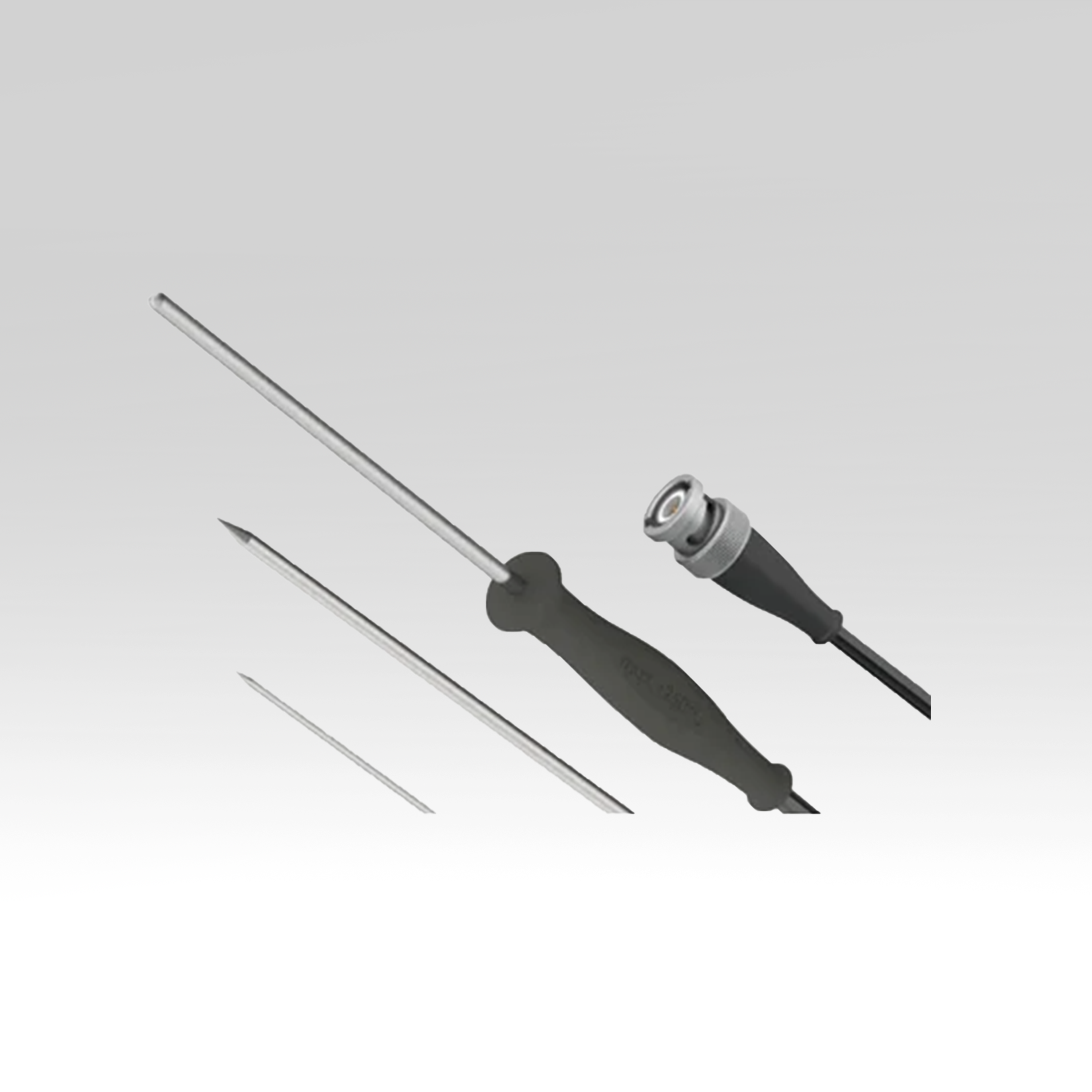

GF 1T – Compact Pt1000 temperature probe with silicone handle

compact GF 1T -Pt1000 Temperature immersion probe with silicone handle, Ø 3 mm with audio plug

Connection: BNC (waterprotected), banana plugs, phone connector Ø3.5 mm or loose ends
Sensor: Pt1000, 2-wire, thinfilm sensor
Applications: immersion/insertion
Handle material: black silicon, -50 … +230 °C permanent, short-time +250 °C
Handle length: 70 mm
Cable: silicone cable, -50 … +230 °C permanent, short-time +250 °C

The GF 1T is a robust designed for precision measurement in demanding industrial environments. It features a spring-loaded bayonet cap design, ensuring consistent contact pressure and reliable readings in applications such as plastics processing, hot runner systems, and die monitoring.

Applications:

Plastic Injection Molding Machines

Extrusion and Hot Runner Systems

Die and Mold Temperature Monitoring

Sealing and Packaging Machines

Process Control in Heating Zones

Motor and Bearing Temperature Sensing

Features:

Secure Mounting:
Bayonet-style cap with adjustable spring ensures excellent thermal contact in dynamic environments.

High Accuracy & Stability:
Pt1000 sensor element offers precise and stable resistance-temperature characteristics.

Customizable Design:
Probe length, cable type, wiring configuration, and sheath material can be tailored to application needs.

Rugged Construction:
Suitable for use in high-vibration or industrial settings, including molding and extrusion machinery.

Easy Integration:
Compatible with a wide range of controllers, PLCs, and temperature monitoring systems.
