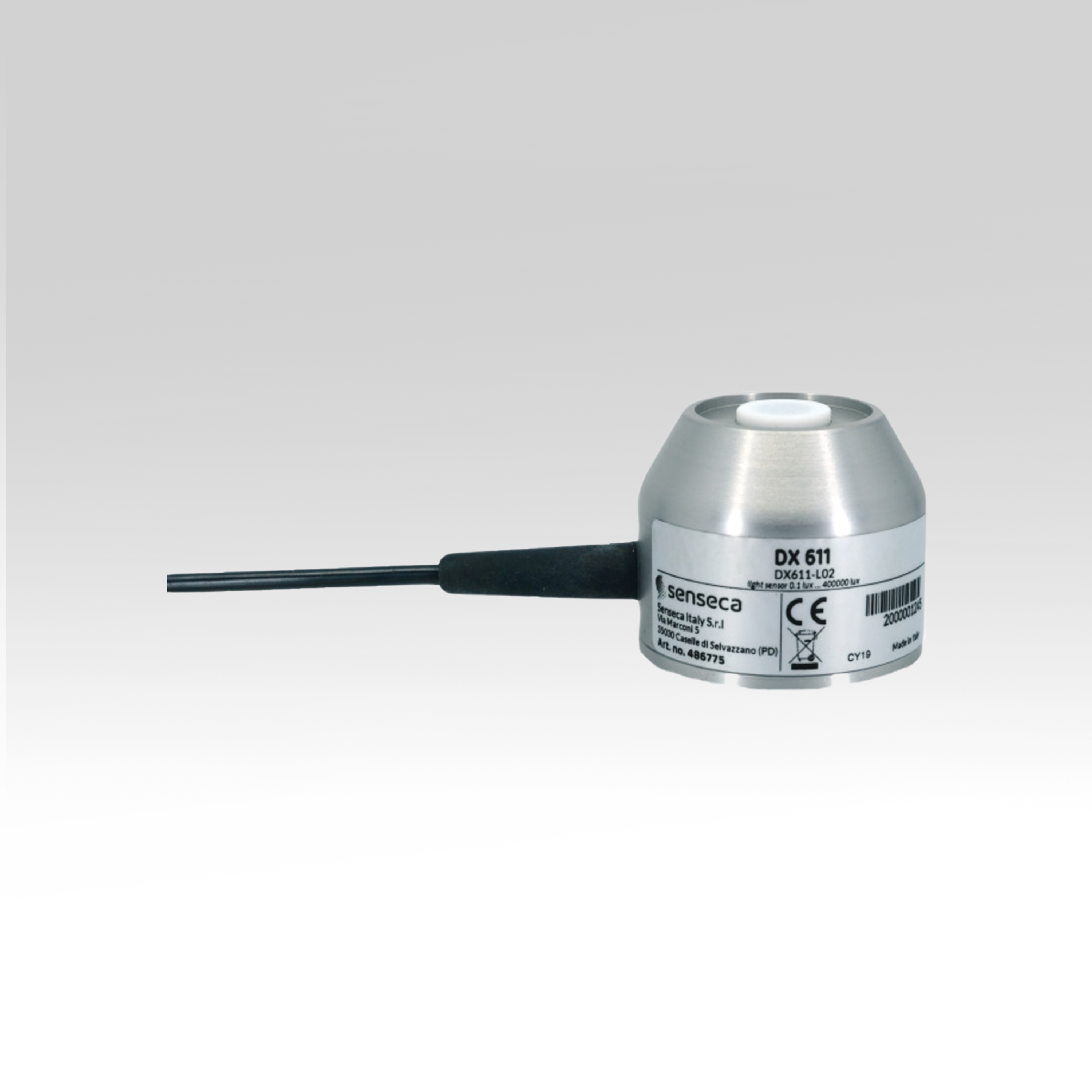

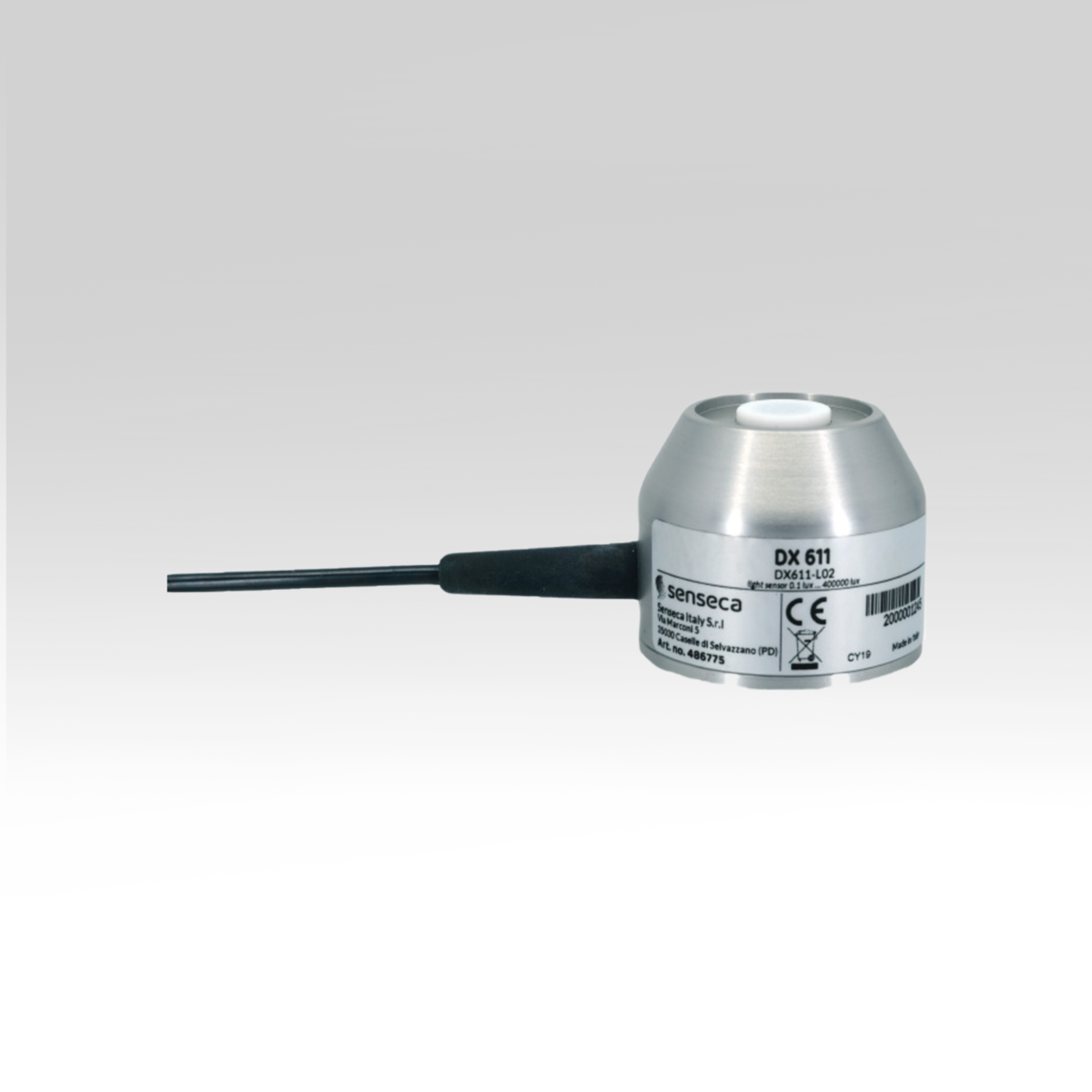

DX6 – Digital Light Sensor

DX6 – Digital Light Sensor

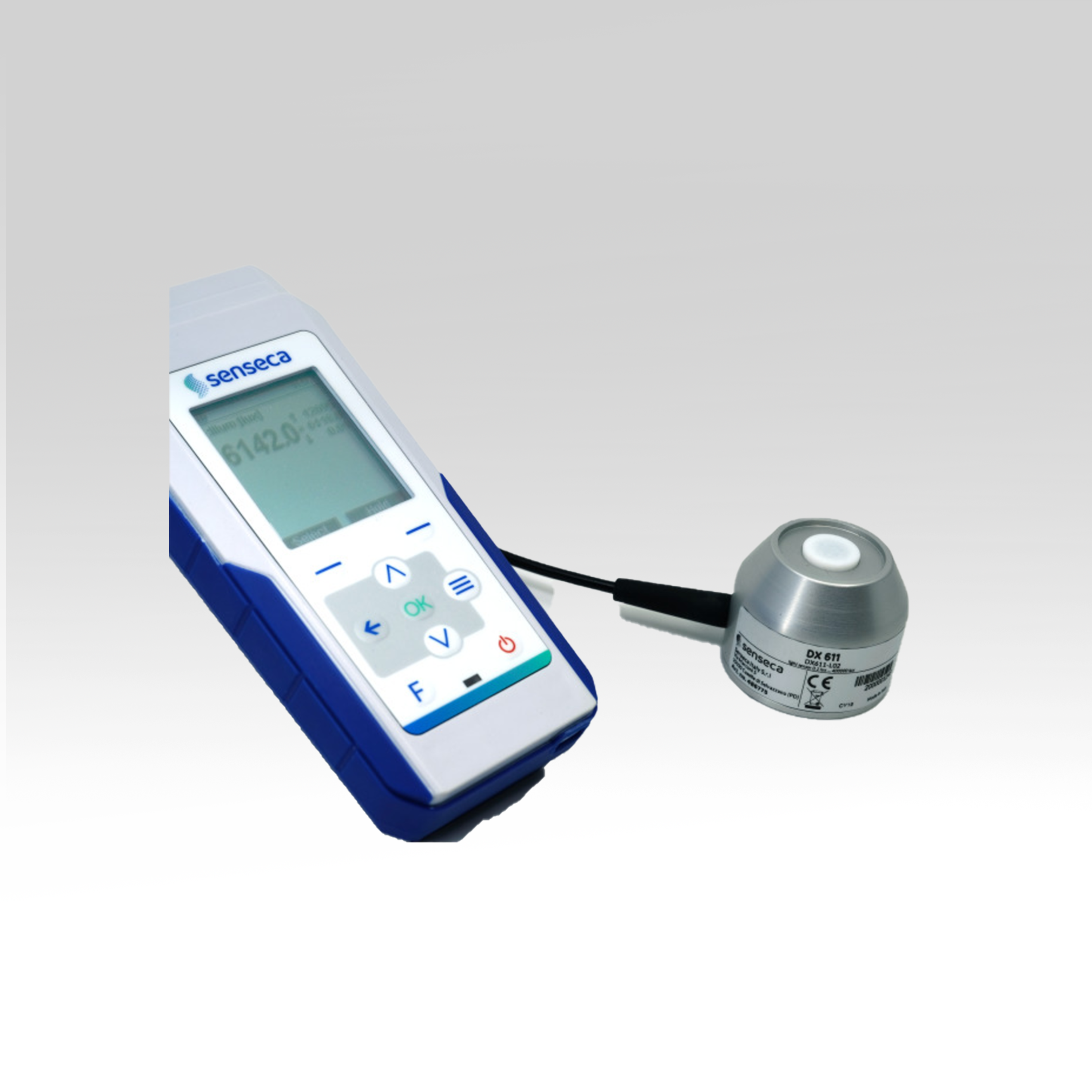

DX6 – Digital Light Sensor is a series of digital photo-radiometric probes for the PRO D01 / PRO D05 handheld meters.

The probes measure:

• Illuminance
• Luminance
• Irradiance (specific probes for UVA, UVB, UVC, UVBC and Blue light ranges available)
• PAR (Photosynthetically Active Radiation)

The probes are supplied factory-calibrated, and they are ready to use. The probes can be optionally supplied with a DAkkS/ACCREDIA calibration certificate. The calibration data are stored in the probe, allowing for interchangeability without the need for recalibration. Integrated bubble level to facilitate horizontal positioning during installation. Equipped with 4-pin M12 connector.
The DX6 Digital Light Sensor is a compact, high-precision device designed for accurate measurement of ambient light levels in a variety of industrial and environmental applications. With digital output and robust sensing capabilities, it is ideal for light monitoring in smart agriculture, greenhouses, outdoor installations, and smart lighting systems.

Key Features:

• High Sensitivity & Accuracy: Measures wide dynamic light ranges from low to high lux levels with excellent precision.

• Digital Output: Provides I²C or UART digital interface for seamless integration with microcontrollers, data loggers, and IoT devices.

• Compact & Rugged Design: Small footprint with IP-rated enclosure suitable for harsh outdoor conditions.

• Wide Measurement Range: Typically supports 0.01 lux to 100,000 lux or more depending on model.

• Low Power Consumption: Ideal for battery-powered and solar-powered setups.

• Real-Time Monitoring: Suitable for continuous light intensity tracking with fast response time.

• Calibration Ready: Factory-calibrated for standard light sources; customizable calibration options available.
