DX 721 Digital Soil Moisture Probe

Features:

✔  Fast and accurate

✔  Interchangeable

✔  Low power

✔  Precise determination of the volumetric water content

✔  Maximum possible range of up to 100% VWC

✔  Integrated temperature measurement

Categories: , ,
Description

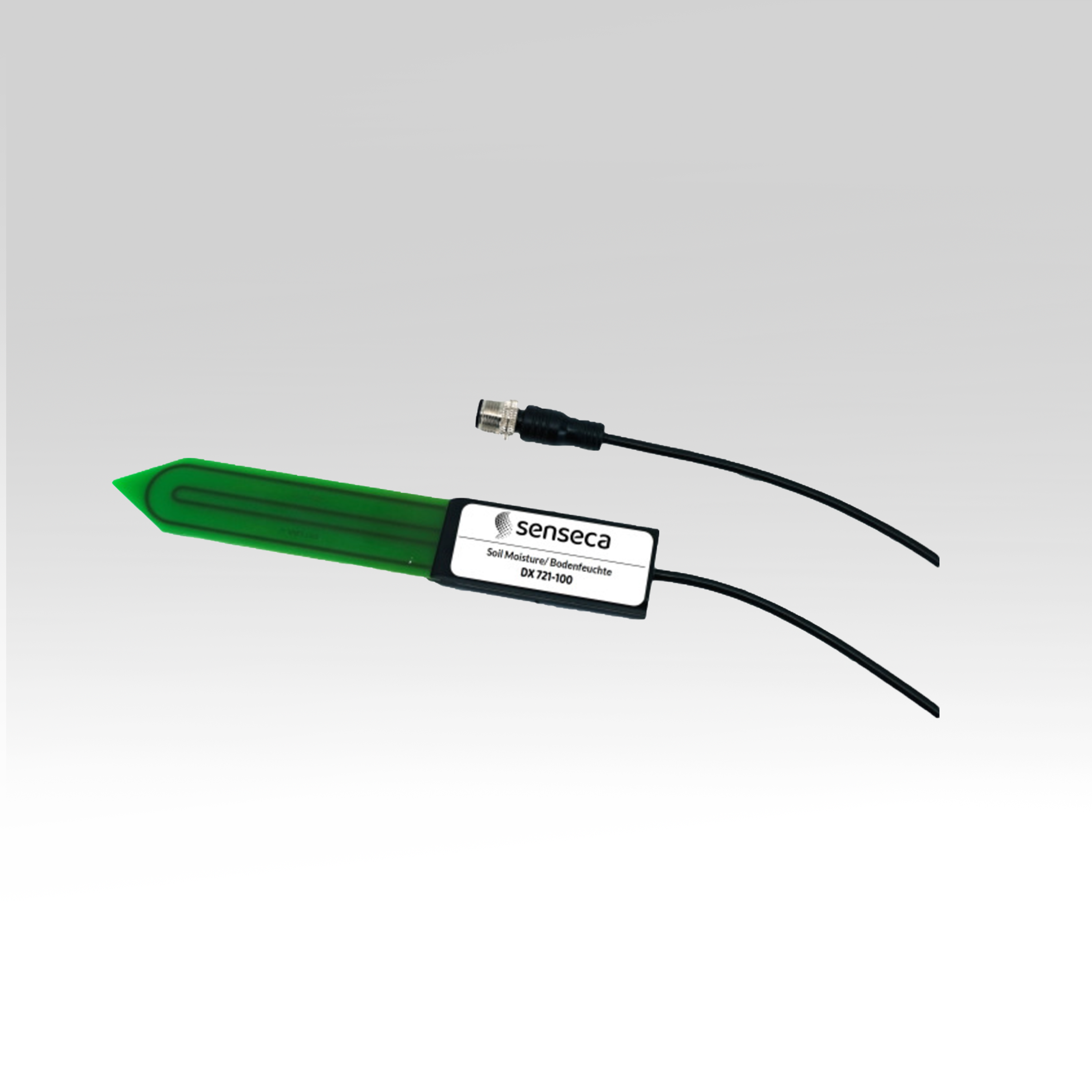

DX 721 – Digital wide range soil moisture probe

The DX 721 is a state-of-the-art soil moisture probe – suitable for fast measurements in changing locations or for long term monitoring in fixed locations. The DX 721 are optimized and calibrated for use in typical agricultural soils.
The accuracy depends on the application.
With the standard calibration up to ± 3% (VWC) in mineral soils with medium salinity from 0 to 50% VWC can be achieved.
With soil-specific calibration, accuracy of up to ± 1% (VWC) can be achieved.
Measurement is also possible in other materials, for example: mineral wool, coconut fiber, wood fiber, paper.
The display values must then be interpreted/calibrated for the specific material.
DX 721 Digital Soil Moisture Probe sensors are interchangeable -the sensors are fully calibrated.
Simply “plug in and measure”!
With the suitable PROD01 / PRO D05 meters this is a reliable reference for agricultural/horticultural applications.
The multichannel data logger meters PROD05.2/.3 can combine up to 3 probes in one instrument – or combine the probes with each of the available DX-digital probe to incorporate a multiparameter measuring solution “in one hand”. Supplied with 2 or 5 m cable with 4-pin M12 connector.
The DX 721 is a high-precision digital soil moisture sensor designed for real-time monitoring of volumetric water content (VWC) across a wide range of soil types. Ideal for agriculture, horticulture, environmental monitoring, and research applications, the DX 721 delivers accurate, consistent, and reliable soil moisture data in challenging field conditions.

Technical Data

Technical Data

Technical Specifications

Power consumption

Ø 0,5 mA typ.

Connection

4-pole M12 via cable

Operating conditions

-40 … +80 °C / 0…100 %RH

Dimensions

measuring area 110x30 mm 182mm x 30mm x 12mm
(measuring area thickness ca 1.6mm) Cable length: 2, 5 or 10 m

Weight

95 g approx. with 2 m cable 150 g approx. with 5 m cable

Material

In contact with soil: FR4 epoxy Handle: Luran / stainless steel screws Cable: PVC

Downloads

Downloads

Product Brochures

Technical Datasheets- DX 721 Digital Soil Moisture Probe
