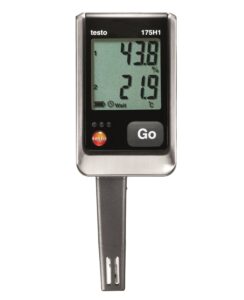

Temp-Humidity Data Logger-Testo175H1
Make: TESTO (Made in Germany)
Model Code: TESTO 175 H1
Part Code: 0572 1754
Order Code: KLSTE09105606081
Features:
✔ Round-the-clock monitoring and logging of temperature, relative humidity and dew point
✔ Super-size memory for long-term measurements and up to 1 million readings, battery life of 3 years
✔ Shorter reaction times and accurate measurements with external humidity sensor
✔ Free software download (ComSoft Basic)
SKU: KLSTE09105606081
Brand Category: Testo (Germany)
Product Category: Humidity Measurement
Warranty: 2 Years (against manufacturing defects only)
Note: Return policy not applicable
Based on cutting-edge technology, the data logger testo 175 H1 offers a high level of data security and accurate measurements. It includes a super-sized memory that can store up to 1 million readings and a three-year battery life. This allows you to read the data out at greater intervals, even though the measuring cycles are shorter. The user can easily change the triple AAA batteries provided in the scope of delivery.
Programming and Analyzing the data Loggers
Choose 1 of 3 software versions to program or read out the loggers or to analyze the measuring data you have obtained on your PC:
– Software ComSoft Basic– included – allows you to program your logger and analyze the data quickly and easily
– Software ComSoft Professional– optional – provides you with additional possibilities and a more detailed analysis of the temperature and humidity values
– Software ComSoft CFR 21 Part11– optional – ideal for the special demands of the pharmaceutical sector in compliance with 21 CFR Part 11
You will need a USB cable (not included in scope of supply) to program your data logger. The data can be transferred to your PC either via USB cable or SD card. Both are optionally available as accessories which can be ordered along with your testo 175 H1.\
.
Technical Data
Temperature - NTC
Measuring Range
-20 to +55 °C
Accuracy
±0.4 °C (-20 to +55 °C) ±1 Digit
Resolution
0.1 °C
Humidity - Capacitive
Measuring range
0 to 100 %RH*
Accuracy
+0.03 %RH/K ±1 Digit
Resolution
0.1 %RH
Dewpoint (calculated)
Measuring range
-40 to +50 °Ctd
Accuracy
±1.5 °C or ±1.5 % of mv (0 to +250 °C)
±2 °C (-20 to -0.1 °C)
±2.5 °C (-30 to -20.1 °C)
Resolution
0.1 °C
General technical data
Weight
130 g
Dimensions
149 x 53 x 27 mm
Operating temperature
-20 to +55 °C
Product-/housing material
Plastic
Protection class
IP54
Channels
2 internal
Standards
EU-guideline 2014/30/EU; 2011/65/EU
Life-time sensor
Long-term sensor drift of 1% RH per year (ambient temperature + 25 ° C)
Measuring rate
10 s - 24 h
Product colour
Black
Battery type
3 x AIMn type AAA or Energizer
Battery life
3 years, 15 minute measurement rate, +25 °C
Interface
mini usb, SD card slot
Memory
1,000,000 measuring values
Storage temperature
-20 to +55 °C
Accessories/ Probes
USB connection cable, instrument-PC
Order Number: 0449 0047
Micro alkali-manganese battery (AAA) - 1 off
Order Number: 0515 0009
Batteries (AAA) for the below -10 °C application range
Order Number: Batteries (AAA) for the below -10 °C application range
ISO calibration certificate
Order Number: 0554 1704
ComSoft Professional software for programming and readout of
Testo data loggers and for archiving data
Order Number: 0554 1704
ComSoft 21 CFR Part 11 software – validatable software for programming
and readout of Testo data loggers and for archiving dataOrder Number: 0554 1705
ComSoft 21 CFR Part 11 software – validatable software for programming
and readout of Testo data loggers and for archiving dataOrder Number: 0554 1705
Wall bracket for data loggers with lock
Order Number: 0554 1702
APPLICATIONS
Temperature and relative humidity are crucial factors in assessing air quality and levels of comfort in indoor spaces, e.g. in workplaces. With the aid of data loggers, this data can be permanently monitored and documented. The proper observance of storage temperature and humidity is an important prerequisite for the quality control of many products; e.g. in the area of food and pharmaceutical products.Monitoring and documentation of building air conditioning
They are also excellently suited to the monitoring of ventilation systems or for assessing existing building moisture.
With the use of special software, the measurement configurations can be customised and recorded measurement data can be both analysed and stored.
Monitoring and documentation of the storage temperature and humidity
To this end data loggers are usually used. They monitor and document the course of ambient conditions automatically, thereby contributing significantly to verifying that product quality is being maintained.
The direct display of violations of limit values allows fluctuations in temperature and humidity to be responded to fast. With the aid of the configuration and read out software, custom measurement configurations can also be made and recorded measurement data can be both analysed and stored.
Downloads
Product Brochures
➤ Datasheet testo 175 H1 (application/pdf, 308 KB)
Manuals
➤ Instruction manual testo 175 H1 (PDF, 1.8 MB)
Supply/ Delivery Scope
Testo 175 H1 2-channel data logger for temperature and humidity measurements, external humidity sensor (NTC/ capacitive humidity sensor), wall bracket, lock, batteries, calibration protocol.
