AX 111-I / AX 115-I

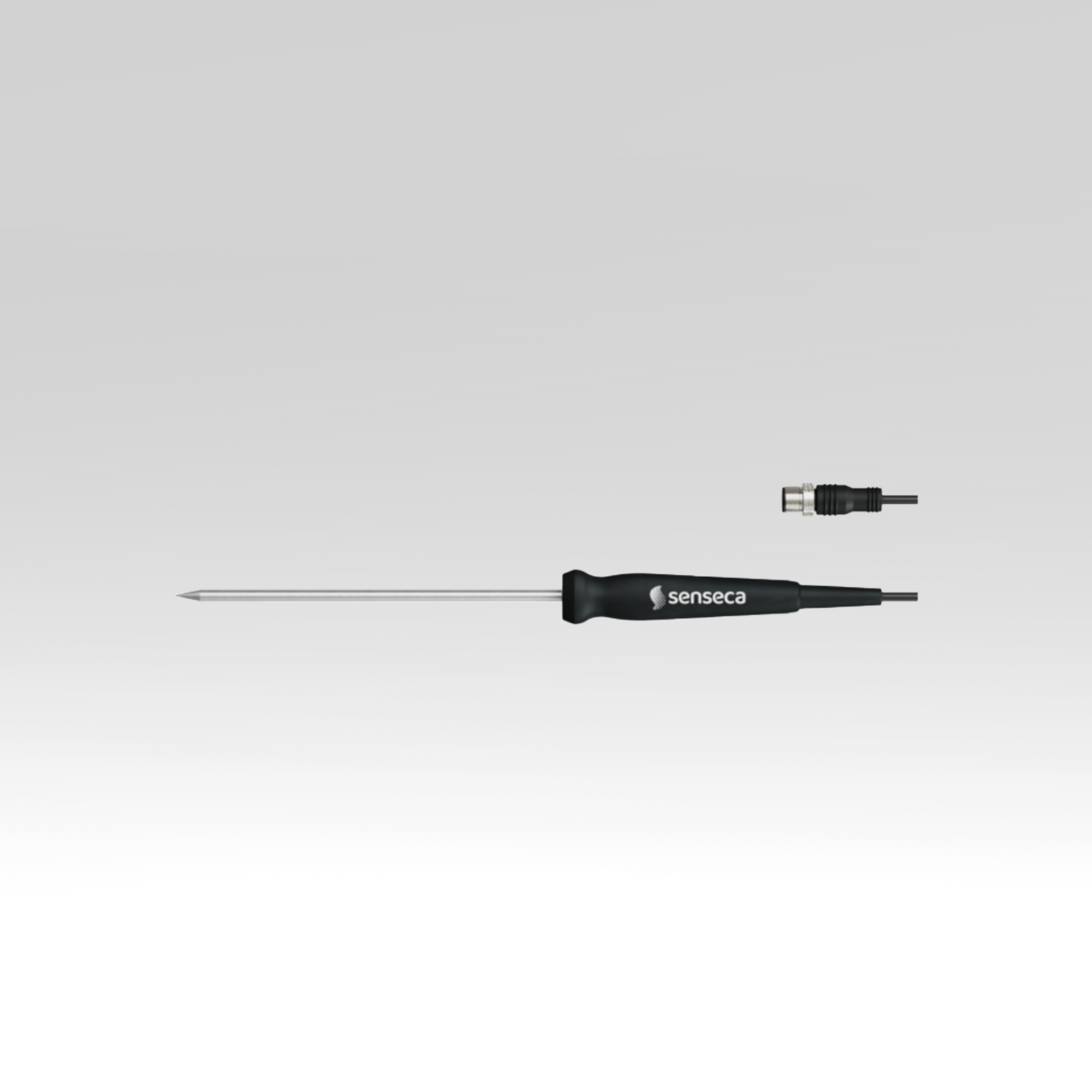

AX 111-I / AX 115-I- Precision analog Pt100 4-wire insertion probes, large handle

AX 111 are precision analog Pt100 temperature probes based on thin film sensor technology.
AX 115 are high precision analog probes incorporating wire wound Pt100 sensors for best precision.
The probes are designed for use in gases, liquids and soft materials.
Stem material is corrosion and temperature resistant stainless steel., which is suitable for continuous food contact.
The standard 1 meter cable is optionally terminated with M12 male connector or loose ends.
The probes can be optionally supplied with a DAkkS-/Accredia calibration certificates when combined to a suitable display instrument (e.g. PRO 111 / 115).
The AX 111-I and AX 115-I are high-precision Pt100 resistance temperature detectors (RTDs) designed for accurate temperature measurements in industrial environments. These probes feature a robust construction with a large ergonomic handle for easy handling and precise insertion. Engineered for reliability and repeatability, they use a 4-wire connection system to minimize lead resistance and maximize accuracy.

Key Features:

• Sensor Type: Pt100 Class A (DIN EN 60751)

• Measuring Principle: Resistance Temperature Detector (RTD), 4-wire configuration

• Insertion Type: Rigid insertion probe with stainless steel sheath

• Handle: Large, durable, and thermally insulated for operator safety and easy operation

• Cable Connection: Shielded cable with strain relief

• Temperature Range: -50 °C to +400 °C (depending on model and configuration)

• Accuracy: High-precision measurement with minimized error due to 4-wire configuration

• Response Time: Fast thermal response for dynamic process conditions

• Applications: Laboratory calibration, industrial process monitoring, HVAC, and R&D testing
