Thermal Imager -Testo 883

Make: TESTO (Made in Germany)
Model Code: TESTO 883
Part Code: 0560 8831
Order Code: KLSTE09105606081

Developed for service engineers, facility managers and building energy consultants: The testo 883 thermal imager is a reliable partner when carrying out your thermal measuring tasks. Its outstanding thermal image quality and useful features will enable you to save time and ensure perfect work results.

Features:

✔ Best image quality: IR resolution of 320 x 240 pixels (with Super Resolution 640 x 480 pixels); NETD < 40 mk

✔ Extensive analysis and documentation: With the intuitive professional software testo IR Soft

✔ Full control: Manual focus and interchangeable lenses

✔ Useful features: testo Site Recognition intelligent image management and testo Scale Assist automatic contrast adjustment

SKU: KLSTE09105606081
Brand Category: Testo (Germany)
Product Category: Electrical maintenance, Mechanical maintenance
Warranty: 2 Years (against manufacturing defects only)
Note: Return policy not applicable

Compare

Add to wishlist

Categories: TESTO, Thermal Imagers Tag: Thermal Imager

Description

The testo 883 thermal imager is the ideal companion for service engineers, facility managers, and building energy consultants thanks to its outstanding image quality, automated allocation/archiving of thermal images to the measurement item, and professional image analysis and reporting.

Everything you need to know about the testo 883 thermal imager

IR resolution of 320 x 240 pixels (with Super Resolution 640 x 480 pixels), manual focus and a very good NETD of 40 mK all ensure the best image quality – so you can reliably detect thermal abnormalities in installations and buildings
testo Site Recognition enables intelligent image management. Thermal images are automatically assigned to the correct measurement object based on the QR code at the measuring location – this eliminates the need for tedious, manual image assignment on the PC

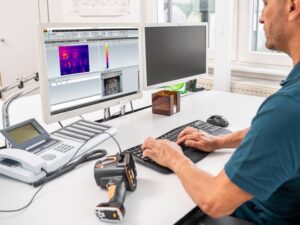

testo IR Soft: Analyze thermal images comprehensively with the intuitive, professional PC software and create impressive reports within a short period of time
testo Scale Assist: Automatic contrast adjustment for objectively comparable thermal images and easier detection of weak spots

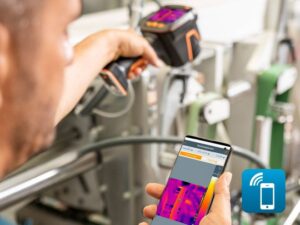

testo Thermography App: With the app, your smartphone/tablet becomes a second display and a remote control for your thermal imager. You can quickly create, send or save reports on site
Interchangeable telephoto lens for distant objects and outdoor recording
Manual focus for sharp thermal images from a distance of 10 cm
Can be operated via touchscreen and joystick

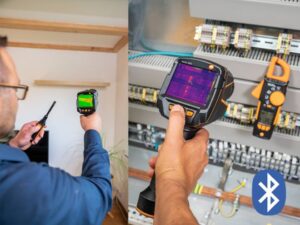

Wireless transmission of readings from clamp meter or humidity probe directly into the thermal image via Bluetooth^®

Service engineers and facilities managers will benefit even more.

Easy to handle – clever management of images and data thanks to testo Site Recognition: automatic assignment of thermal images to the correct measurement object using QR code, Data Matrix code, barcode or Testo 2D code, transfer of measuring locations from existing inventory lists, export of work results (in .xls format) enables further processing in third-party programs
Smart: Carry out quick analyses directly on site with the testo Thermography App and share thermal images with colleagues straight away
Networked: Wireless transmission of readings from the Testo clamp meter directly into the thermal image – this enables you to document the load status directly in the thermal image when checking switching cabinets, for example, and to reliably assess the condition of the system
Intuitive operation via touchscreen and joystick

Building energy specialists will benefit even more.

Produce a professional report quickly and easily: The report wizard guides you step by step through the report creation process using stored standard templates. Or you can use the report designer to create customized templates
Clever: The humidity mode visualizes the risk of mould at thermal weak spots directly in the thermal image using traffic light colors (red, yellow, green)
Smart: Thermography and live streaming – with the testo Thermography App, your customer can conveniently follow the measurement on a smartphone/tablet
Networked: Wireless transmission of readings from the optional humidity probe live in humidity mode – your values are always up to date, e.g. when you change rooms
Flexible: Interchangeable lenses and manual focus for sharper images and more accurate results from different distances

Technical Data

Ambient Condition

Operating temperature

-15 to +50 °C

Storage temperature

-30 to +60 °C

Air humidity

20 to 80 %RH non-condensing

Housing protection class

IP54

Vibration

2G

Image output visual

Image size

at least 3.1 MP

Minimum focus distance

0.5 m

Imager equipment

Full screen mode

Included

JPEG storage

Included

Video streaming

via Wi-Fi with testo Thermography App

Standard lens

42° x 30°

Digital camera

Included

Interface

USB 2.0 Micro B

WLAN Connectivity

Communication with the testo Thermography App wireless module Bluetooth/Wi-Fi (EU, EFTA, USA, AUS, CDN, TR)

Bluetooth

Measurement value transfer from thermohygrometer testo 605i, clamp meter testo 770-3 (optional); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey

Laser

Laser marker

Imager storage

File format image

.bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls

Storage device

Internal Memory (2.8 GB)

Infrared image output

Spectral range

7.5 to 14 µm

Infrared resolution

320 x 240 pixel

Thermal sensitivity

60 mK

Field of view

42° x 30°

Minimum focus distance

<0.5 m

SuperResolution (Pixel)

640 x 480 pixels

SuperResolution (IFOV)

1.3 mrad

Image refresh rate

9 Hz

Focus

Fixed focus

Measurement

Measuring range

-30 to +100°C; 0 to +650°C

Accuracy

±2 °C, ±2 % of m.v.

Emissivity

0.01 to 1

Reflected temperature

Standard lens

Digital camera

manual

testo ε-Assist

Included

Measuring function

Solar mode – manual

Input solar radiation

Analysis function

Mean point measurement, hot/cold-spot recognition, Delta T, area measurement (min-max on area)

Electrical mode - manual

Input current voltage power

IFOV warner

Included

Humidity mode - manual

Included

testo ScaleAssist

Included

Humidity measurement with humidity measuring instrument

Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey

Electrical measurement with clamp meter

Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey

Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Operating time

4.0 h

Mains operation

yes

Charging options

In instrument / charger (optional)

General technical data

Vibration

2G

Product colour

Black

Display ligthing

bright / normal / dark

Physical specification

Product-/housing material

PC - ABS

Weight

510 g

Dimensions

219 x 96 x 95 mm

Accessories/ Probes

Battery-charging station, desktop charging station for optimizing the charge time

Order Number:0554 1103

Request For price

Emission tape for measurements on reflective surfaces (roll, length: 10 m, width: 25 mm)

Order Number: 0554 0051

Request For price

APPLICATIONS

Preventive maintenance

Ideal for the early identification of imminent malfunctions or defects on plants and machines: Reliably record temperature increases with a thermal imager.
Fast detection of critical thermal status (so-called HotSpots) during continuing operation
Avoid expensive damage, downtimes and fire risks on plants and machines
Electrical maintenance
Test switching cabinets, electrical conditions, photovoltaic plants
Evaluate heat status in low, medium and high voltage plants
Mechanical maintenance
Identify wear on machines
Test motors, bearings, shafts

Detecting structural defects and ensuring construction quality

Detect potential building defects, prove quality and the implementation of construction measures without contact – with the help of thermal images
Test air-tightness of windows and doors
Locate insulation errors and cold bridges in a building shell
Detect and visualize mould-risk areas

Professional energy consultation

Analyze building shells, evaluate energy efficiency, identify energy-saving potential with a thermal imager from Testo
Easy recording and documentation of energy loss from buildings
Prove faulty insulation and cold bridges without contact, and visualize them in an infrared image
Localize untight spots in new buildings quickly and easily in combination with Blower Door

Preventing mould formation

Localize mould-risk areas quickly and easily: These areas are presented in red in the imager display when the imager is in humidity mode.

Easy checking of heating systems and installations

test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
Localization of the course of heating loops in underfloor heating systems
Testo radiators for silting
Measure flow and return temperatures

Localize pipe ruptures

Reliably determine pipe ruptures with the help of a thermal imager – without unnecessarily opening walls and floors
Precise localization of leakages in underfloor heating and other inaccessible pipe systems

Locating leaks in flat roofs

Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation

More reliability in quality assurance and production monitoring

A Testo thermal imager supports in process control and product quality asurance
Identify foreign bodies in production processes and anomalies in the heat distribution of components quickly and without contact
Fast and easy monitoring of filling level in closed liquid tanks
