Thermal Imaging
Click to enlarge
Home TESTO Thermal Imagers Thermal Imager- Testo 871
Conductivity Transmitter-CombiLyz AFI4 Login to see prices
Back to products
Infrared Thermometer-Testo805i Login to see prices
Testo

Thermal Imager- Testo 871

Login to see prices

Make: TESTO (Made in Germany)
Model Code: TESTO 871
Part Code: 0560 8712
Order Code: KLSTE09105606081

The testo 871 thermal imager combines high infrared resolution with professional measuring performance and easy handling. Its high-quality pixel detector, an integrated digital camera and, last but not least, the innovative functions are the features that impress. The testo Thermography App enables the testo 871 to offer smart thermography to meet professional requirements in industry and trade. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Features:

✔   Very good image quality: IR resolution of 240 x 180 pixels, via integrated testo Super Resolution Technology 480 x 360 pixels

✔   Wireless networking: wireless transmission of readings from the testo 770-3 clamp meter and the testo 605i thermohygrometer (both available separately)

✔   Large temperature measuring range from -30°C to +650°C

✔   Smart: the free testo Thermography App enables you to write and send reports on site, as well as saving them online, and lots more.

SKU: KLSTE09105606081
Brand Category: Testo (Germany)
Product Category: Electrical maintenance, Mechanical maintenance
Warranty: 2 Years (against manufacturing defects only)
Note: Return policy not applicable

Add to wishlist
Categories: TESTO, Thermal Imagers Tag: Thermal Imager
Share:
  • Description
  • Technical Data
  • Accessories/ Probes
  • APPLICATIONS
  • Downloads
  • Supply/ Delivery Scope
Description

Together with our experienced specialists, we developed the testo 871 thermal imager to allow you to operate fast and simply using professional thermal imaging technology. Its useful capabilities allow you to create infrared photos that are error-free and objectively comparable. With the IFOV warner, testo-Assist, and testo ScaleAssist, you may minimise measurement mistakes and establish optimal emissivity () and reflected temperature (RTC) settings for building thermography, as well as colour scale.

The testo 871 thermal imager– smart and networked

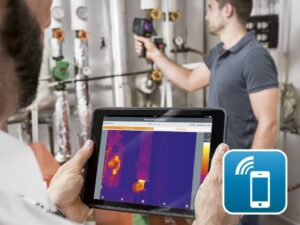

The testo 871 thermal imager connects with your mobile terminal devices wirelessly through WLAN. The testo Thermography App for iOS and Android allows you to write and submit reports on the spot, save them online, and use your smartphone or tablet as a secondary display or for remote control.

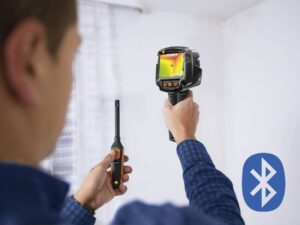

When used in conjunction with the compatible 770-3 clamp metre and the testo 605i thermohygrometer, the testo 871 produces even more interesting thermal pictures. Both are available separately, so get them along with your testo 871 right now. Both measuring tools’ measurement results may be simply transferred over Bluetooth. The testo 770-3 clamp meter’s extra output, current, and voltage readings allow for a more accurate interpretation of observed temperatures.

Areas of application of the testo 871 thermal imager

Detect leaks, locate thermal bridges, detect structural flaws, determine overheated connections, and analyse mould damage. The testo 871 thermal imager is suited for use in commerce and industry for everyday maintenance and installation operations. Maintenance and problem detection are quick, easy, and reliable.

Technical highlights of the testo 871 thermal imager

Really simple operation with impressive professional thermal imaging technology: the testo 871 thermal imager has the following impressive features:

  • Very good image quality due to high resolution: 43,200 temperature measuring points for precise thermography. Infrared resolution of 240 x 180 pixels – extendible to 480 x 360 pixels via integrated SuperResolution Technology
  • Detecting temperature differences from 0.09°C
  • The testo Thermography App enables you to write reports on site, save them online and send them by e-mail, as well as allowing you to use mobile terminal devices as a second display or for remote control
  • Wireless communication thanks to Bluetooth – this means you can also wirelessly integrate the readings of the compatible testo 770-3 clamp meter and testo 605i thermohygrometer
  • Built-in digital camera generates a real image in parallel to the thermal image
  • Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
  • The testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
  • The testo ɛ-Assist ensures the correct measurement result by automatically determining and setting the emissivity and reflected temperature
  • The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure
  • Pro software for image evaluation on the PC
  • You can choose to save thermal images as JPEGs

........ .

Technical Data

Technical Data

Termovisores garantia

EU-/EG-guidelines

RED: 2014/53/EU; EMC: 2014/30/EU

Infrared image output

Infrared resolution

240 x 180 pixels

Thermal sensitivity

90 mK

Field of view

35° x 26°

Minimum focus distance

<0.5 m

Geometric resolution (IFOV)

2.6 mrad

SuperResolution (Pixel)

480 x 360 pixels

Image refresh rate

1.6 mrad

Focus

Fixed focus

Spectral range

7.5 to 14 µm

Image output visual

Image size

at least 3.1 MP

Minimum focus distance

0.5 m

Image presentation

Display type

8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)

Display option

IR image / real image

Colours

4 (iron, rainbow, cold-hot, grey)

Measurement

Measuring range

-30 to +100 °C; 0 to +650 °C

Accuracy

±2 °C, ±2 % of mv

Emissivity

0.01 to 1

Reflected temperature

manual

testo ε-Assist

Included

Measuring function

Solar mode – manual

Input solar radiation

Analysis function

Mean point measurement, hot/cold-spot recognition, Delta T

IFOV warner

Included

Humidity mode - manual

Included

testo ScaleAssist

Included

Humidity measurement with humidity measuring instrument

Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey

Electrical measurement with clamp meter

Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey

Imager equipment

Full screen mode

Included

JPEG storage

Included

Video streaming

via Wi-Fi with testo Thermography App

Standard lens

Standard lens

Digital camera

Included

Interface

USB 2.0 Micro B

WLAN Connectivity

Communication with the testo Thermography App wireless module Bluetooth/Wi-Fi (EU, EFTA, USA, AUS, CDN, TR)

Bluetooth

Measurement value transfer from thermohygrometer testo 605i, clamp meter testo 770-3 (optional); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey

Imager storage

File format image

.bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls

Storage device

Internal Memory (2.8 GB)

Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Operating time

4.0 h

Vibration

2G

Storage temperature

-30 to +60 °C

Operating temperature

-15 to +50 °C

General technical data

Vibration

2G

Product colour

Black

Display ligthing

bright / normal / dark

Physical specification

Product-/housing material

PC - ABS

Weight

510 g

Dimensions

219 x 96 x 95 mm

Accessories/ Probes

Accessories/ Probes

0554-1103-p-ac-the-004571_prl

Battery-charging station, desktop charging station for optimizing the charge time

Order Number:0554 1103

Request For price
0554-0051-p-ac-the-002082_prl

Emission tape for measurements on reflective surfaces (roll, length: 10 m, width: 25 mm)

Order Number: 0554 0051

Request For price

APPLICATIONS

APPLICATIONS

Preventive maintenance

  • Ideal for the early identification of imminent malfunctions or defects on plants and machines: Reliably record temperature increases with a thermal imager.

    • Fast detection of critical thermal status (so-called HotSpots) during continuing operation
    • Avoid expensive damage, downtimes and fire risks on plants and machines

    Electrical maintenance

    • Test switching cabinets, electrical conditions, photovoltaic plants
    • Evaluate heat status in low, medium and high voltage plants

    Mechanical maintenance

    • Identify wear on machines
    • Test motors, bearings, shafts


Detecting structural defects and ensuring construction quality

  • Detect potential building defects, prove quality and the implementation of construction measures without contact – with the help of thermal images
  • Test air-tightness of windows and doors
  • Locate insulation errors and cold bridges in a building shell
  • Detect and visualize mould-risk areas

Preventing mould formation

  • Localize mould-risk areas quickly and easily: These areas are presented in red in the imager display when the imager is in humidity mode

Easy checking of heating systems and installations

  • test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
  • Localization of the course of heating loops in underfloor heating systems
  • Testo radiators for silting
  • Measure flow and return temperatures

Localize pipe ruptures

  • Reliably determine pipe ruptures with the help of a thermal imager – without unnecessarily opening walls and floors
  • Precise localization of leakages in underfloor heating and other inaccessible pipe systems

Locating leaks in flat roofs

  • Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation

Downloads

Downloads

Product Brochures
➤ Datasheet testo 871 (application/pdf, 308 KB)

Manuals
➤ Instruction manual testo 871 (PDF, 1.8 MB)

Supply/ Delivery Scope

Supply/ Delivery Scope

Testo 871 thermal imager with radio module for Bluetooth/WLAN, USB cable, mains unit, lithium-ion rechargeable battery, pro software IRSoft (free download), 3 x testo ε-Markers, commissioning instructions, short instructions, calibration protocol and case

You may also like…

Sold out
Compare
Quick view
Add to wishlist

Thermal Imager- Testo 865

Login to see prices
Sold out
Compare
Quick view
Add to wishlist

Thermal imager – Testo 872

Login to see prices
Sold out
thermal imager
Compare
Quick view
Add to wishlist

Thermal Imager – Testo 868

Login to see prices
Sold out
Compare
Quick view
Add to wishlist

Thermal Imager -Testo 883

Login to see prices

Related products

Sold outHot
testo 440
Compare
Quick view
Add to wishlist

IAQ Instrument-Testo 440

Login to see prices
Sold out
Compare
Quick view
Add to wishlist

Pocket Sized RPM Meter-Testo 460

Login to see prices
Sold out
Compare
Quick view
Add to wishlist

Thermohygrometer-Testo605i

Login to see prices
Sold out
IAQ instrument
Compare
Quick view
Add to wishlist

Universal IAQ Instrument-Testo 400

Login to see prices
Sold out
Compare
Quick view
Add to wishlist

Tachometer – Testo 465

Login to see prices
Sold out
Compare
Quick view
Add to wishlist

Differential Pressure-Testo510i

Login to see prices
Sold out
Compare
Quick view
Add to wishlist

Temperature Data Logger-Testo175 T2

Login to see prices
Sold out
Temperature Humidity Data Logger
Compare
Quick view
Add to wishlist

Temp-Humidity Data Logger-Testo175H1

Login to see prices

KELFOS has become a leader in the area of Test and Measurements Instruments & Sensors, Medical Equipment’s like Temperature, Pressure, Humidity, Level, Flow, Differential pressure & Liquid Analysis and many more.

Recent Posts
  • wellkonix wastewater
    Sour Water Ph Monitoring.
    June 3, 2023 No Comments
  • e- black and white
    How Does An Oxygen Sensor Work?
    June 1, 2023 No Comments
USEFUL LINKS
Home | Products | Parameters | Solutions
Applications | Company | Resources
Service & Support | Contact Us
Sitemap | Privacy Policy | Imprint
Return Policy | Legal Notice
Terms & Conditions
CONTACT US

Corporate & Sales Office

Kelfos Instruments India Pvt. Ltd

Aston Plaza, 303 & 304, 3rd Floor, Narhe Ambegaon Road, Ambegaon BK, Pune -411046, Maharashtra, India
Phone: +91 7066222267 /
+91 7219369071
  Email: info@kelfos.in |
sales@kelfos.in

Copyright © 2021 Kelfos Instruments
  • Menu
  • Categories
  • TESTO
  • BAUMER
  • JUMO
  • Home
  • Products
  • Parameters
  • Solutions
  • Applications
  • Company
  • Resources
  • Service & Support
  • Contact Us
  • Wishlist
  • Compare
  • Login / Register
Cookies that are essential for technical reasons are set on this webpage so we can provide users with our offers. A cookie that stores your current privacy settings is also set (selection cookie). With the exception of the selection cookie mentioned above, technically non-essential cookies and tracking mechanisms that enable us to provide you with a superior user experience and customised offers (marketing cookies and tracking mechanisms) are only used if you have given prior consent to such use. Please see our privacy policy for details in this regard.
More info Accept
Thermal Imaging

Thermal Imager- Testo 871

Rated 0 out of 5
Login to see prices
Compare
Add to wishlist
  • Phone

  • Whatsapp

  • Email

  • Enquiry Form
