thermal imager
Click to enlarge
Home TESTO Thermal Imagers Thermal Imager – Testo 868
Conductivity Transmitter-CombiLyz AFI4 Login to see prices
Back to products
Infrared Thermometer-Testo805i Login to see prices
Testo

Thermal Imager – Testo 868

Login to see prices

Make: TESTO (Made in Germany)
Model Code: TESTO 868
Part Code: 0560 8681
Order Code: KLSTE09105606081

The testo 868 thermal imager is characterized by its professional measuring performance and its easy handling. It has the best thermal image quality in its class, an integrated digital camera and impressive smart functions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Features:

✔    Very good image quality: IR resolution of 160 x 120 pixels, via integrated testo SuperResolution Technology 320 x 240 pixels

✔    Large temperature measuring range from -30°C to +650°C

✔    Smart and networked: the free testo Thermography App enables you to write and send reports on site, as well as saving them online, and lots more.

✔    Integrated digital camera

SKU: KLSTE09105606081
Brand Category: Testo (Germany)
Product Category: Electrical maintenance, Mechanical maintenance
Warranty: 2 Years (against manufacturing defects only)
Note: Return policy not applicable

Add to wishlist
Categories: TESTO, Thermal Imagers Tag: Thermal Imager
Share:
  • Description
  • Technical Data
  • Accessories/ Probes
  • APPLICATIONS
  • Downloads
  • Supply/ Delivery Scope
Description

With the testo 868 thermal imager, we’ve created a tool that helps work move faster and easier without sacrificing expert thermal imaging technology. Its useful capabilities allow you to create infrared photos that are error-free and objectively comparable. With the IFOV warner, testo-Assist, and testo Scale Assist, you may minimize measurement mistakes and establish optimal emissivity () and reflected temperature (RTC) settings for building thermography, as well as color scale.

The testo 868 thermal imager– smart and networked

Wireless connection with your mobile terminal device is possible with the testo 868 thermal imager through WLAN. You may create and submit reports directly on site, as well as save them online, using the testo Thermography App for iOS and Android. You can also use your smartphone or tablet as a second display or for remote control.

Areas of application of the testo 868 thermal imager

Detect leaks, hot connections, thermal bridges, and structural flaws, among other things. The testo 868 thermal imager was designed for use in commerce and industry for everyday maintenance and installation operations. When identifying problems and doing maintenance, it allows for speedy and reliable work.

Technical highlights of the testo 868 thermal imager

Really simple operation with impressive thermal imaging technology: the testo 868 thermal imager has the following impressive features:

  • Very good image quality due to high resolution: 19,200 temperature measuring points for precise thermography. Infrared resolution of 160 x 120 pixels – extended to 320 x 240 pixels via integrated Super Resolution Technology
  • Visualizing temperature differences of 0.10 °C
  • The testo Thermography App enables you to write reports on site, save them online and send them by e-mail, as well as allowing you to use mobile terminal devices as a second display or for remote control
  • Built-in digital camera generates a real image in parallel to the thermal image
  • Automatic hot-cold spot recognition directly displays critical temperature conditions
  • The testo Scale Assist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behavior of buildings
  • The testo ɛ-Assist ensures the correct measurement result by automatically determining and setting the emissivity and reflected temperature
  • The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure
  • Pro software for image evaluation on the PC
  • You can choose to save thermal images as JPEGs

.

Technical Data

Technical Data

Ambient Condition

Operating temperature

-15 to +50 °C

Storage temperature

-30 to +60 °C

Air humidity

20 to 80 %RH non-condensing

Housing protection class

IP54

Image presentation

Display type

8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)

Display option

IR image only

Colours

4 (iron, rainbow, cold-hot, grey)

Imager equipment

Full screen mode

Included-40 to +150 °C

JPEG storage

Included

Video streaming

via USB

Standard lens

31° x 23°

Interface

USB 2.0 Micro B

Imager storage

File format image

.bmt; .jpg; export option in .bmp; .jpg; .png; .xls; .csv

Storage device

Internal Memory (2.8 GB)

Infrared image output

Spectral range

7.5 to 14 µm

Infrared resolution

160 x 120 pixels

Thermal sensitivity

120 mK

Field of view

31° x 23°

Minimum focus distance

<0.5 m

Geometric resolution (IFOV)

3.4 mrad

SuperResolution (Pixel)

320 x 240 pixels

SuperResolution (IFOV)

2.1 mrad

Image refresh rate

9 Hz

Focus

Fixed focus

Measurement

Measuring Range

-20 to +280 °C

Accuracy

Included

testo ScaleAssist

0.01 to 1

Reflected temperature

manual

Measuring function

Analysis function

Mean point measurement, hot/cold-spot recognition, Delta T

IFOV warner

Included

testo ScaleAssist

Included

PC software

System requirements

Windows 10; Windows 8; Windows 7

Physical specification

Dimensions

219 x 96 x 95 mm

Weight

510 g

Air humidity

20 to 80 %RH non-condensing

Product-/housing material

PC - ABS

Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Operating time

4.0 h

Mains operation

yes

Termovisores garantia

EU-/EG-guidelines

EMC: 2014/30/EU

General technical data

Product colour

Black

Display ligthing

bright / normal / dark

Display size

2 lines

Accessories/ Probes

Accessories/ Probes

Battery-charging station, desktop charging station for optimizing the charge time

Order Number:0554 1103

Get Price

Emission tape for measurements on reflective surfaces (roll, length: 10 m, width: 25 mm)

Order Number: 0554 0051

Get Price

APPLICATIONS

APPLICATIONS

Preventive maintenance

  • Ideal for the early identification of imminent malfunctions or defects on plants and machines: Reliably record temperature increases with a thermal imager.

    • Fast detection of critical thermal status (so-called HotSpots) during continuing operation
    • Avoid expensive damage, downtimes and fire risks on plants and machines

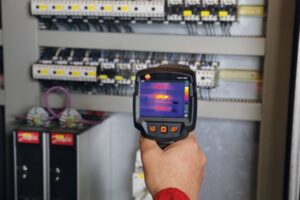

    Electrical maintenance
    • Test switching cabinets, electrical conditions, photovoltaic plants
    • Evaluate heat status in low, medium and high voltage plants
    Mechanical maintenance
    • Identify wear on machines
    • Test motors, bearings, shafts


Detecting structural defects and ensuring construction quality

  • Detect potential building defects, prove quality and the implementation of construction measures without contact – with the help of thermal images
  • Test air-tightness of windows and doors
  • Locate insulation errors and cold bridges in a building shell
  • Detect and visualize mould-risk areas

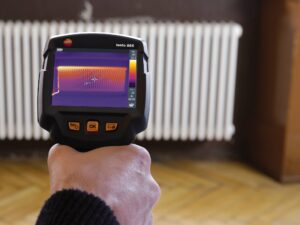

Easy checking of heating systems and installations

  • test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
  • Localization of the course of heating loops in underfloor heating systems
  • Testo radiators for silting
  • Measure flow and return temperatures

Localize pipe ruptures

  • Reliably determine pipe ruptures with the help of a thermal imager – without unnecessarily opening walls and floors
  • Precise localization of leakages in underfloor heating and other inaccessible pipe systems

Locating leaks in flat roofs

  • Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation

Downloads

Downloads

Product Brochures
➤ Datasheet testo 868 (application/pdf, 308 KB)

Manuals
➤ Instruction manual testo 868  (PDF, 1.8 MB)

Supply/ Delivery Scope

Supply/ Delivery Scope

Testo 868 thermal imager with radio module for WLAN, USB cable, mains unit, lithium-ion rechargeable battery, pro software IR Soft (free download), 3 x testo ε-Markers, commissioning instructions, short instructions, calibration protocol and case.

You may also like…

Sold out
Compare
Quick view
Add to wishlist

Thermal imager – Testo 872

Login to see prices
Sold out
Compare
Quick view
Add to wishlist

Thermal Imager- Testo 865

Login to see prices
Sold out
Compare
Quick view
Add to wishlist

Thermal Imager -Testo 883

Login to see prices

Related products

Sold out
Compare
Quick view
Add to wishlist

Mini Temp Data Logger-Testo174T

Login to see prices
Sold out
Temperature Data logger
Compare
Quick view
Add to wishlist

Temperature Data Logger-Testo176 T1

Login to see prices
Sold out
Compare
Quick view
Add to wishlist

Temperature Data Logger-Testo175 T2

Login to see prices
Sold outHot
testo 440
Compare
Quick view
Add to wishlist

IAQ Instrument-Testo 440

Login to see prices
Sold out
Compare
Quick view
Add to wishlist

Current & Voltage Tester-Testo755-1

Login to see prices
Sold outHot
Compare
Quick view
Add to wishlist

Digital Thermohygrometer– Testo608 H1

Login to see prices
Sold out
Compare
Quick view
Add to wishlist

Smart Digital Manifold-Testo 557s

Login to see prices
Sold outHot
Non-contact voltage tester
Compare
Quick view
Add to wishlist

Non-Contact Voltage Tester-Testo 745

Login to see prices

KELFOS has become a leader in the area of Test and Measurements Instruments & Sensors, Medical Equipment’s like Temperature, Pressure, Humidity, Level, Flow, Differential pressure & Liquid Analysis and many more.

Recent Posts
  • wellkonix wastewater
    Sour Water Ph Monitoring.
    June 3, 2023 No Comments
  • e- black and white
    How Does An Oxygen Sensor Work?
    June 1, 2023 No Comments
USEFUL LINKS
Home | Products | Parameters | Solutions
Applications | Company | Resources
Service & Support | Contact Us
Sitemap | Privacy Policy | Imprint
Return Policy | Legal Notice
Terms & Conditions
CONTACT US

Corporate & Sales Office

Kelfos Instruments India Pvt. Ltd

Aston Plaza, 303 & 304, 3rd Floor, Narhe Ambegaon Road, Ambegaon BK, Pune -411046, Maharashtra, India
Phone: +91 7066222267 /
+91 7219369071
  Email: info@kelfos.in |
sales@kelfos.in

Copyright © 2021 Kelfos Instruments
  • Menu
  • Categories
  • TESTO
  • BAUMER
  • JUMO
  • Home
  • Products
  • Parameters
  • Solutions
  • Applications
  • Company
  • Resources
  • Service & Support
  • Contact Us
  • Wishlist
  • Compare
  • Login / Register
Cookies that are essential for technical reasons are set on this webpage so we can provide users with our offers. A cookie that stores your current privacy settings is also set (selection cookie). With the exception of the selection cookie mentioned above, technically non-essential cookies and tracking mechanisms that enable us to provide you with a superior user experience and customised offers (marketing cookies and tracking mechanisms) are only used if you have given prior consent to such use. Please see our privacy policy for details in this regard.
More info Accept
thermal imager

Thermal Imager – Testo 868

Rated 0 out of 5
Login to see prices
Compare
Add to wishlist
  • Phone

  • Whatsapp

  • Email

  • Enquiry Form
