Thermal Imager- Testo 865
Make: TESTO (Made in Germany)
Model Code: TESTO 865
Part Code: 0560 8650
Order Code: KLSTE09105606081
The testo 865 thermal imager combines all the important properties required for high-quality thermographic measurement – it is accurate, robust, fast and reliable. The testo 865 provides high-quality thermography at an affordable price and keeps going even in tough working conditions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.
Features:
✔ Very good image quality: IR resolution of 160 x 120 pixels, via integrated testo SuperResolution Technology 320 x 240 pixels
✔ Very good measuring accuracy of ±2°C
✔ Visualizing temperature differences from 0.12°C
✔ Automatic detection of hot and cold spots
SKU: KLSTE09105606081
Brand Category: Testo (Germany)
Product Category: Electrical maintenance, Mechanical maintenance
Warranty: 2 Years (against manufacturing defects only)
Note: Return policy not applicable
The testo 865 thermal imager features professional technology and focuses on tasks that contractors use on a regular basis. The testo is an easy-to-use thermal imager that is designed for quick and efficient work. You will always create the perfect infrared image with the testo Scale Assist features assuring optimal configuration of the thermal image scale for building thermography and the IFOV warner ensuring you prevent measurement mistakes.
Areas of application of the thermal imager
Detect leaks, hot connections, thermal bridges, and structural flaws, among other things. The thermal imager is suited for use in commerce and industry for everyday maintenance and installation operations. It allows for more efficient quality assurance and trustworthy production control.
Technical highlights of the testo 865 thermal imager
The testo 865 thermal imager stands out thanks to its easy operation and has the following impressive technical features:
- Very good image quality due to high resolution: 19,200 temperature measuring points ensure precise thermography. Infrared resolution of 160 x 120 pixels – via integrated Super Resolution Technology 320 x 240 pixels
- Visualize temperature differences from 0.12°C
- Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
- The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure
- Pro software for image evaluation on the PC
- You can choose to save thermal images as JPEGs
Technical Data
Termovisores garantia
EU-/EG-guidelines
EMC: 2014/30/EU; RED: 2014/53/EU
Infrared image output
Infrared resolution
160 x 120 pixels
Thermal sensitivity
100 mK
Field of view
31° x 23°
Minimum focus distance
<0.5 m
Geometric resolution (IFOV)
Geometric resolution (IFOV)
SuperResolution (Pixel)
320 x 240 pixels
SuperResolution (IFOV)
2.1 mrad
Image refresh rate
9 Hz
Focus
Fixed focus
Spectral range
7.5 to 14 µm
Image output visual
Image size
8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)
Minimum focus distance
0.5 m
Image presentation
Display type
.bmt; .jpg; export option in .bmp; .jpg; .png; .xls; .csv
Display option
IR image / real image
Colours
4 (iron, rainbow, cold-hot, grey)
Measurement
Measuring range
-30 to +100° C; 0 to +650° C
Accuracy
±2 °C, ±2 % of mv
Emissivity
0.01 to 1
testo ε-Assist
Included
Measuring function
Analysis function
Mean point measurement, hot/cold-spot recognition, Delta T
IFOV warner
Included
testo ScaleAssist
Included
Measuring function
Analysis function
Mean point measurement, hot/cold-spot recognition, Delta T
IFOV warner
Included
testo ScaleAssist
Included
Imager equipment
Full screen mode
Included
JPEG storage
Included
Video streaming
via Wi-Fi with testo Thermography App
Standard lens
31° x 23°
Digital camera
USB 2.0 Micro B
Interface
Included
WLAN Connectivity
Communication with the testo Thermography App; wireless module WLAN (EU, EFTA, USA, AUS, CDN, TR)
Imager storage
File format image
.bmt; export option in .bmp; .png; .csv; .xls; .jpg
Storage device
Internal Memory (2.8 GB)
Power supply
Battery type
Fast-charging, Li-ion battery can be changed on-site
Operating time
4.0 h
Mains operation
yes
Operating temperature
Operating temperature
Physical specification
Product-/housing material
PC - ABS
Weight
Weight
Dimensions
219 x 96 x 95 mm
General technical data
Product colour
Black
Display ligthing
bright / normal / dark
Accessories/ Probes
Battery-charging station, desktop charging station for optimizing the charge time
Order Number:0554 1103
Emission tape for measurements on reflective surfaces (roll, length: 10 m, width: 25 mm)
Order Number: 0554 0051
APPLICATIONS
Ideal for the early identification of imminent malfunctions or defects on plants and machines: Reliably record temperature increases with a thermal imager.Preventive maintenance
Electrical maintenance

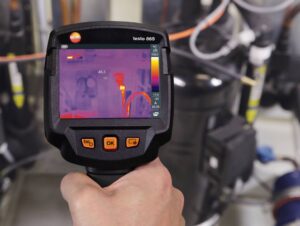

Mechanical maintenance

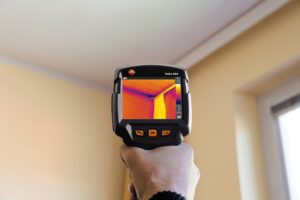

Detecting structural defects and ensuring construction quality
Easy checking of heating systems and installations
Localize pipe ruptures
Locating leaks in flat roofs
Downloads
Product Brochures
➤ Datasheet testo 865 (application/pdf, 308 KB)
Manuals
➤ Instruction manual testo 865 (PDF, 1.8 MB)
Supply/ Delivery Scope
Testo 865 thermal imager, including USB cable, mains unit, lithium-ion rechargeable battery, IR Soft professional software (free download), commissioning instructions, short instructions, calibration protocol and case.
