Temperature data logger for transport monitoring

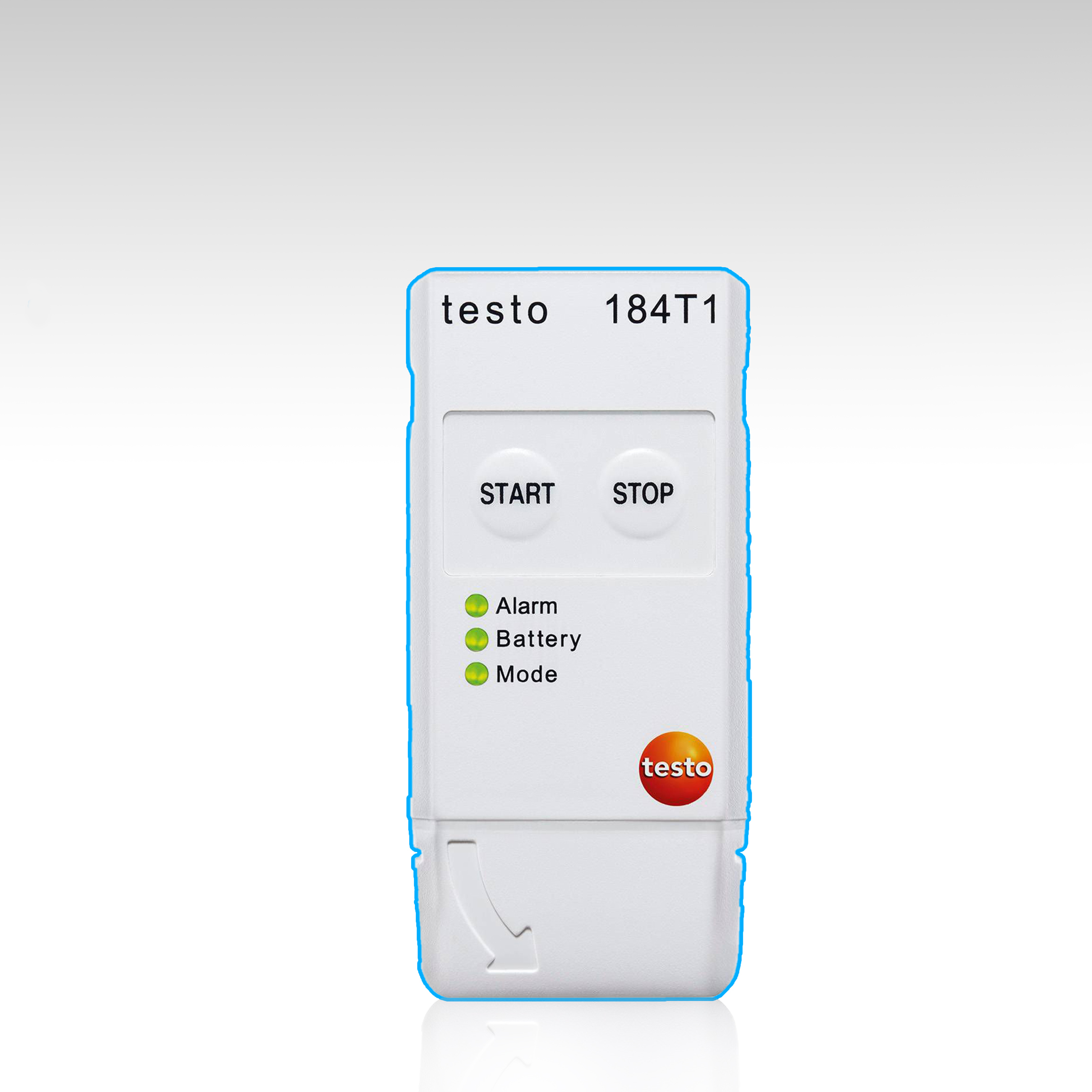

Temperature data logger for transport monitoring – testo 184 T1

Make: TESTO (Made in Germany)
Model Code: TESTO 184 T1
Part Code: 0572 1841
Order Code: KLSTE09105721841

Features:

✔ Operating time 90 days

✔ All in one temperature data logger: PDF measurement data, configuration file, acceptance test certificate 3.1 according to DIN ISO 10204 and instruction manual

✔ Immediate creation of a PDF report directly after connection to a computer

✔ Transport monitoring in compliance with GxP, 21 CFR Part 11, HACCP and EN 12830

SKU:KLSTE09105721841
Brand Category: Testo (Germany)
Product Category: Transport Data Logger
Warranty: 2 Years (against manufacturing defects only)

Description

Transport data logger testo 184 T1 are used to track the transportation of delicate items such as medications, groceries, and electronics for up to 90 days.

When they arrive at their destination, a quick glance at the LEDs will reveal whether the configured limit values have been met. To access detailed information, simply connect the logger to a PC and a PDF report with all important data is generated immediately. All required files and information are stored directly and securely in the Temperature data logger testo 184 T1 in order for you to work even more efficiently and conveniently with the data loggers: configuration file, acceptance test certificate 3.1 according to DIN ISO 10204, instruction manual, and PDF report of your recorded data.

The temperature data logger testo 184 T1’s measurement value store has a capacity of 16000 measurement values. The measurement rate can be set anywhere between 1 minute and 24 hours.

GxP, 21 CFR Part 11, HACCP, and EN 12830 are all met by testo 184 T1. Testo is an ISO 9001-certified organization that conducts internal and external audits to ensure compliance with the standards.

All advantages of Transport data logger testo 184 T1:

1. A clear indicator of an alarm

A quick glance at the LEDs will reveal whether limit values were exceeded during travel.

2. Easiest method of operation

The testo 184 T1 is simple to use and requires no specific training or prior knowledge: The “Start” button starts the data collection process. It comes to a halt when you say “Stop.”

3. The most straightforward configuration Each Temperature data logger testo 184 T1 comes with a configuration file that makes setting up the testo 184 T1 a breeze – no downloads, no installations, no user interface, and no hidden expenses.

4. Easy-to-understand readout

When the testo 184 T1 data logger is connected to a computer’s USB interface, a PDF report with the transport data is generated immediately. According to the PDF/A specification, this is acceptable for long-term archiving.

5. On-site mobile readout/printout
Wireless data transfer from the data logger to a Testo rapid printer (option) is also possible through NFC.

6. IT-protected
The testo 184 T1 data loggers operate without the need for software installation or download, ensuring that neither the firewall nor the virus scanner cause IT problems.

Technical Data

Temperature - NTC

Measuring Range

-35 to +70 °C

Accuracy

±0.5 °C

Resolution

0.1 °C

Reaction time

t90 = 30

Measuring rate

1 min to 24 h

General technical data

Weight

22 g

Dimensions

75 x 35 x 9 mm (LxWxH)

Operating temperature

-35 to +70 °C

Product-/housing material

ABS

Battery type

9V block battery, 6F22

Protection class

IP67

System requirements

Adobe® Acrobat Reader

Product colour

white

Standards

EN 12830; CE 2014/30/EU; DIN EN 50581:2013; DIN EN 61326-1:2013; 2011/65/EU

Certificate type

HACCP International certification

Channels

1 internal

Authorizations

CE; RTCA/DO-160G

Alarm function

by LED

Operating time

90 days from the first start of the programme (5-minute measurement cycle, -35 °C)

Battery type

Lithium battery non exchangeable

Interface

USB; NFC

Memory

16,000 measuring values

Storage temperature

-55 to +70 °C

Accessories/ Probes

APPLICATIONS

Monitoring and documentation of temperature, humidity and shock in food logistics

Handling foods involves danger to human health at all levels. In order to be able to eliminate them as far as possible, food companies must comply with an HACCP concept which guarantees food safety along the entire production chain – “from farm to fork”. The adherence to product-specific limit values and the uninterrupted monitoring of the cold chain are crucial. In many cases, the monitoring of humidity and shock, in addition to temperature, are relevant for the maintenance of food quality.
With the testo 184, quality managers in food logistics have six HACCP International-certified data loggers available to them, which monitor and document all critical parameters during the transport of foods. The data loggers testo 184 T1,T2, T3 and T4 have been additionally tested and certified according to EN 12830 by the TÜV Süd, and are therefore ideally suitable for the transport of refrigerated and deep-frozen foods.

Monitoring and documentation of temperature and humidity during the transport of flowers

Researchers discovered long ago that the temperature during the transport of cut flowers and green plants has a crucial influence on their quality. Since flowers are traded globally, and as it is not uncommon for flowers from Kenya, Tanzania or Ecuador to be sold in the USA, Germany or Russia, the monitoring of transport conditions during their often days-long journeys is essential.
Flowers must be transported neither too warm not too cold. The former results in the loss of blossoms and leaves, the latter involves cold damage, which negatively influences not only the appearance but also the longevity of the plants. Sufficient air humidity is furthermore also of significance for the quality of the flowers.
With the data loggers testo 184, measuring instruments are now available to you with which you can monitor and document temperature and humidity in the logistics of cut flowers and green plants quickly, easily and reliably.

Monitoring and documentation of temperature, humidity and shock in logistic services of all kinds

Providers of logistic service often take on the responsibility for expensive and sensitive products from the fields of pharmaceuticals, food, electronics or art. The wrong conditions during transport can lead to considerable losses of quality, right up to the complete devaluation of the monitored products.
With the help of the testo 184 data logger, the prescribed temperature and humidity limit values as well as the shock tolerance levels can be monitored during transport, and thanks to the automatic report creation, very easily analyzed and documented. This allows all doubts regarding the correct transport conditions to be eliminated.
Shock-sensitive products such as electronics, delicate machinery or certain bio-pharmaceuticals can be additionally monitored for the violation of previously defined shock limits with the help of the testo 184 G1.
Monitoring and documentation of temperature, humidity and shock in pharmaceutical logistics
Most pharmaceuticals must be continuously transported and stored at defined upper and lower temperature and humidity limit values, along the entire supply chain. A violation of these predefined upper and lower limit values can lead to irreversible alterations of the active ingredients or the composition of the medicaments.
However, not only medicaments and their active ingredients are endangered. Minus temperatures or extreme temperature fluctuations can also cause damage to containers or medical instruments. The consequence is the threat of spoilage of the entire goods, financial losses and damage to reputation.
In GxP-compliant quality management, the control of the entire cold chain, from production to delivery, is therefore a prerequisite, in order not only to ensure product quality, but also to prevent financial losses and damage to your reputation in the pharmaceutical industry.
With the testo 184 data loggers, your products can be protected from unnoticed gaps in the cold chain, and the entire distribution path monitored and documented simply, securely and compliantly with all common standards, guidelines and regulations.

Downloads

Product Brochures
➤ Datasheet testo 184 T1 (application/pdf, 308 KB)

Manuals
➤ Instruction manual testo 184 T1 (PDF, 1.8 MB)

Supply/ Delivery Scope

Temperature data logger testo 184 T1, including acceptance test certificate 3.1 according to DIN ISO 10204 (stored in testo 184 T1), battery and 1 piece double-sided adhesive tape for easy attachment of the data logger.
