PRO D0x – Multifunction handheld meter for DX – digital sensors
INTRODUCTION
PRO D01 (1-connector), PRO D05.2 (2-connector) and PRO D05.3 (3-connector) are high class professional multifunction handheld meters with a rich set of features, high grade robustness and operating comfort for safe and reliable use.
PRO D05.2 and PRO D05.3 also have data logging capabilities and a USB rechargeable battery system.
FEATURES
Display

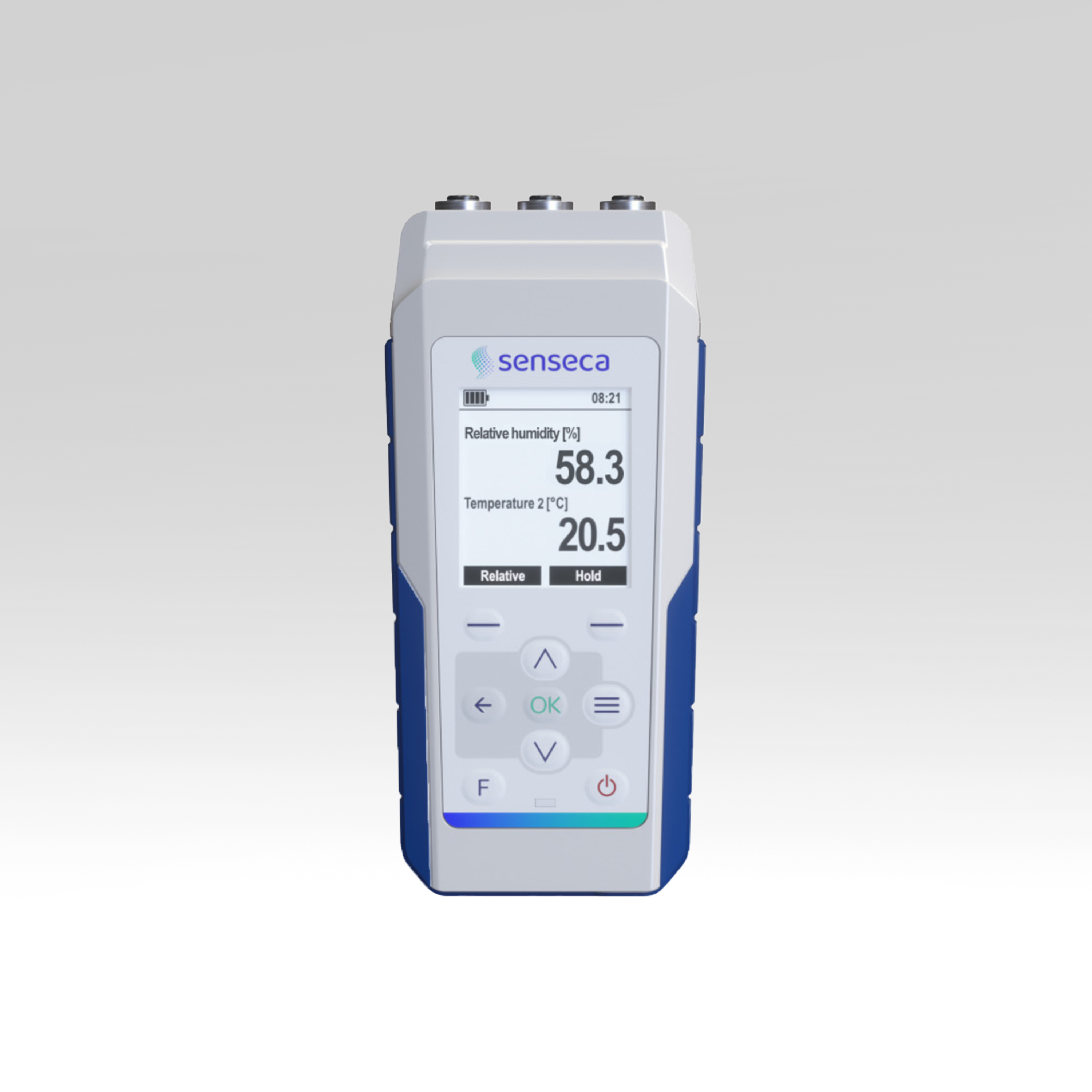

The multilingual large dot matrix/clear text LCD has ergonomic wide-angle visibility from daylight to darkness, thanks to the backlight. It displays either large scale values, statistical data or the live chart of measurement history.
The HOLD feature allows freezing the measurements on display, while the REL feature allows showing the measurement against the measured value.
Many units of measurement are available, depending on the connected probes.
Data Logging (only PRO D05)
Large storage capacity: up to 1 million data sets, file system based.
The logged data are store in CVS files that can be easily viewed connecting the instrument to a PC via USB: the instrument is seen by the PC as a mass storage device, the data can be read oud and evaluated without software necessarily needed. Automatic log with configurable interval.
The comfortable data management software ProXware is downloadable at senseca.com – for free.
The instruments integrate a Real Time Clock: date and time of each logged sample are stored.
Alarm
Configurable alarm thresholds and optionally hysteresis can be set.
LCD indication and buzzer activation when thresholds are exceeded.
CONFIGURATION & MEASUREMENT
Probes

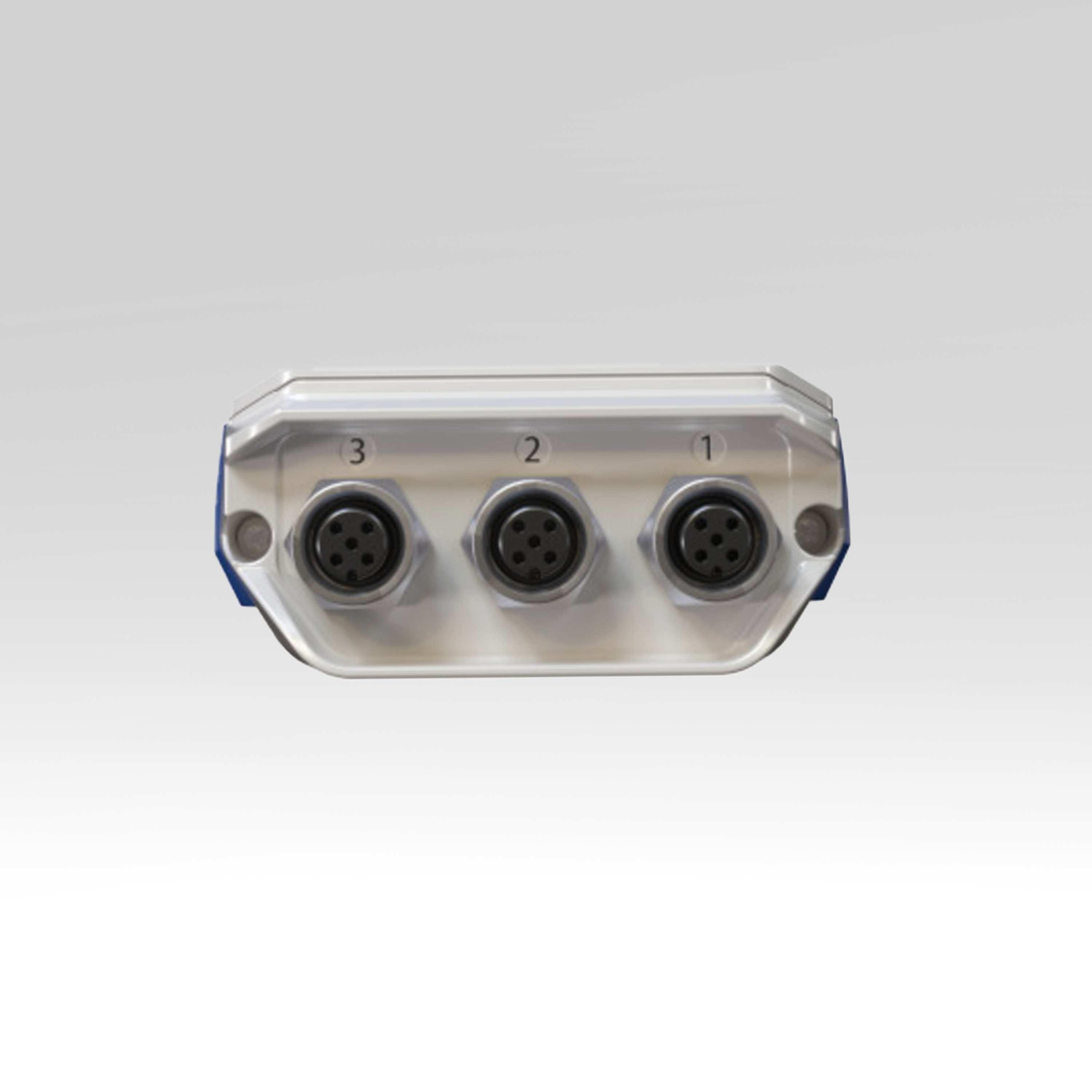

The meters communicate digitally with the probes of the DX series, allowing the use of longer probe cables (up to 10 m).
The wide range of digital probes available allows measuring temperature, pressure (absolute, relative and differential), humidity (relative, absolute, dew point and multiple calculated quantities); photo radiometric quantities, indoor air quality (CO2 and VOC index) and soil moisture.
The digital probes are supplied factory adjusted with adjustment data stored internally, allowing for interchangeability without the need for recalibration when changing the probes.
As soon as connected, the instruments switch supply from battery to USB.
Connection to PC
Via the USB C port, for viewing or downloading the files stored in the instrument internal memory (only PRO D05) or connecting to the application software ProXware.
Statistics
Detection of MIN, AVG (average) and MAX. The user can clear the statistical info to start a new statistical calculation.
