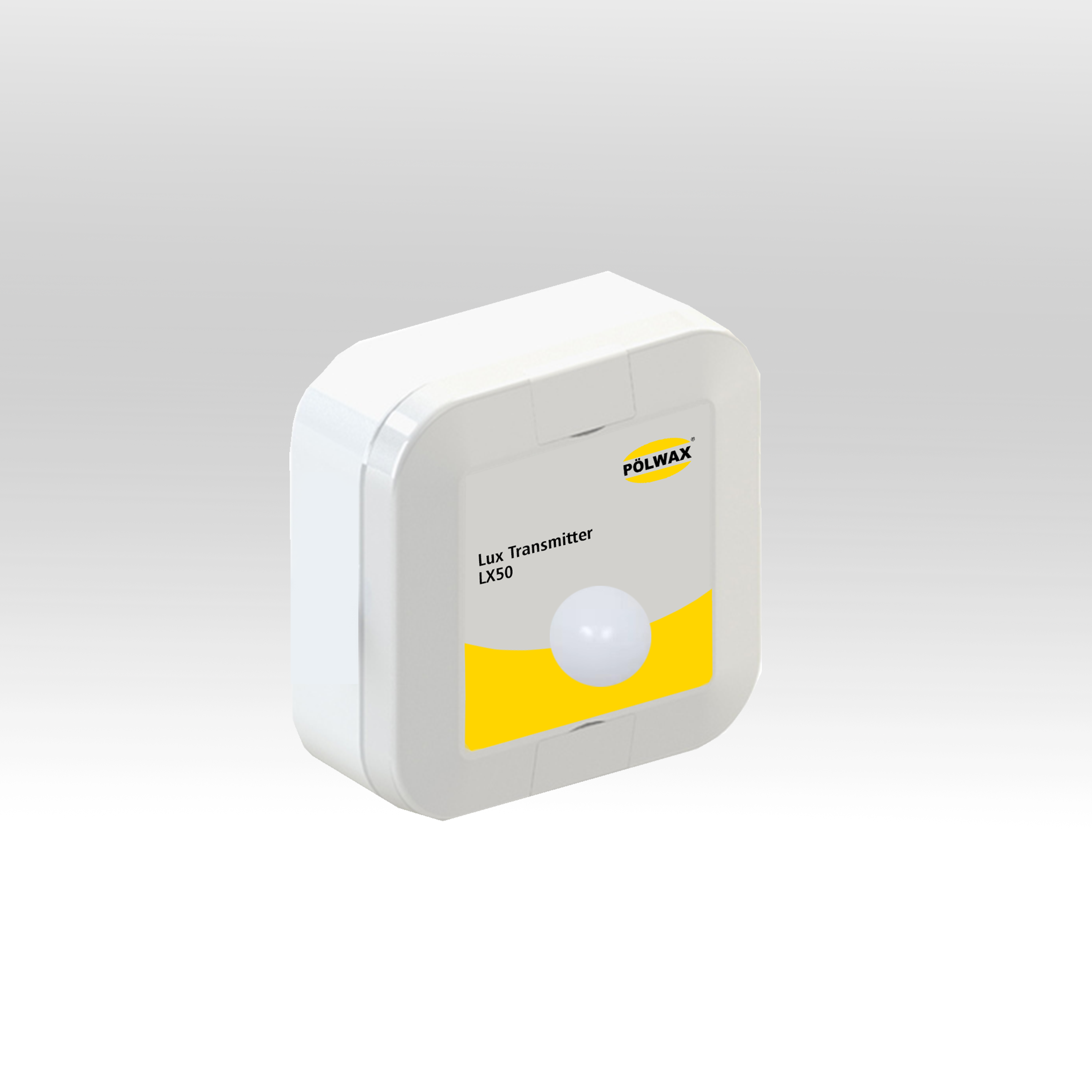

Polwax LX50 Transmitter

Features:

✔ Easy to Install and suitable for Wall Mounting

✔ High Accuracy and Stability

✔ Wide Measuring Range

✔ Ruggedized Enclosure

✔ Compact and Durable Design

✔ User-Friendly Configuration

The Polwax Lux Transmitter Model LX50 is a state-of the-art light intensity monitoring device designed to deliver high-precision lux measurement in various environments. It is engineered for industrial automation, environmental monitoring, and smart lighting applications.
The LX50 features advanced sensor technology that ensures accuracy and reliability while offering seamless integration with modern IoT systems via Modbus RTU (Rs485), Analog (4-20mA, 0-10V), and MQTT over Wi-Fi. With its robust IP65-rated housing, the LX50 can be deployed in both indoor and outdoor environments, making it suitable for smart lighting, greenhouses, warehouses, museums, and factory automation. Its real-time data transmission capabilities allow industries to optimize lighting conditions, reduce energy consumption, and enhance operational efficiency.

Description

Industrial Lux / Light Intensity Transmitter
Atmos Series – LX50

Equipped with a high-precision photodiode sensor, the Polwax LX50 Transmitter provides stable and responsive light level readings with ±2% accuracy and <1 second response time. It supports versatile output signals including 4–20mA, 0–10V, and RS485 Modbus RTU, allowing seamless integration into SCADA systems, BMS platforms, and IoT-based lighting controls. Built with a robust IP65-rated enclosure, the LX50 is suitable for both indoor and outdoor installations, offering protection against dust, moisture, and challenging weather conditions. Its energy-efficient design, combined with user-friendly configuration and plug-and-play setup, makes it ideal for real-world deployment in critical lighting control scenarios.

Why Choose Polwax lux Transmitter?
High-precision photodiode sensor for accurate lux measurement.
Multiple output options: 4-20mA, 0-10V & RS485 (Modbus RTU).
Real-time data monitoring for dynamic lighting control applications.
Industrial-grade durability with an IP65-rated enclosure.
Seamless IoT connectivity for remote monitoring and automation.
Energy-efficient design with low power consumption.
Easy installation with plug-and-play configuration.

Technical Data

Technical Specifications

Measurement Range

0 to 65000 Lux / 0 to 200,000 Lux

Accuracy

±2% of reading

Resolution

1 Lux

Response Time

≤30 seconds

Sensor Type

High-precision photodiode

Output Options

4-20mA, 0-10V, RS485 (Modbus RTU)

Power Supply

12V-24V DC

Response Time

< 1 second

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 80°C

Humidity Range

0-95% RH (non-condensing)

Protection Rating

Ip65 (water-resistant and dustproof)

Output Signals

Rs485 (Modbus RTU), 4-20mA, 0-5V, 0-10V

Mounting Options

Wall mount, Pole mount, DIN rail

Communication Protocols

MODBUS RTU

Housing Material

Industrial-grade ABS/Aluminum alloy

Process Connection

High-strength, dustproof, waterproof

APPLICATIONS

Municipal Smart City Authority
By installing the Polwax LX50 across the city, authorities achieved real-time lux monitoring and automatic streetlight adjustment based on ambient light. MQTT connectivity ensured seamless integration with the cloud-based smart lighting system.

Agricultural Research Facility
The Polwax Lux Transmitter LX50 was installed inside the greenhouse to monitor light levels continuously. The RS485 Modbus RTU interface allowed real-time data acquisition, enabling automated control of artificial lighting to supplement natural sunlight.

Industrial Automation
The Polwax LX50 continuously monitors ambient light levels with high precision, enabling real-time control of artificial lighting based on actual requirements. This prevents over-illumination and under-lighting in key operational zones.
