GE135 pH-electrode

Features:

✔ Measuring range: 0 … 14 pH, 0 … 80 °C

✔ Integrated temperature sensor

✔ Electrolyte: Gel electrolyte

✔ Cable: 1 m or 2 m

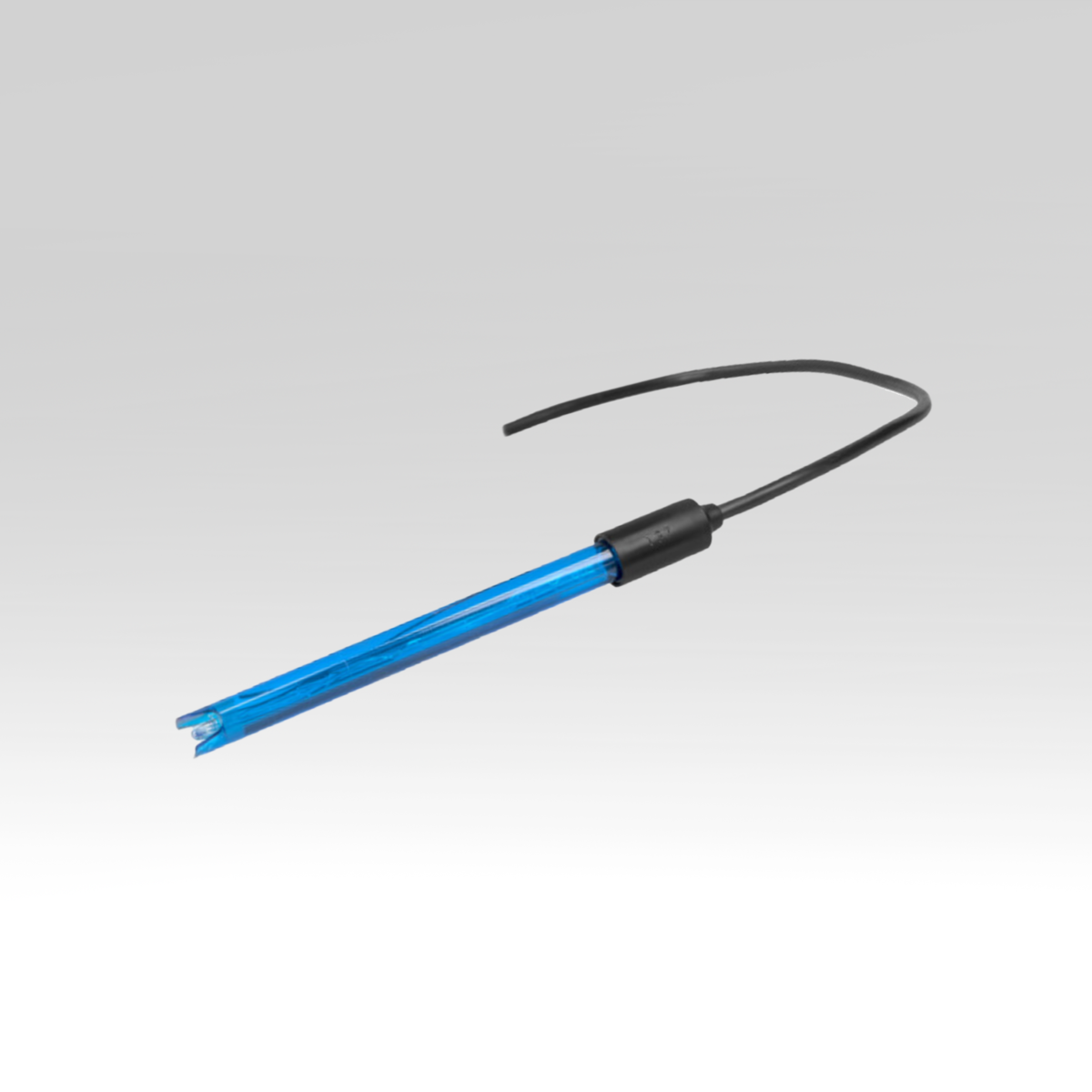

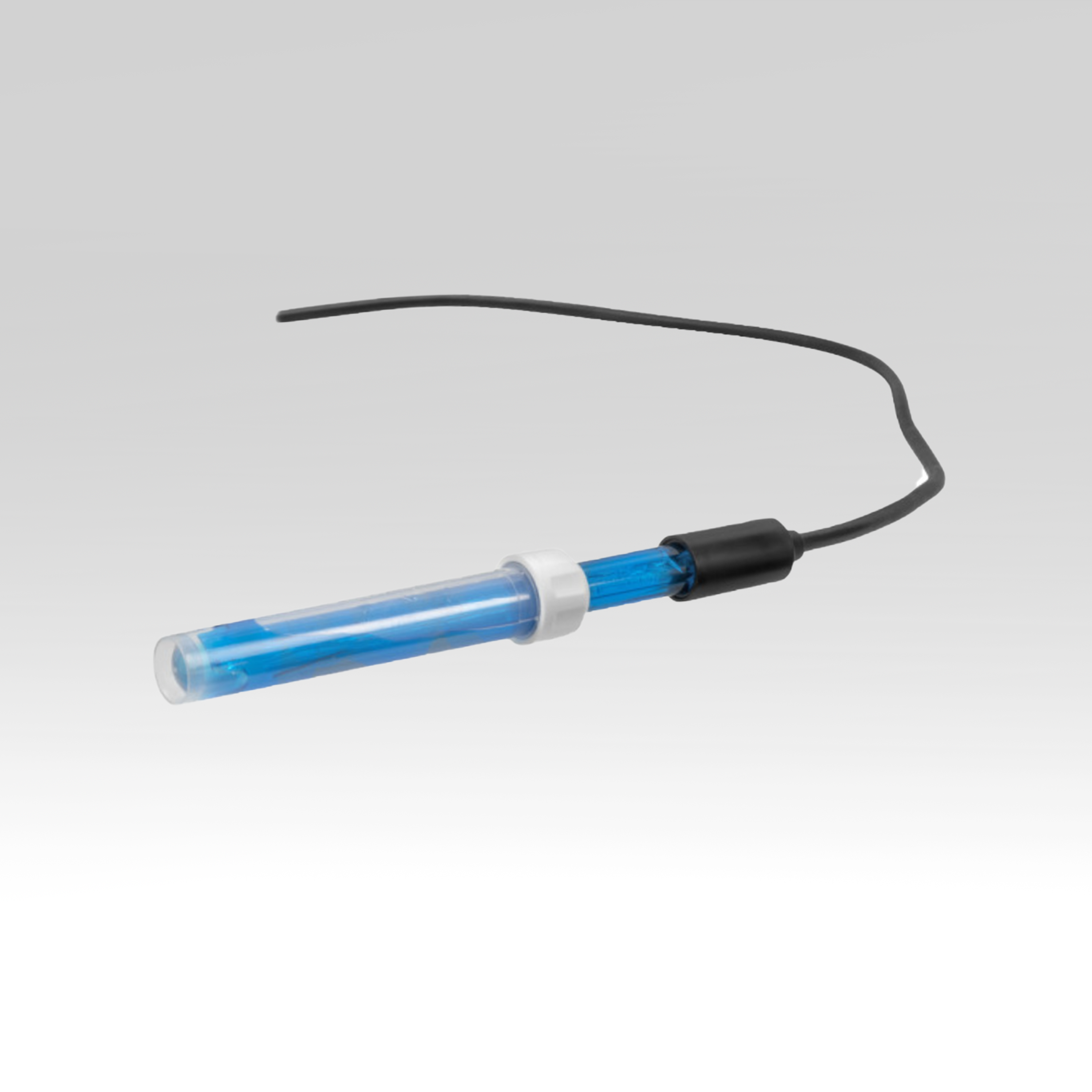

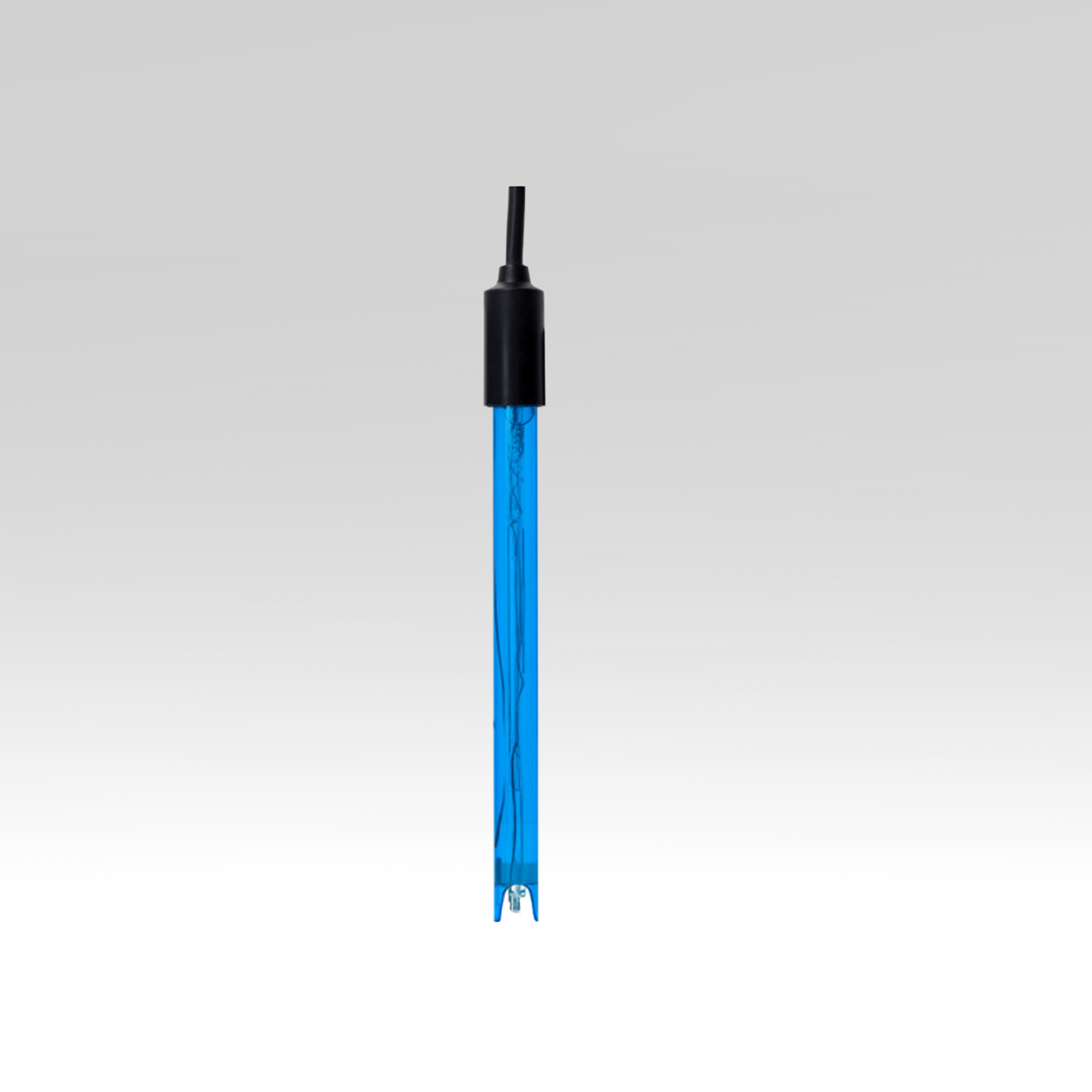

GE135 – waterproof pH-electrode incl Pt1000

The pH electrodes must be used only according to its intended purpose and under suitable conditions. The electrodes must be operated with suitable measuring devices and be calibrated before first use and afterwards in regular intervals. The safety requirements (see below) have to be observed. The life-time and accuracy of the electrodes depends on adequate selection as well as on proper handling. Please consider therefore the chapters “Choose the right electrode”, “Measuring and storing” and “Maintenance”.
Use the device carefully and according to its technical data (do not throw it, strike it, etc.). Protect the device from dirt. To be sure that there´s no risk arising due to misinterpretation of measured values, the operator must have further knowledge in case of doubt – the user is liable for any harm/damage resulting from misinterpretation due to insufficient knowledge.

The GE135 pH Electrode is a high-performance, combination-type sensor specially designed for high-temperature and continuous process applications. With a robust glass body, double junction reference system, and optional integrated temperature sensor, the GE135 delivers accurate, stable, and long-term pH measurements even in challenging industrial environments.

Features:

High Temperature Stability
Can operate in temperatures up to 130 °C, ideal for sterilization or CIP processes.
Double Junction Reference
Protects against contamination from harsh process media, extending sensor life.
Versatile Connectivity
Available with S7 head, BNC, or custom connectors for various instruments and controllers.
Robust Glass Construction
Withstands chemical exposure and mechanical stress in industrial conditions.
Optional Temperature Compensation
Built-in Pt100 / Pt1000 sensor enables accurate compensation in variable environments.
