Click to enlarge
Home Senseca Sensors Humidity DX310- Digital Humidity Temp Sensor
DX311- Digital Humidity Temp Sensor Login to see prices
Back to products
DX210 - Digital Differential Pressure Login to see prices
Senseca

DX310- Digital Humidity Temp Sensor

Login to see prices

Features:

✔  Interchangeable

✔  Low power

✔  Centesimal temperature and humidity resolution

✔  Direct mount on meter possible (skipping cable)

✔  Fast and accurate

✔  Multi-point relative humidity adjustment

✔  Optional DAkkS/ACCREDIA certification available

Add to wishlist
Categories: Humidity, Senseca, Sensors
Share:
  • Description
  • Technical Data
  • Downloads
Description

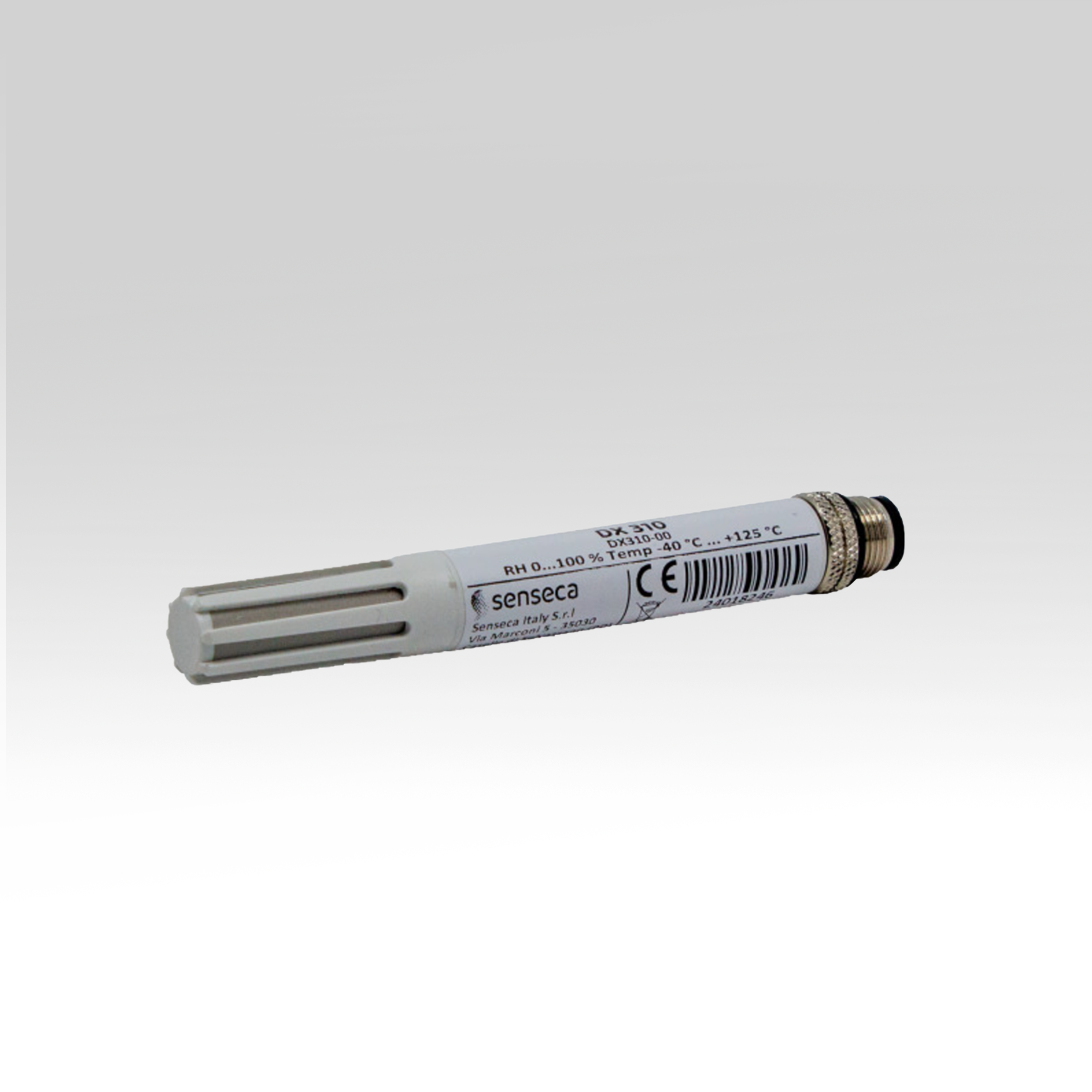

DX310 – Digital humidity / temperature sensor (e.g. for PRO D0x)

DX 310/311 is a digital combined temperature and relative humidity probe for the PRO D01 / PRO D05 handheld meters.
The probe supplies the following calculated quantities:

  • Dew point
  • Wet bulb temperature
  • Absolute and specific humidity
  • Mixing ratio
  • Specific enthalpy
  • Partial vapor pressure
  • Frost point temperature
  • Saturation vapor pressure above water and above ice

The probe is supplied factory-calibrated in multiple points for relative humidity, and it is ready to use.
The probe can be optionally supplied with a DAkkS/ACCREDIA calibration certificate.
The calibration data are stored in the probe, allowing for interchangeability without the need for recalibration.
Equipped with 4-pin M12 connector and 2, 5 or 10 m cable (only DX311).

Technical Data

Technical Data

Technical Specifications

Connection

4-pole M12

Sensor

RH: Capacitive Temperature: Pt100

Output

DX-Sensor-Interface

Power consumption

<1 mA typ

Operating conditions

-40 … +80 °C / 0 … 100 %RH

Material

Stem and protector cap: PBT

Weight

20 g approx.

Dimensions

Stem: Ø14 x 101 mm Overall: Ø14 x 114.8 mm

Downloads

Downloads

Product Brochures

➤ Technical Datasheets-DX310- Digital Humidity Temp Sensor
