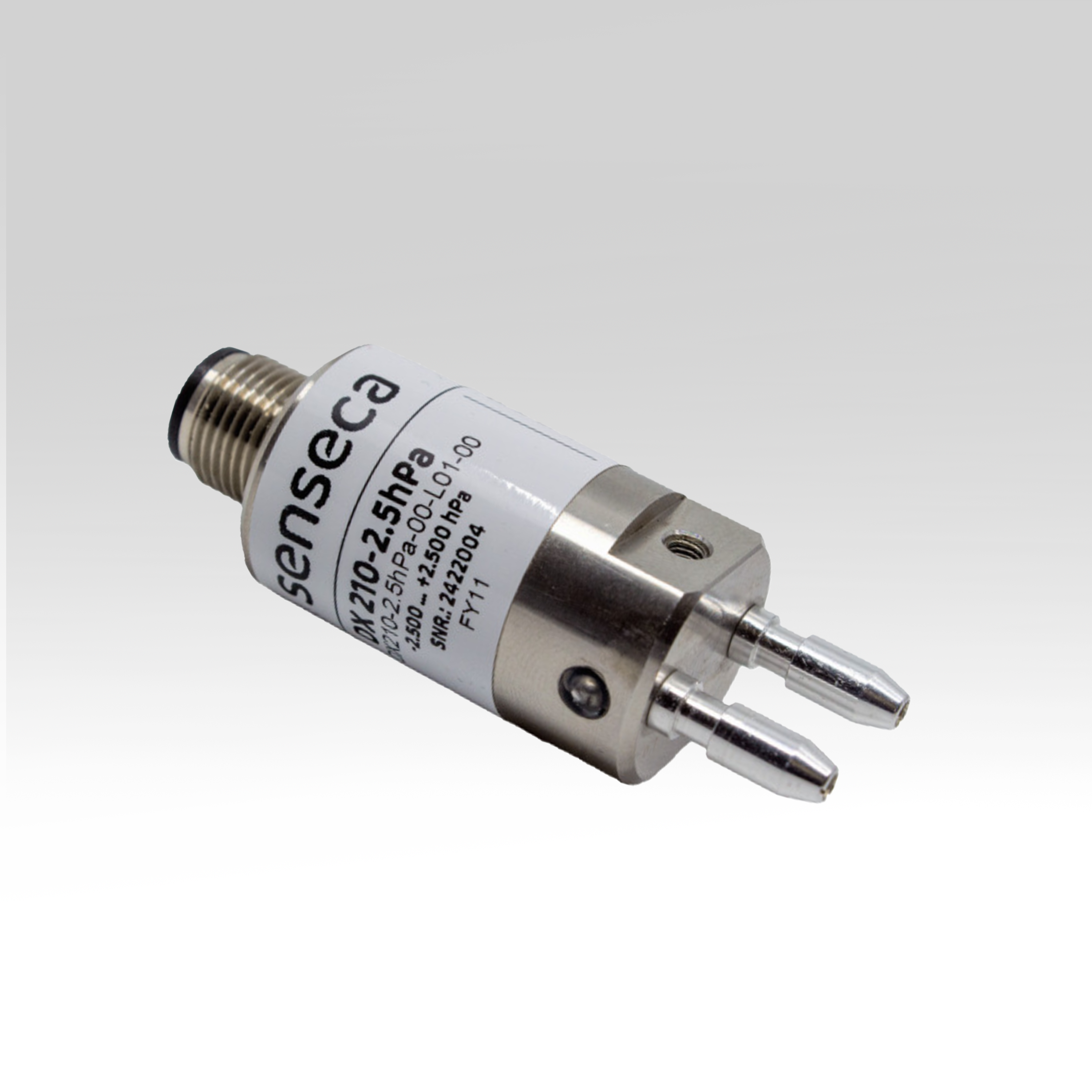

DX210 – Digital differential pressure sensor with hose connection for gases (e.g. for PRO D0x)
DX 210 and DX 240 are series of miniature digital absolute and differential pressure probes for the PRO D01 / PRO D05 handheld meters.
Different ranges available:
- DX 210-2.5hPa-00-L1-00: ±2.5 hPa differential
- DX 210-20hPa-00-L1-00: ±20 hPa differential
- DX 210-500hPa-00-L1-00: ±500 hPa differential
- DX 210-200kPa-00-L1-00: ±200 kPa differential
- DX 210-700kPa-00-L1-00: ±700 kPa differential
- DX 240-200kPa-00-L1-00: 0…200 kPa absolute
The measurement is temperature compensated for enhanced accuracy. The probes are supplied factory-calibrated, and they are ready to use. The probes can be optionally supplied with a DAkkS/ACCREDIA calibration certificate. The calibration data are stored in the probe, allowing for interchangeability without the need for recalibration. Equipped with 4-pin M12 connector.
The DX210 is a compact and precise digital differential pressure sensor designed for accurate measurement of pressure differences in gas systems. With digital output and robust construction, it is ideal for HVAC, cleanroom, filter monitoring, and industrial automation applications. Its low-pressure sensing capability ensures reliability in sensitive and demanding environments.
Key Features:
-
Differential Pressure Measurement: Accurately measures pressure difference between two points (positive, negative, or bidirectional).
-
Digital Output: Supports UART, I²C, or RS485 interface for easy integration with control systems and data loggers.
-
Compact Design: Space-saving housing suited for embedded and panel-mounted applications.
-
High Accuracy and Resolution: Provides precise readings even at very low pressure differentials.
-
Long-Term Stability: Stable output with minimal drift over time.
-
Low Power Operation: Ideal for portable and battery-operated systems.
-
Configurable Pressure Ranges: Available in multiple ranges based on application needs.
