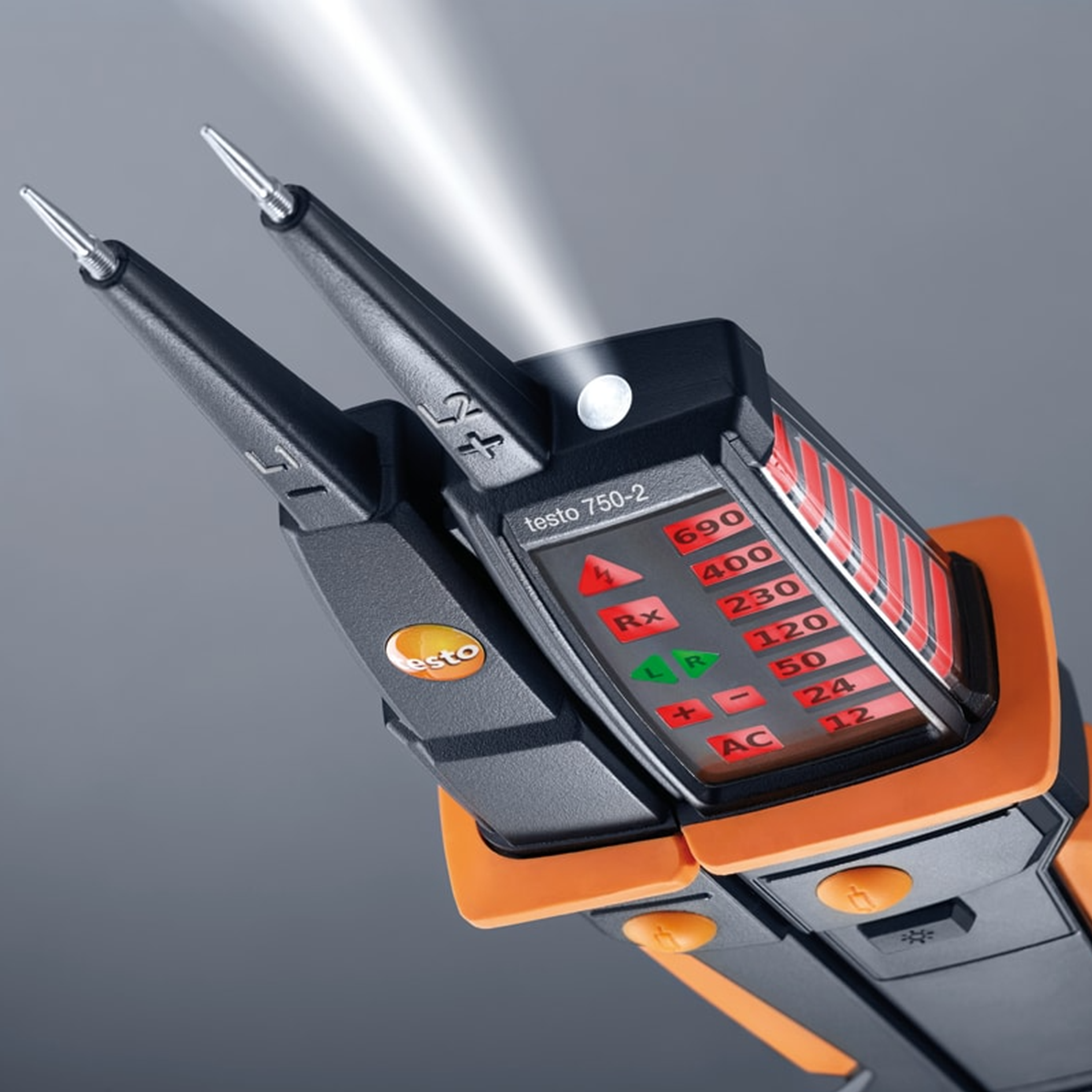

Voltage Tester-Testo 750-2


Features:

✔  Clear, patented all-round LED display

✔  In accordance with DIN EN 61243-3:2011 and CAT III

✔  With practical torch for measuring point illumination

✔  Including RC trigger function and vibrating load buttons

Thanks to the all-around LED display and special fiber-optic technology, the testo 750-2 voltage tester makes it simple and reliable to check the voltage or de-energization of electrical systems and equipment. It is also appropriate for single pole voltage testing in comparison to the Testo 750-1 to swiftly identify whether cables are live.

Categories: , Tag:
Description

With the testo 750-2 voltage tester, working is now more convenient than ever. With its enormous fiber-optic illuminators and crisp, patented all-around LED display, which can be easily seen from any angle, it plainly and distinctly displays the presence of electricity. The ergonomic grip and the deeply placed anti-slip ring make it easy to hold in your hand. Using the built-in torch, you can easily highlight dim measuring locations. The voltage tester is exceptionally durable thanks to its sturdy shell.

The Testo 750-2 voltage tester can be used as a continuity tester and to detect spinning magnetic fields in addition to evaluating voltage or de-energization on electrical circuits or systems. Additionally, it contains an RC trigger capability for testing circuit breakers that use residual current. Trigger testing cannot be accidentally performed because to vibrating load buttons.

The Testo 750-2 Voltage Tester is a dependable and versatile tool designed to meet the needs of electricians and technicians for safe and efficient voltage testing. It offers enhanced features and a robust design for use in diverse electrical environments.

Applications:

  • Residential Electrical Testing:
    • Verify voltage presence and continuity in home installations.
  • Commercial Systems Maintenance:
    • Diagnose faults and ensure safety in office and building electrical setups.
  • Industrial Equipment Testing:
    • Test phase rotation and voltage in three-phase machinery and systems.



Technical Data

Technical Data

Temperature - NTC

Measuring Range

-10 to +60 °C

Resolution

0.1 °C

Resolution

±0.5 °C

Temperature - TC Type K (NiCr-Ni)

Measuring Range

-200 to +1370 °C

Accuracy

See probe data

Resolution

0.1 °C

Humidity - Capacitive

Measuring range

0 to 100 %RH

Resolution

0.1 %RH

Accuracy

±2.5 %RH (5 to 95 %RH)

General technical data

Weight

195 g

Operating temperature

0 to +40 °C

Housing

ABS

Battery type

9V block battery, 6F22

Dimensions

182 x 64 x 40 mm

Battery life

70 h (without radio operation)

Storage temperature

-40 to +70 °C

Accessories/ Probes

Accessories/ Probes

0554-0660-product-set_prl

Digital temperature, humidity and air flow meter-testo 480

Order Number: 0554 0660

9V-Block-Battery-2000x1500_prl (1)

9V rech. battery for instrument

Order Number: 0515 0025

0515-0028-p-ac-oth-005249_prl

Lithium battery, button cell, type CR 2032

Order Number: 0515 0028

0554-0025-p-ac-oth-005276_prl

Recharger for 9V rechargeable battery

Order Number: 0554 0025

0554-0660-product-set_prl

Control and calibration kit for Testo humidity probes

Order Number: 0554 0660

testo-certificate-ISO-draft_prl (1)

ISO calibration certificate

Order Number: 0520 0006

Supply/ Delivery Scope

Supply/ Delivery Scope

  • testo 750-2 voltage tester, including batteries, measuring tip protector, measuring tip caps, calibration protocol and instruction manual.
