Digital Multimeter-Testo760-2
Features:
✔ Easy, reliable work thanks to automatic measurement parameter detection
✔ Current measurement in the µA range
✔ True root mean square measurement – TRMS
✔ Low-pass filter for accurate measurement results on frequency converter controlled motors
The all-purpose digital multimeter from Testo is the 760-2 for all significant electrical measuring applications. It provides the highest level of reliability for every application feasible because measurement parameters are automatically detected. This digital multimeter can also be used to measure current in the A range and calculate the real root mean square.
Digital Multimeter-Testo760-2
With the Testo 760-2 digital handheld multimeter, measuring electrical characteristics is now simpler and more accurate than ever. Unlike other multimeters, the testo 760-2 uses the socket assignment to automatically detect the proper measurement parameter, eliminating the possibility of any potentially hazardous incorrect settings.
Instead of a traditional dial, it is controlled by LED function keys. This indicates that using just one hand to operate the measuring device is simple. The readings are clearly displayed on the sizable, lighted display.
The most crucial capabilities for measuring current, voltage, and resistance are found in the Digital Multimeter-Testo760-2. The expanded measuring range makes it feasible to measure current strength in the A range as well. Additionally, test results for frequency converter-controlled motors are more precise thanks to the incorporated low-pass filter.
Along with measuring electrical properties, this multimeter can also monitor temperatures.
The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever before. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings.
It is not operated conventionally by a dial, but with illuminated function keys. This means you can easily control the measuring instrument with just one hand. The large, illuminated display shows the readings clearly.
The testo 760-2 digital multimeter has the most important functions for measuring current, voltage and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.
Temperatures can also be measured with this multimeter in addition to electrical parameters.
Technical Data
Temperature - TC Type K (NiCr-Ni)
Measuring range
-20 to +500 °C
Resolution
0.2 °C
Accuracy
±1 °C (0 to +100 °C)
DC voltage
Measuring range
1.0 to 600.0 V
Resolution
max. 1 mV
Accuracy
± (0.8 % of mv + 3 Digit)
AC voltage
Measuring range
1.0 mV to 600.0 V
Resolution
max. 1 mV
Accuracy
± (1 % of mv + 3 Digit)
DC current
Resolution
0.1 (clamp)
0.1 (measuring cables)
Measuring range
0.1 to 600.0 A (clamp)
0.1 to 600.0 μA (measuring cables)
Accuracy
± (2 % of mv + 5 Digit) (clamp)
± (2 % of mv + 5 Digit) (measuring cables)
AC current
Measuring range
0.1 to 600.0 A (clamp)
0.1 to 600.0 μA (measuring cables)
Display size
one-line
Resolution
0.1 A (clamp)
0.1 μA (measuring cables)
Accuracy
± (2 % of mv + 5 Digit) (clamp)
± (1.5 % of mv + 5 Digit) (measuring cables)
Resistance
Resolution
max. 0.01 Ohm
Measuring range
2 nF to 60.00 mF
Accuracy
± (1.5 % of mv + 5 Digit)
Capacitance
Measuring range
1.0 to 600.0 V
Resolution
max. 0.01 nF
Accuracy
± (0.8 % of mv + 3 Digit)
Frequency
Measuring range
0.01 Hz to 9999 kHz
Resolution
max. 0.1 Hz
Accuracy
± (1 % of mv + 1 Digit)
Active Power
Resolution
0.1 W
Measuring range
0.1 W to 600 kW
Accuracy
± (5 % of mv + 5 Digit)
Reactive Power
Measuring range
0.1 to 600.0 kvar
Accuracy
± (10 % of mv + 5 Digit)
Resolution
0.1 var
Apparent Power
Measuring range
0.1 VA to 600.0 kVA
Resolution
max. 0.1 W
Accuracy
± 1 Digit
Direct current DC Voltage
Measuring range
0.1 W to 600.0 kW
Resolution
max. 1 mV
Accuracy
± (0.8 % of mv + 3 Digit)
Power Factor
Measuring range
-1.00 to +1.00
Resolution
0.01
Accuracy
± (10 % of mv + 5 Digit)
General technical data
Operating humidity
0 to 80.0 %RH
Storage temperature
-15 to +60 °C
Weight
378 g
Dimensions
249 x 96 x 43 mm
Operating temperature
-10 to +50 °C
Connectable probes
1 x temperature probe (adapter required for type K thermocouples)
System requirements
requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour
Black
Storage temperature
-15 to +60 °C
Interface
2 measuring jacks
Standards
EN 61326-1; EN 61010-2-032; EN 61140
Battery type
3 AAA micro batteries
Display type
LCD
Display size
2 lines
Overvoltage Category
CAT IV 600V; CAT III 1000V
Authorizations
CSA; CE
Internal_resistance
11 MOhm (AC / DC)
Instrument Measurement Functions
Diode test
yes
Continuity testing
yes
Display ligthing
yes
Hold
yes
MinMax
yes
Power Measurement
yes
Temperature measurement with adapter
yes
True RMS
yes
Bluetooth
yes
Display (counts)
6,000
μA current measuring range
yes
APPLICATIONS
Ideal for measuring all important electrical parameters
- Automatic detection and selection of measurement parameters, current measurement in the µA range, true root mean square (TRMS) measurement, low pass filter, operation via function keys, large illuminated display, temperature adapter
Overview of applications

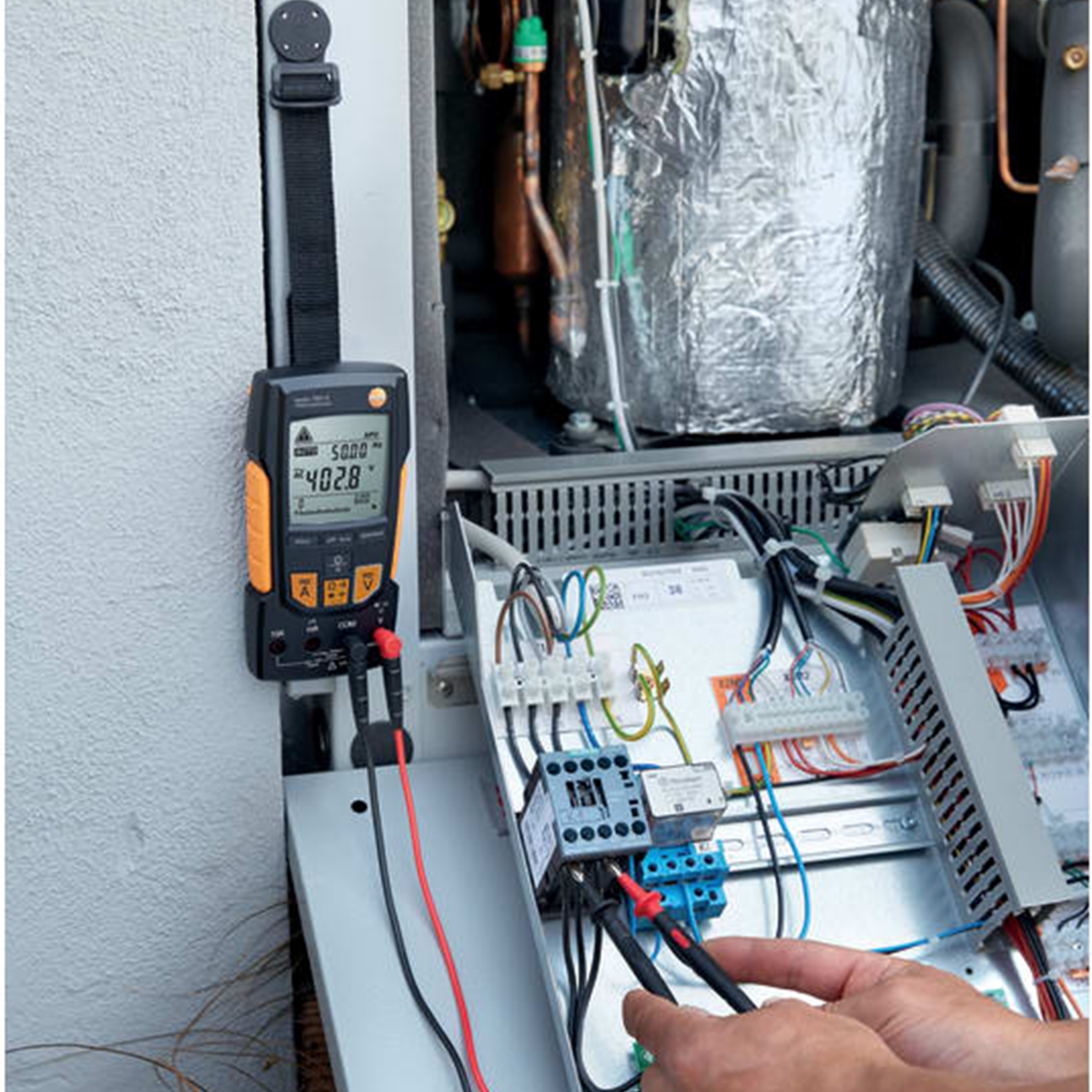

- Testing voltage supply in live wires, current measurement in the lower measuring range, testing voltage supply for frequency-controlled motors, measuring the ionization flow of heating systems, continuity tests on switching components, resistance measurement of sensors or motor windings, easy temperature checking
Downloads
Product Brochures
➤ Datasheet testo 760-2 – Digital multimeter
Manuals
➤ Instruction manual testo 760-2 – Digital multimeter
Supply/ Delivery Scope
Testo 760-2 TRMS multimeter, including batteries, 1 set of measuring cables (0590 0010), 1 x adapter for thermocouples type K and instruction manual.
